HellermannTyton 553-50009 | Shrinktrak Labels, 1-Sided, Unslit, 0.1...
Description
Description

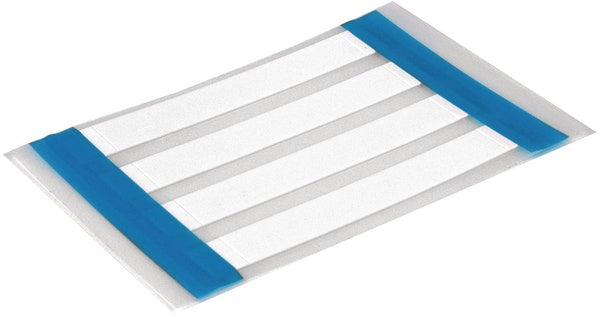

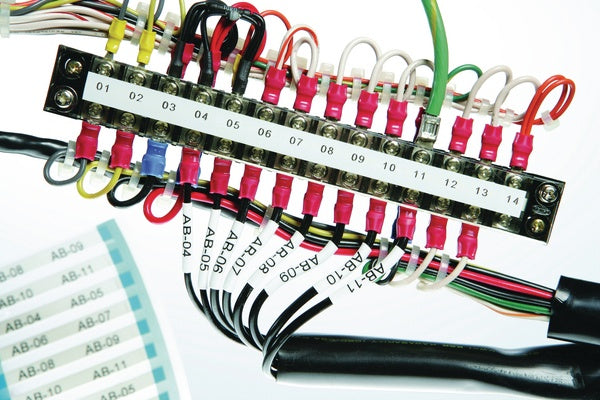

HellermannTyton’s ShrinkTrak heat shrinkable markers make it easy to mark wire, cable and other components. The military approved heat shrink tubing is flattened and assembled in a ladder style carrier system for easy printing using a thermal transfer printer. The ladder system creates a kit of markers that can be sorted, removed and applied in any order thus saving time, labor and speeding production.
HellermannTyton's ShrinkTrak heat shrinkable markers make it easy to mark wire, cable and other components. The military approved heat shrink tubing is flattened and assembled in a ladder style carrier system for easy printing using a thermal transfer printer. The ladder system creates a kit of markers that can be sorted, removed and applied in any order thus saving time, labor and speeding production.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 553-50009 - Features
- Slide Slit and optional center slits for easy wire insertion.
- Smooth surface for clean and legible printing.
- Supplied on a ladder style carrier so that markers can be kitted after printing.
- A 3:1 shrink ratio means fewer skews as each marker covers awider range of wire diameters.
- Tamper resistant covers with hidden latch provide security while allowing quick entry for cable maintenance.
- PVC construction is lightweight, durable and more affordable than metallic raceway systems.
- Flexible hinge is designed to reduce stress cracking and discoloration from repeated opening and closing.
- Foam tape backing with rubber based adhesive conforms to any flat surface to assist with temporary positioning and mounting.
- Systems and fittings are available in white, office white and ivory to coordinate with a variety of décor.
- Fittings incorporate a minimum 1" bend radius to meet TIA/EIA 568-B and 569-A standards.
Specifications
Specifications
HellermannTyton - 553-50009 - Product Categories
- OEM
- Cable Management and Electrical
- Cable Management
- Identification
- Labels
- Heat Shrinkable Labels
HellermannTyton - 553-50009 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Approvals | None |
| Category | Labels |
| Color | White |
| Rohs Compliant | Yes |
| Type | Cable Marker Tape |
| UNSPSC Code | 39131500 |
HellermannTyton - 553-50009 - Base Data
| Article Number | 553-50009 |
|---|---|
| Type | HST4.8-1.6WH |
| Color | White (WH) |
| Quantity Per | box |
| Short Description | ShrinkTrak Labels, 1-Sided, Unslit, 0.187" (4.74mm), PO-X, White, 250/box |
| Global Part Name | HST4.8-1.6WH-PO-X-WH |
HellermannTyton - 553-50009 - Product Dimensions
| Variant | Thin-Wall |
|---|---|
| Width W (Imperial) | 1.9 |
| Width W (Metric) | 48.26 |
| Thickness T (Imperial) | 0.003 |
| Thickness T (Metric) | 0.0762 |
| Height H (Imperial) | 0.312 |
| Height H (Metric) | 7.92 |
| Width of Liner (Metric) | 76.2 |
| Width of Liner (Imperial) | 3 |
| Outside Diameter OD (Imperial) | 0.187 |
| Outside Diameter OD (Metric) | 4.74 |
| Outside Diameter Max (Imperial) | 0.187 |
| Outside Diameter Max (Metric) | 4.74 |
| Wall Thickness WT (Imperial) | 0.026 |
| Wall Thickness WT (Metric) | 0.66 |
HellermannTyton - 553-50009 - Logistic & Packaging
| Package Quantity (Imperial) | 250 |
|---|---|
| Package Quantity (Metric) | 250 |
| Customs Number | 3.92E+09 |
| Labels per Column | 1 |
| Labels per Row | 1 |
HellermannTyton - 553-50009 - Materials & Specifications
| Material | Polyolefin, cross-linked (PO-X) |
|---|---|
| Material Shortcut | PO-X |
| Flammability | UL 224 VW-1 |
| Halogen Free | No |
| UV Resistant (Yes/No) | No |
| Operating Temperature | -67°F to +275°F (-55°C to +135°C) |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
| Certification/Specification | UL 224 125 °C 600V VW-1SAE - AMS - DTL-23053/5 Class 1 and 3SAE - AS81531 |
