HellermannTyton 596-00413 | Foam Nameplate, 1.25" X 1.25"...
Description
Description

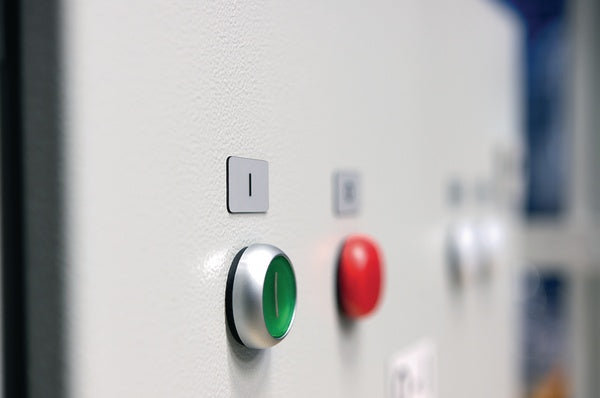

Foam Nameplate labels are designed to replace plastic and metal engraved phenolic plates commonly found on electrical control panels. The labels provide the look and feel of a plastic engraved or metal plate, but at a fraction of the cost. Labels can b e printed using HellermannTyton Tagprint Pro labeling software and can include printed logos, barcodes and text of almost any size and type.
Foam Nameplate labels are designed to replace plastic and metal engraved phenolic plates commonly found on electrical control panels. The labels provide the look and feel of a plastic engraved or metal plate, but at a fraction of the cost. Labels can be printed using HellermannTyton Tagprint Pro labeling software and can include printed logos, barcodes and text of almost any size and type.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 596-00413 - Features
- Foam Nameplate labels are less costly than plastic or metal engraved plates, saving material costs.
- Foam Nameplate labels conform to textured and other low energy surfaces ensuring the labels stay in place for the life of the product.
- Labels are UV and chemical resistant for long life in an industrial environment.
- Foam nameplate labels are printable using a thermal transfer printer for complete control and on-demand creation of labels.
- Tamper resistant covers with hidden latch provide security while allowing quick entry for cable maintenance.
- PVC construction is lightweight, durable and more affordable than metallic raceway systems.
- Flexible hinge designed to reduce stress cracking and discoloration from repeated opening and closing.
- Systems and fittings are available in white, office white and ivory to coordinate with a variety of décor.
- Fittings incorporate a minimum 1” bend radius to meet TIA/EIA 568-B and 569-A standards.
- TSRP power rated surface raceway systems have an enhanced “channel and lug” mating design that provides a tighter, more secure fit between raceway lengths and fittings, enabling the system to be UL Listed for power up to 600 volts and meet UL5A and CSA 22.2.
Specifications
Specifications
HellermannTyton - 596-00413 - Product Categories
- OEM
- Cable Management and Electrical
- Cable Management
- Identification
- Labels
- Foam Nameplate Labels
HellermannTyton - 596-00413 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Approvals | None |
| Category | Labels |
| Color | Black |
| Material | Plastic |
| UNSPSC Code | 39131500 |
HellermannTyton - 596-00413 - Base Data
| Article Number | 596-00413 |
|---|---|
| Type | NPLH31X31BK22.5 |
| Color | Black (BK) |
| Quantity Per | roll |

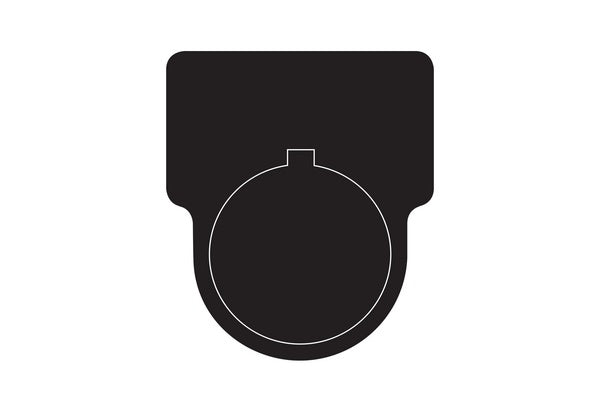

| Short Description | Foam Nameplate, 1.25" x 1.25" Button Label With .88" Hole, PET, Black, 250/roll |
| Global Part Name | NPLH31X31BK22.5-518-BK |

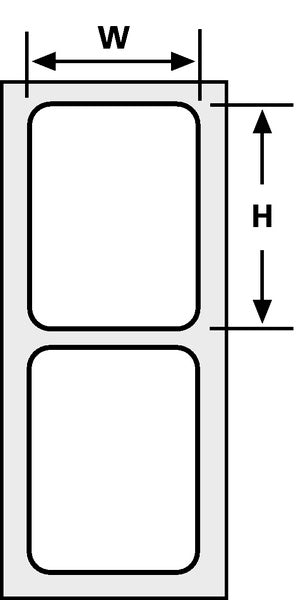

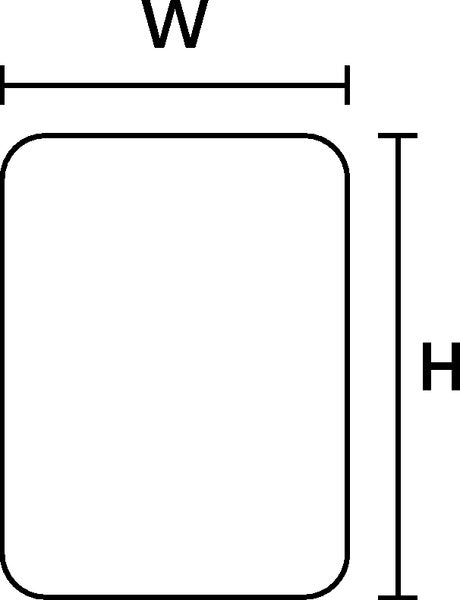

HellermannTyton - 596-00413 - Product Dimensions
| Width W (Imperial) | 1.25 |
|---|---|
| Width W (Metric) | 31.7 |
| Thickness T (Metric) | 64 |
| Height H (Imperial) | 1.25 |
| Height H (Metric) | 31.7 |
| Width of Liner (Metric) | 38.1 |
| Width of Liner (Imperial) | 1.5 |
| Mounting Hole Diameter D (Imperial) | 0.88 |
| Mounting Hole Diameter D (Metric) | 22.35 mm |
| Mounting Hole Diameter D Max (Metric) | 22.35 |
HellermannTyton - 596-00413 - Logistic & Packaging
| Package Quantity (Imperial) | 250 |
|---|---|
| Package Quantity (Metric) | 250 |
| Customs Number | 3.92E+09 |
| Labels per Column | 1 |
| Labels per Row | 1 |
HellermannTyton - 596-00413 - Materials & Specifications
| Material | Type 518, Polyester Foam (518) |
|---|---|
| Material Shortcut | 518 |
| Adhesive | Acrylate with base of acrylic foam |
| Halogen Free | Yes |
| UV Resistant (Yes/No) | No |
| Adhesive Operating Temperature | -40°F to +176°F (-40°C to +80°C) |
| Operating Temperature | -40°F to +176°F (-40°C to +80°C) |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
