HellermannTyton 596-00631 | Thermal Transfer Labels, Self-Laminatin...
Description
Description

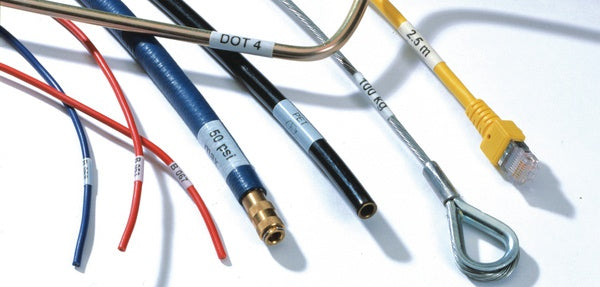

HellermannTyton thermal transfer self-laminating labels are a conformable vinyl film with a white printable surface followed by a clear tail that laminates the printed text when applied to a wire or cable. The labels are UL recognized for indoor and ou tdoor use with an aggressive acrylic adhesive that allows the label to bond to large and small diameter wires.
HellermannTyton thermal transfer self-laminating labels are a conformable vinyl film with a white printable surface followed by a clear tail that laminates the printed text when applied to a wire or cable. The labels are UL recognized for indoor and outdoor use with an aggressive acrylic adhesive that allows the label to bond to large and small diameter wires.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 596-00631 - Features
- HellermannTyton Self-Laminating Labels come on rolls on a standard 3" core for easy loading into a printer or caddy.
- Labels are conformable so that they can bend around small gauge wires and tight bends without coming loose over time.
- Labels are UL recognized for indoor and outdoor use to expand application options.
- HellermannTyton thermal transfer labels work in any thermal transfer printer so that the use always has options to get labels printed without being locked into a single vendor.
- Tamper resistant covers with hidden latch provide security while allowing quick entry for cable maintenance.
- PVC construction is lightweight, durable and more affordable than metallic raceway systems.
- Flexible hinge designed to reduce stress cracking and discoloration from repeated opening and closing.
- Systems and fittings are available in white, office white and ivory to coordinate with a variety of décor.
- Fittings incorporate a minimum 1” bend radius to meet TIA/EIA 568-B and 569-A standards.
- TSRP power rated surface raceway systems have an enhanced “channel and lug” mating design that provides a tighter, more secure fit between raceway lengths and fittings, enabling the system to be UL Listed for power up to 600 volts and meet UL5A and CSA 22.2.
Specifications
Specifications
HellermannTyton - 596-00631 - Product Categories
- Hardware
- Tools and Supplies
- Supplies
- Identification
- Labels
- Labels for Thermal Transfer Printers
HellermannTyton - 596-00631 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Label Types | Vinyl |
| Type | Labels |
| UNSPSC Code | 55120000 |
HellermannTyton - 596-00631 - Base Data
| Article Number | 596-00631 |
|---|---|
| Type | TAG3T1-100B |
| Color | White (WH) |
| Quantity Per | roll |
| Short Description | Thermal Transfer Labels, Self-Laminating, 1.0" x 1.0" x 3.75", 1 Across, VL, White, 1000/roll |
| Global Part Name | TAG3T1-100B-100B-WH |

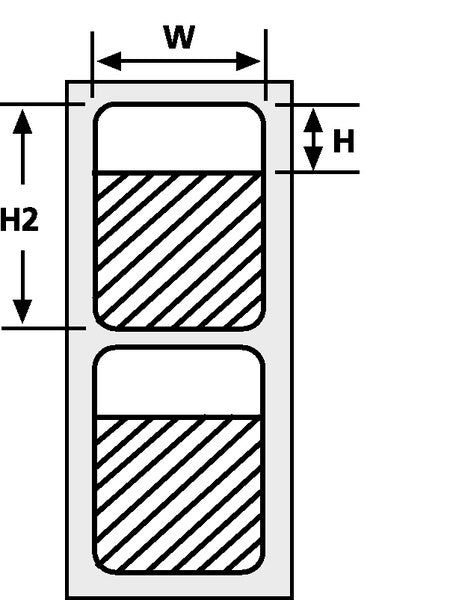

HellermannTyton - 596-00631 - Product Dimensions
| Width W (Imperial) | 1 |
|---|---|
| Width W (Metric) | 25.4 |
| Bundle Diameter Min (Imperial) | 0.39 |
| Bundle Diameter Min (Metric) | 10 |
| Bundle Diameter Max (Imperial) | 0.87 |
| Bundle Diameter Max (Metric) | 22.2 |
| Thickness T (Metric) | 25 |
| Width of Liner (Metric) | 28.57 |
| Width of Liner (Imperial) | 1.125 |
HellermannTyton - 596-00631 - Logistic & Packaging
| Package Quantity (Imperial) | 1000 |
|---|---|
| Package Quantity (Metric) | 1000 |
| Customs Number | 3.92E+09 |
| Labels per Row | 1 |
HellermannTyton - 596-00631 - Materials & Specifications
| Material | Type 100B (100B) |
|---|---|
| Material Shortcut | 100B |
| Adhesive | Acrylic |
| Halogen Free | No |
| UV Resistant (Yes/No) | No |
| Adhesive Operating Temperature | -40°F to +194°F (-40°C to +90°C) |
| Operating Temperature | -40°F to +194°F (-40°C to +90°C) |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
| Certification/Specification | UL-Recognized |
| UL Recognized (US) | Yes |
| UL Recognized (US and Canada) | Yes |
