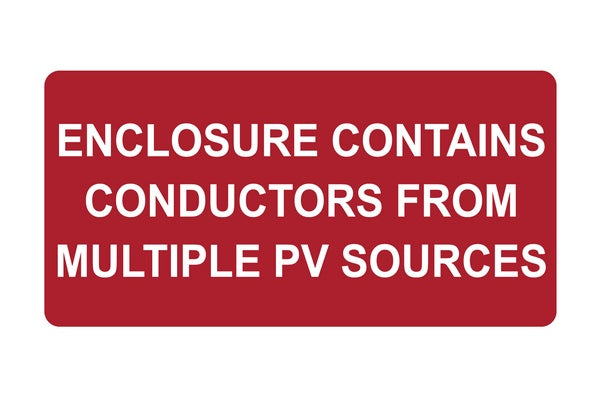

HellermannTyton 596-00748 | Solar Label, ENCLOSURE CONTAINS...PV SOURCES, 4.0" x 2.0", VL, Red, 50/roll
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
HellermannTyton 596-00748 | Solar Label, ENCLOSURE CONTAINS...PV SO...
Description
Description
HellermannTyton pre-printed Solar Installation labels are designed to meet the requirements of the 2014 National Electrical Code (NEC 2014) and the 2012 International Fire Code (IFC 2012) as well as being acceptable to the Authority Having Jurisdiction (AHJ). Labels are made with durable UV stable materials and adhesives that are designed to stick to both baked enamel and powder coat surfaces. Where applicable, labels are made using reflective materials for first responder safety. Some pre-printed l abels are printable using a thermal transfer printer when variable voltage or series data must be printed and displayed.
Many times common solar label designs are specified even though they might not be required by code. HellermannTyton offers a selection of some of the most commonly requested labels for use on solar installations.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 596-00748 - Features
- Made with UV stable inks and materials for durability and weather resistance.
- The labels are supplied with aggressive adhesive to ensure long life.
- Solar Installation labels meet NEC & IFC standards for printed text, character height, color and outdoor UV stability to pass inspections.
- Integrated Sealing Technology includes conduit insert seal and high-performance face-sealing washer for ease of use and durability.
- True one-piece component for fast Snap-On application reduces installation time and costs by eliminating the need to thread fittings onto conduits.
- All-around "teeth" attach firmly to corrugated conduit and deliver a high extraction force.
- Elbow features a smooth bore to ease cable installation.
- PA66 nylon material has high resistance to salts, oils, weak acids, and solvents.
- Integrated design delivers IP66 + IP67 + IP68 + IP69 ingress protection against moisture and dirt.
Specifications
Specifications
HellermannTyton - 596-00748 - Product Categories
- Hardware
- Tools and Supplies
- Supplies
- Identification
- Labels
- Solar Identification
HellermannTyton - 596-00748 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Type | Identification Tag |
| UNSPSC Code | 55120000 |
HellermannTyton - 596-00748 - Base Data
| Article Number | 596-00748 |
|---|---|
| Type | ECCMPV |
| Color | Red (RD) |
| Quantity Per | roll |
| Short Description | Solar Label, Enclosure Contains...PV Sources, 2020 Code, 4.0" x 2.0", VL, Red, 50/roll |
| Global Part Name | ECCMPV-V-RD |

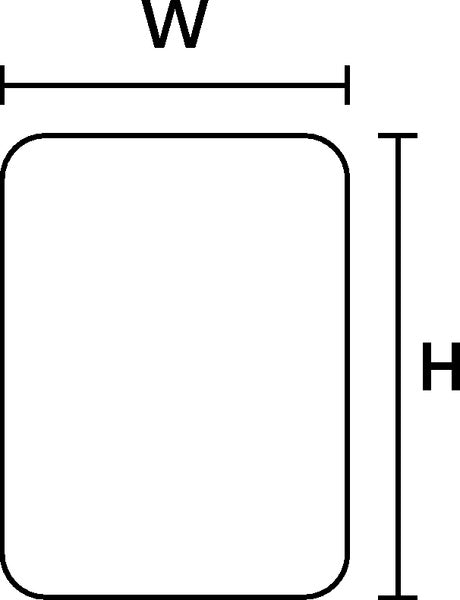

HellermannTyton - 596-00748 - Product Dimensions
| Width W (Imperial) | 4 |
|---|---|
| Width W (Metric) | 101.6 |
| Thickness T (Imperial) | 0.0025 |
| Thickness T (Metric) | 64 |
| Height H (Imperial) | 2 |
| Height H (Metric) | 50.8 |
| Width of Liner (Metric) | 104.64 |
| Width of Liner (Imperial) | 4.12 |
HellermannTyton - 596-00748 - Logistic & Packaging
| Package Quantity (Imperial) | 50 |
|---|---|
| Package Quantity (Metric) | 50 |
| Customs Number | 3.92E+09 |
| Labels per Column | 1 |
| Labels per Row | 1 |
HellermannTyton - 596-00748 - Materials & Specifications
| Material | Vinyl (V) |
|---|---|
| Material Shortcut | V |
| Adhesive | Acrylic |
| Halogen Free | No |
| UV Resistant (Yes/No) | No |
| Adhesive Operating Temperature | -40°F to +174°F (-40°C to +79°C) |
| Operating Temperature | -40°F to +174°F (-40°C to +79°C) |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
| Certification/Specification | NEC2017NEC2011NEC2014NEC2020 |
| Warranty (US) | Yes |
| UL Recognized (US) | Yes |
