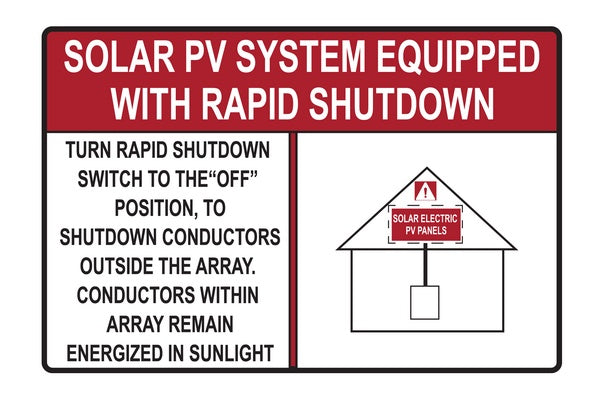

HellermannTyton 596-00889 | Solar Label, Reflective, 2017 Code, SOLAR PV SYSTEM SHUTDOWN, 6.0" x 4.0", VL, Red, 10/pkg
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
HellermannTyton 596-00889 | Solar Label, Reflective, 2017 Code, SOL...
Description
Description
HellermannTyton Pre-Printed Solar Installation Labels are designed to meet the requirements of the National Electrical Code (NEC) and the International Fire Code (IFC) as well as being acceptable to the Authority Having Jurisdiction (AHJ). Labels are m ade with durable UV-stable materials and adhesives that are designed to stick to both baked enamel and powder coat surfaces. Where applicable, labels are made using reflective materials for first responder safety. Some pre-printed labels are printable using a thermal transfer printer when variable voltage or series data must be printed and displayed.
HellermannTyton makes it easier than ever for solar installers to meet PVlabeling codes. Solar Label Convenience Packs allow installers to quicklyand economically purchase high quality preprinted NEC code-compliantsolar installation labels. Packaged in 10-count quantities to meet the needsof smaller scale solar installations and independent contractors, SolarLabel Convenience Packs are available in HellermannTyton’s most popularpreprinted NEC code-compliant solar label formats. Each Solar Label Convenience Pack contains 10 solar installation labels. Choose from a variety of regular and reflective preprinted labels. For enhanced durability, clear laminate overlay labels are also available in a convenience pack.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 596-00889 - Features
- Made with UV-stable inks and materials for durability and weather resistance.
- Reflective properties to meet applicable NEC code requirements for reflective identification.
- Supplied with an aggressive adhesive to ensure long life.
- Meets NEC & IFC standrds for printed text, character height, color and outdoor UV stability to pass inspections.
- Rotated Offset Fir Tree Cable Ties route and position bundles away from a mounting hole to protect them from rubbing, heat or obstructions.
- All-in-one bundling and fastening solution reduces costs and assembly time.
- Anti-rotational oval fastener forces bundle to travel in intended direction.
Specifications
Specifications
HellermannTyton - 596-00889 - Product Categories
- Hardware
- Tools and Supplies
- Supplies
- Identification
- Labels
- Solar Identification
HellermannTyton - 596-00889 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Type | Identification Tag |
| UNSPSC Code | 55120000 |
HellermannTyton - 596-00889 - Base Data
| Article Number | 596-00889 |
|---|---|
| Type | RSDRD1710 |
| Color | Red (RD) |
| Quantity Per | pack |
| Short Description | Solar Label, Reflective, SOLAR PV SYSTEM…SHUTDOWN, 6.0" x 4.0", VL, Red, 10/pkg |
| Global Part Name | RSDRD1710-505/281-RD |

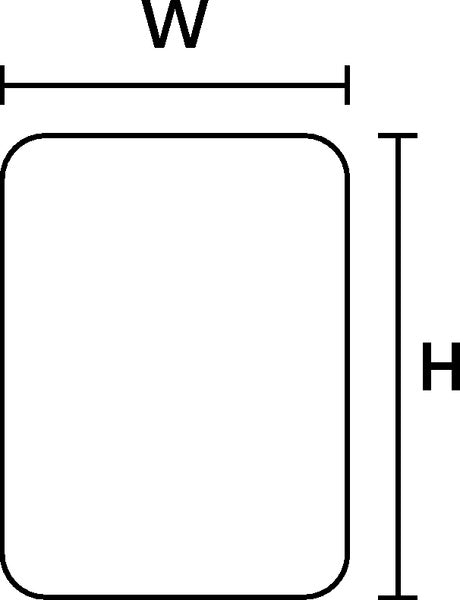

HellermannTyton - 596-00889 - Product Dimensions
| Length L (Imperial) | 4 |
|---|---|
| Length L (Metric) | 101.6 |
| Width W (Imperial) | 6 |
| Width W (Metric) | 152.4 |
| Thickness T (Imperial) | 0.0025 |
| Thickness T (Metric) | 64 |
| Height H (Imperial) | 4 |
| Height H (Metric) | 101.6 |
HellermannTyton - 596-00889 - Logistic & Packaging
| Package Quantity (Imperial) | 10 |
|---|---|
| Package Quantity (Metric) | 10 |
| Customs Number | 3.92E+09 |
| Labels per Column | 1 |
| Labels per Row | 1 |
HellermannTyton - 596-00889 - Materials & Specifications
| Material | Type 505/281, UV-stabilised, reflective vinyl with clear polyester laminate (505/281) |
|---|---|
| Material Shortcut | 505/281 |
| Adhesive | Acrylic |
| Halogen Free | No |
| UV Resistant (Yes/No) | Yes |
| Adhesive Operating Temperature | -40°F to +174°F (-40°C to +79°C) |
| Operating Temperature | -40°F to +174°F (-40°C to +79°C) |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
| Certification/Specification | UL 969NEC2017 |
| Warranty (US) | Yes |
| UL Recognized (US) | Yes |
