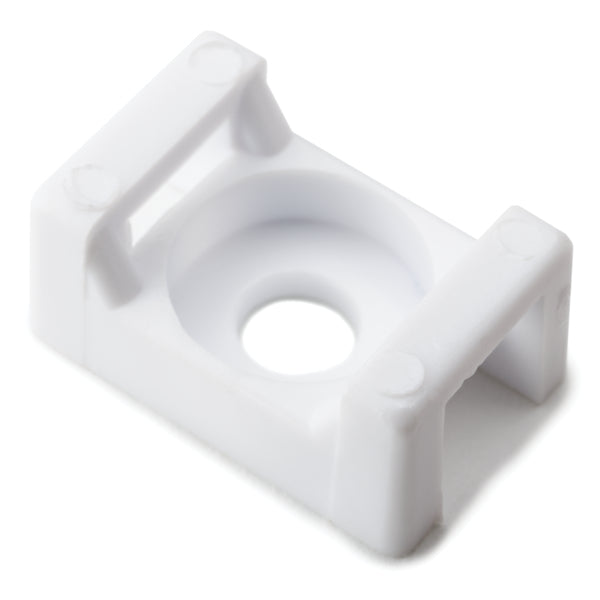

HellermannTyton CTM010M4 | Cable Tie Anchor Mount, 0.58" X .37", 0.15" Hole Dia, 0.2" Max Tie Width, Pa66, White, 1000/Pkg
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
HellermannTyton CTM010M4 | Cable Tie Anchor Mount, 0.58" X .37...
Description
Description
HellermannTyton cable tie mounts are designed for use with 18 through 120 pound cable ties to provide stability when securing bundles. The mounts are installed quick and easy by securing a single screw.
Designed specifically for holding heavier cable bundles these mounting bases can be used in many industries from agriculture to truck manufacture. They offer a very secure fixing and can be used with a wide variety of heavy duty cable ties up to 8.3 mm width.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - CTM010M4 - Features
- Designed for use with 18 through 50 pound cable ties to provide stability when securing bundles.
- Secures with a single screw providing quick installation.
Specifications
Specifications
HellermannTyton - CTM010M4 - Product Categories
- Hardware
- Cable Management
- Tubing
- Bundling & Securing
- Cable Tie Mounts
- Screw Mounting Bases
HellermannTyton - CTM010M4 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Decimal | .200 Inch |
| Dual | No |
| Heat Shrink | No Is Not Shrink Tubing |
| UNSPSC Code | 39130000 |
HellermannTyton - CTM010M4 - Base Data
| Article Number | 151-30305 |
|---|---|
| Type | CTM0 |
| Color | White (WH) |
| Quantity Per | bag |
| Short Description | Cable Tie Anchor Mount, 0.58" x .37", 0.15" Hole Dia, 0.2" Max Tie Width, PA66, White, 1000/pkg |
| Global Part Name | CTM0-PA66-WH |
HellermannTyton - CTM010M4 - Product Dimensions
| Length L (Imperial) | 0.58 |
|---|---|
| Length L (Metric) | 14.7 |
| Fixation Method | Screw Mounting and Rivet |
| Width W (Imperial) | 0.37 |
| Width W (Metric) | 9.4 |
| Cable Ties | T18 - T50 |
| Height H (Imperial) | 0.27 |
| Height H (Metric) | 6.9 |
| Cable Tie Width Max (Imperial) | 0.2 |
| Cable Tie Width Max (Metric) | 5 |
| Mounting Hole Diameter D (Imperial) | 0.15 |
| Mounting Hole Diameter D (Metric) | 3.8 mm |
| Mounting Hole Diameter D Max (Metric) | 3.8 |
HellermannTyton - CTM010M4 - Logistic & Packaging
| Package Quantity (Imperial) | 1000 |
|---|---|
| Package Quantity (Metric) | 1000 |
| Customs Number | 3.93E+09 |
HellermannTyton - CTM010M4 - Materials & Specifications
| Material | Polyamide 6.6 (PA66) |
|---|---|
| Material Shortcut | PA66 |
| Flammability | UL 94 V-2 |
| UV Resistant (Yes/No) | No |
| Operating Temperature | -40°F to +185°F (-40°C to +85°C) |
| Reach Compliant (Article 33) | No |
| ROHS Compliant | Yes |
| Certification/Specification | UL-ZODZ2.E64139 |
| UL Recognized (US) | Yes |
| UL Recognized (US and Canada) | Yes |
