HellermannTyton CTT60R6M4 | Clamp Tie, 8" Long, 60Lb Tensile S...
Description
Description
The 360 Degree compression ties were designed with underside clamping rails to allow for optimal surface contact and complete circumferential compression around the bundle. The bent tail design allows quick and simple installations by hand. For high vo lume applications, tensioning tools are available to ensure consistent and safe installation.

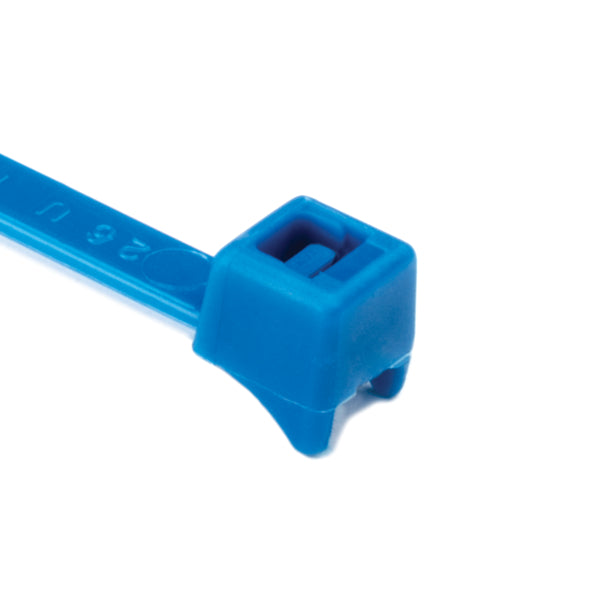

HellermannTyton clamp tie has triangular shaped tabs extending beneath the head for optimal surface contact and complete circumferential compression to 360 degrees. The bent tail design allows quick and simple installations by hand. The clamps are recommended for soft rubber hose applications including fuel, water, and air vacuum lines.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - CTT60R6M4 - Features
- Head design contains clamping rails to provide full circumferential compression around bundles.
- Bent tail allows for quick insertion into head.
- Heat stabilized cable ties provide excellent resistance to high heat exposures.
- Head design contains clamping rails to provide full circumferential compression around bundles.
- Bent tail allows for quick insertion into head.
Specifications
Specifications
HellermannTyton - CTT60R6M4 - Product Categories
- Hardware
- Tools and Supplies
- Supplies
- Bundling & Securing
- Cable Ties
- Clamp Ties
HellermannTyton - CTT60R6M4 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Cable Tie Diameter | 8" |
| Type | Clip - Cable, Self Adhesive |
| UNSPSC Code | 39121703 |
HellermannTyton - CTT60R6M4 - Base Data
| Article Number | 112-52103 |
|---|---|
| Type | CTT60R |
| Color | Blue (BU) |
| Quantity Per | bag |
| Short Description | Clamp Tie, 8" Long, 60lb Tensile Strength, PA66, Blue, 1000/pkg |
| Global Part Name | CTT60R-PA66-BU |
HellermannTyton - CTT60R6M4 - Product Dimensions
| Minimum Tensile Strength (Imperial) | 60 |
|---|---|
| Minimum Tensile Strength (Metric) | 267 |
| Length L (Imperial) | 8 |
| Length L (Metric) | 203.2 |
| Identification Plate Position | none |
| Releasable Closure | No |
| Tie Closure | plastic pawl |
| Variant | Inside Serrated |
| Width W (Imperial) | 0.19 |
| Width W (Metric) | 4.7 |
| Bundle Diameter Min (Imperial) | 0.06 |
| Bundle Diameter Min (Metric) | 1.5 |
| Bundle Diameter Max (Imperial) | 1.77 |
| Bundle Diameter Max (Metric) | 45 |
| Thickness T (Metric) | 1.2 |
HellermannTyton - CTT60R6M4 - Logistic & Packaging
| Package Quantity (Imperial) | 1000 |
|---|---|
| Package Quantity (Metric) | 1000 |
| Customs Number | 3.93E+09 |
HellermannTyton - CTT60R6M4 - Materials & Specifications
| Material | Polyamide 6.6 (PA66) |
|---|---|
| Material Shortcut | PA66 |
| Flammability | UL 94 V-2 |
| UV Resistant (Yes/No) | No |
| Operating Temperature | -40°F to +185°F (-40°C to +85°C) |
| Reach Compliant (Article 33) | No |
| ROHS Compliant | Yes |
| Certification/Specification | UL |
| UL Recognized (US) | Yes |
| UL Recognized (US and Canada) | Yes |
