HellermannTyton DSWS50HSH1 | Dual Swivel Saddle Spacer for T50-T250, Bundle Diameter 0.625 - 6", Black, PA66HS, 500/pkg
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
HellermannTyton DSWS50HSH1 | Dual Swivel Saddle Spacer for T50-T250...
Description
Description

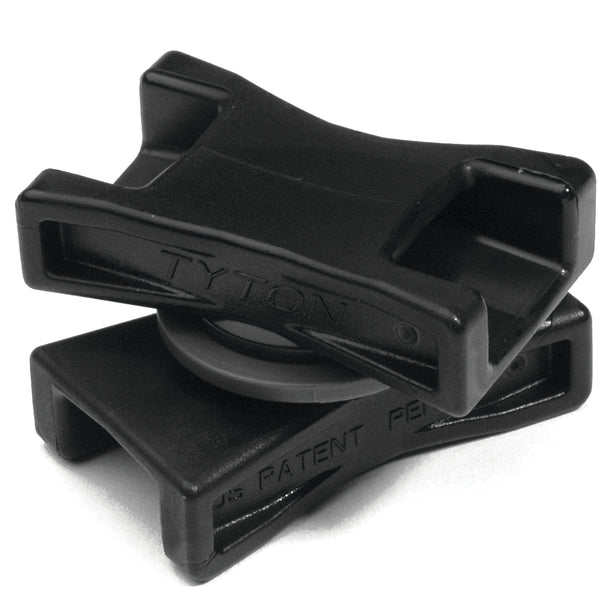

These saddle spacers are installed between two bundles (such as wires, cables, hoses, tubing, conduit, etc.) to separate and prevent chafing and wear. The mounts can be easily rotated by hand, allowing the bundles to be crossed and rotated at any angle . Cable ties, which secure the bundles, are used with the mounts. The dual swivel saddle spacers accommodate cable ties up to 1/2" wide.
These saddle spacers are installed between two bundles (such as wires, cables, hoses, tubing, conduit, etc.) to separate and prevent chafing and wear. The mounts can be easily rotated by hand, allowing the bundles to be crossed and rotated at any angle. Cable ties, which secure the bundles, are used with the mounts. The dual swivel saddle spacers accommodate cable ties up to 1/2" wide.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - DSWS50HSH1 - Features
- H-profile of the saddles allows for broad surface contact with the bundle, which minimizes pinching and crushing of the bundle.
- Swivels in 360-degree motion to accommodate any area.
- Accommodates T50-T250 ties to handle both light-duty and heavy-duty applications.
- Narrow fingers reduce fanning of the wires to the terminal blocks, presenting a neater appearance.
- Each finger is provided with a double restriction to hold wires in the bottom portion of the duct, allowing for easier installation.
- Mounting holes are uniform in size and are offered every 2 inches to accommodate compact designs and ease installation.
- Optional covers snap on and off easily, and are provided with a non-slip lining that insures the covers remain in place during vibration.
Specifications
Specifications
HellermannTyton - DSWS50HSH1 - Product Categories
- Hardware
- Cable Management
- Tubing
- Bundling & Securing
- Bundle Separators
- Dual Swivel Bundle Spacers
HellermannTyton - DSWS50HSH1 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Decimal | .625 Inch |
| Dual | Yes |
| Heat Shrink | No Is Not Shrink Tubing |
| UNSPSC Code | 39130000 |
HellermannTyton - DSWS50HSH1 - Base Data
| Article Number | 151-06501 |
|---|---|
| Type | DSWS5 |
| Color | Black (BK) |
| Quantity Per | bag |
| Short Description | Dual Swivel Saddle Spacer for T50-T250, 0.625 - 6.0" Bundle Diameter, PA66HS, Black, 500/pkg |
| Global Part Name | DSWS5-PA66HS/PA46-BK |
HellermannTyton - DSWS50HSH1 - Product Dimensions
| Length L (Imperial) | 1.6 |
|---|---|
| Length L (Metric) | 40.6 |
| Width W (Imperial) | 1 |
| Width W (Metric) | 25.4 |
| Bundle Diameter Min (Imperial) | 0.7 |
| Bundle Diameter Min (Metric) | 16 |
| Bundle Diameter Max (Imperial) | 6 |
| Bundle Diameter Max (Metric) | 152 |
| Cable Ties | T50 - T250 |
| Height H (Imperial) | 0.9 |
| Height H (Metric) | 23.6 |
| Cable Tie Width Max (Imperial) | 0.5 |
| Cable Tie Width Max (Metric) | 12.7 |
HellermannTyton - DSWS50HSH1 - Logistic & Packaging
| Package Quantity (Imperial) | 500 |
|---|---|
| Package Quantity (Metric) | 500 |
| Customs Number | 3.93E+09 |
HellermannTyton - DSWS50HSH1 - Materials & Specifications
| Material | Polyamide 6.6 heat stabilized (PA66HS)Polyamide 4.6 (PA46) |
|---|---|
| Material Shortcut | PA66HSPA46 |
| Flammability | UL 94 V-2 |
| UV Resistant (Yes/No) | No |
| Operating Temperature | -40°F to +257°F (-40°C to +125°C) |
| Minimum Extraction Force (Imperial) | 250 |
| Minimum Extraction Force (Metric) | 1112 |
| Reach Compliant (Article 33) | No |
| ROHS Compliant | Yes |
