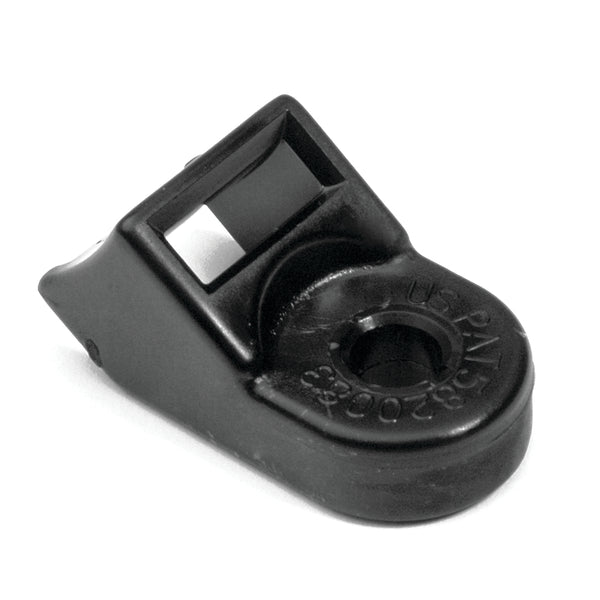

HellermannTyton HDM250HIRC2 | Standard Torque Cable Tie Mount, Mtg Hole Dia. 0.25", Max Torque 115.0 In Lbs, Pa66Hirhsuv, Black, 100/Pkg
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
HellermannTyton HDM250HIRC2 | Standard Torque Cable Tie Mount, Mtg ...
Description
Description
These mounts contain a small tab inside the mounting hole to temporarily engage the threads, which allows assemblers to preinstall the mount on a stud before securing with a washer and a nut. For use with HellermannTyton heavy duty T120, T250, T255 and Wide Strap Cable Ties.
These mounts contain a small tab inside the mounting hole to temporarily engage the threads, which allows assemblers to preinstall the mount on a stud before securing with a washer and a nut. For use with HellermannTyton heavy duty T120, T250, T255 and Wide Strap Cable Ties.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - HDM250HIRC2 - Features
- Mount and tie combination makes it easy to service bundles in the field.
- Made from impact modified, heat stabilized, UV resistant material, ideal for heavy duty environments.
- Eliminates the needs for multiple sized fix diameter clamps.
- The different fixing orientations allow tape clips to be used with a wide range of panel thicknesses and hole diameters.
Specifications
Specifications
HellermannTyton - HDM250HIRC2 - Product Categories
- Hardware
- Cable Management
- Tubing
- Bundling & Securing
- Heavy Duty Cable Tie Mounts
- Mounts Secured with Mechanical Fasteners - Single Bundle
HellermannTyton - HDM250HIRC2 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Decimal | .250 Inch |
| Dual | No |
| Heat Shrink | No Is Not Shrink Tubing |
| Spiral Wrap | No |
| UNSPSC Code | 39130000 |
| Color | Black |
| Material | Polyamide 6.6, high impact modified (PA66HIR) |
| Operating Temperature | -40F to +230F (-40C to +110C) |
HellermannTyton - HDM250HIRC2 - Base Data
| Article Number | 151-00437 |
|---|---|
| Type | HDM25 |
| Color | Black (BK) |
| Quantity Per | bag |
| Short Description | Standard Torque Cable Tie Mount, Mtg Hole Dia. 0.25", Max Torque 115.0 in lbs, PA66HIRHSUV, Black, 100/pkg |
| Global Part Name | HDM25-PA66HIRHSUV-BK |
HellermannTyton - HDM250HIRC2 - Product Dimensions
| Length L (Imperial) | 1.41 |
|---|---|
| Length L (Metric) | 36.3 |
| Fixation Method | Screw Mounting and Rivet |
| Width W (Imperial) | 0.75 |
| Width W (Metric) | 19.3 |
| Height H (Imperial) | 0.66 |
| Height H (Metric) | 16.7 |
| Cable Tie Width Max (Imperial) | 0.5 |
| Cable Tie Width Max (Metric) | 12.7 |
| Mounting Hole Diameter D (Imperial) | 0.25 |
| Mounting Hole Diameter D (Metric) | 6.2 mm |
| Mounting Hole Diameter D Min (Imperial) | 0.25 |
| Mounting Hole Diameter D Max (Imperial) | 0.25 |
| Mounting Hole Diameter D Max (Metric) | 6.2 |
| Stud Diameter (Metric) | 6.2 mm |
| Stud Diamater (Imperial) | 0.25 |
HellermannTyton - HDM250HIRC2 - Logistic & Packaging
| Package Quantity (Imperial) | 100 |
|---|---|
| Package Quantity (Metric) | 100 |
| Customs Number | 3.93E+09 |
HellermannTyton - HDM250HIRC2 - Materials & Specifications
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) |
|---|---|
| Material Shortcut | PA66HIRHSUV |
| Flammability | UL 94 HB |
| Halogen Free | Yes |
| UV Resistant (Yes/No) | Yes |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Maximum Torque (kgf-cm) | 132.5 |
| Maximum Torque (lbf-ft) | 9.583 |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
