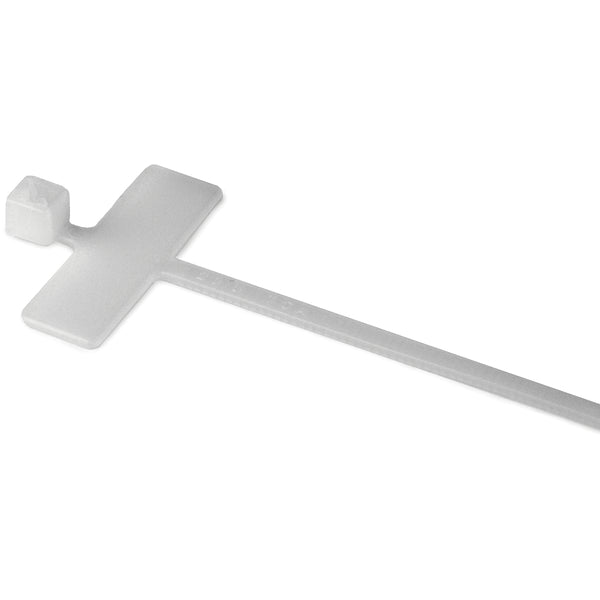

HellermannTyton IT18R9L4 | Milspec Identification Tie, 3.9" Long, Ms3368, 18Lb Tensile Strength, Pa66, Natural, 200/Pkg
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
HellermannTyton IT18R9L4 | Milspec Identification Tie, 3.9" Lo...
Description
Description
Identification Cable Ties feature an identification plate that allows wire and cable bundles to be easily marked and identified. These ties enable wire and cables to be secured and identified using just one product, saving installation time. The plates can be marked using a permanent marker or with a HellermannTyton adhesive label.
Identification Cable Ties feature an identification plate that allows wire and cable bundles to be easily marked and identified. These ties enable wire and cables to be secured and identified using just one product, saving installation time. The plates can be marked using a permanent marker or with a HellermannTyton adhesive label. Specially manufactured to comply with Military Specification MS3368-5-9E, Class 1 and SAE-AS33681.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - IT18R9L4 - Features
- Identification plate feature allows bundles to be easily marked and identified.
- Wire and cable harnesses can be secured and identified using just one product, which saves time.
- Plates can be marked manually with a permanent marker or with a pre-printed adhesive label.
- Edge Clip applies easily to plastic and metal sheets without the need for a mounting hole.
- Edge Clip provides low insertion force and high extraction force ideal for assembly environments.
- Two piece assembly allows the mount to slide along the strap ensuring proper orientation.
- Cable tie is outside serrated to reduce bundle chafing.
Specifications
Specifications
HellermannTyton - IT18R9L4 - Product Categories
- Hardware
- Tools and Supplies
- Supplies
- Bundling & Securing
- Cable Ties
- Identification Cable Ties
HellermannTyton - IT18R9L4 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Cable Tie Diameter | 4" |
| Type | Cables Ties And Accessories |
| UNSPSC Code | 39121703 |
HellermannTyton - IT18R9L4 - Base Data
| Article Number | 111-81808 |
|---|---|
| Type | IT18R |
| Color | Natural (NA) |
| Quantity Per | bag |
| Short Description | MilSpec Identification Tie, 3.9" Long, MS3368, 18lb Tensile Strength, PA66, Natural, 200/pkg |
| Global Part Name | IT18R-PA66-NA |
HellermannTyton - IT18R9L4 - Product Dimensions
| Minimum Tensile Strength (Imperial) | 18 |
|---|---|
| Minimum Tensile Strength (Metric) | 80 |
| Length L (Imperial) | 3.9 |
| Length L (Metric) | 100 |
| Fixation Method | None |
| Identification Plate Position | attached to bundle |
| Releasable Closure | No |
| Tie Closure | plastic pawl |
| Variant | Inside Serrated |
| Width W (Imperial) | 0.98 |
| Width W (Metric) | 25 |
| Bundle Diameter Min (Imperial) | 0.19 |
| Bundle Diameter Min (Metric) | 4.8 |
| Bundle Diameter Max (Imperial) | 0.75 |
| Bundle Diameter Max (Metric) | 19 |
| Height H (Imperial) | 0.32 |
| Height H (Metric) | 8 |
| Outside Diameter Max (Imperial) | 0.87 |
| Outside Diameter Min (Metric) | 6 |
| Outside Diameter Min (Imperial) | 0.24 |
| Outside Diameter Max (Metric) | 22 |
HellermannTyton - IT18R9L4 - Logistic & Packaging
| Package Quantity (Imperial) | 200 |
|---|---|
| Package Quantity (Metric) | 200 |
| Customs Number | 3.93E+09 |
HellermannTyton - IT18R9L4 - Materials & Specifications
| Material | Polyamide 6.6 (PA66) |
|---|---|
| Material Shortcut | PA66 |
| Flammability | UL 94 V-2 |
| Halogen Free | Yes |
| UV Resistant (Yes/No) | No |
| Operating Temperature | -40°F to +185°F (-40°C to +85°C) |
| Reach Compliant (Article 33) | No |
| ROHS Compliant | Yes |
| Certification/Specification | CAGE Code 53421UL-ZODZ2.E64139 |
| UL Recognized (US) | Yes |
| UL Recognized (US and Canada) | Yes |
