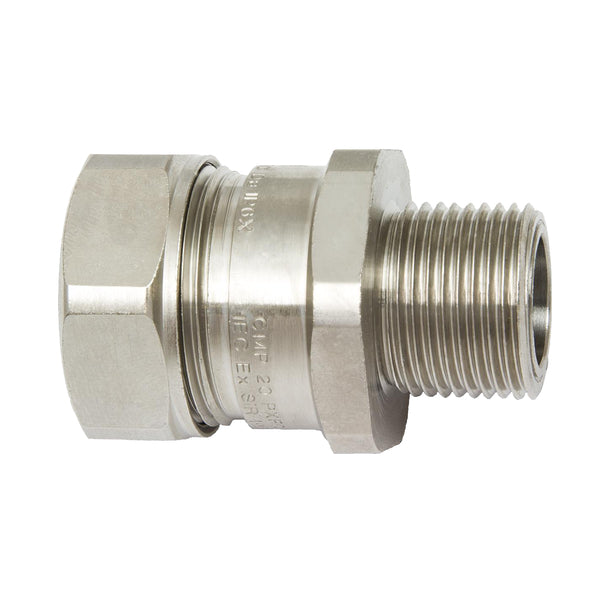

HellermannTyton LTP25-075-EXD | Hazardous Area Liquid-Tight Flex Met Comp Fitting, Straight, 3/4" Npt Thread, 0.75" (25Mm) Dia, Metal, 1/Pkg
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
HellermannTyton LTP25-075-EXD | Hazardous Area Liquid-Tight Flex Me...
Description
Description
Flameproof straight gland with inner Compound Barrier offers high specification, high quality solution for EX d, EX e, and EX ta applications. ATEX and/or IEC approvals for Group I and Group II. For indoor or outdoor use applications in Zone 1, Zone 2, Zone 21 and Zone 22 Hazardous areas. Nickel plated brass compression style fitting suitable for knockouts and NPT or Metric threaded entries for IP66 + IP67 + IP68 + IP69 ingress ratings. Use with LTP / LTPHC / LTPPU / LTBRDP / LTBRDLFH / and LTPLFH m etallic conduit.
Flameproof straight gland with inner Compound Barrier offers high specification, high quality solution for EX d, EX e, and EX ta applications. ATEX and/or IEC approvals for Group I and Group II. For indoor or outdoor use applications in Zone 1, Zone 2, Zone 21 and Zone 22 Hazardous areas. Nickel plated brass compression style fitting suitable for knockouts and NPT or Metric threaded entries for IP66 + IP67 + IP68 + IP69 ingress ratings. Use with LTP / LTPHC / LTPPU / LTBRDP / LTBRDLFH / and LTPLFH metallic conduit.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - LTP25-075-EXD - Features
- Group I and II approvals
- Multi-part straight compression fitting includes elastomer seal and two-part epoxy resin pack for flameproof barrier and ingress protection ratings to IP66 + IP67 + IP68 + IP69.
- Durable Nickel Plated Brass material provides high mechanical strength, ensures electrtical continuity and corrosion resistance.
- Suitable for knockouts or NPT/Metric threaded entries as fitting rotates until tightened.
- Interchangeable with liquid tight metallic conduits in the LTP / LTPHC / LTPLFH / LTPPU / LTBRDP / LTBRDLFH series.
- Suitable for use in Zone 1, Zone 2, Zone 21 and Zone 22 hazardous areas.
- ATEX and IECEx EX d (Flameproof).
- ATEX and IECEx EX e (Increased Safety).
- ATEX and IECEx EX ta (Dust Ignition Protection).
- UL Listed to UL514B standards.
- Multipart compression fitting includes nylon seal for ingress protection ratings to IP66 + IP67 + IP68 + IP69.
- Durable nickel plated brass material provides high mechanical strength and resistance to oil & corrosion.
- Suitable for knockouts or Metric threaded entries.
- Interchangeable with all LTP series liquid-tight metallic conduits made to UL360 sizes.
- Suitable for use in hazardous locations as per NEC Article 501 (B)(2): Class I, Division 2; Article 502 (A)(2) & (B)(2) Class II, Division 1 and 2; and Article 503 (A)(3) & (B)(3) Class III, Divisions 1 and 2.
Specifications
Specifications
HellermannTyton - LTP25-075-EXD - Product Categories
- Hardware
- Cable Management
- Innerduct
- Routing, Protection and Insulation
- Flexible Conduit and Fittings
- Metallic Fittings
HellermannTyton - LTP25-075-EXD - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Diameter | 0.75" |
| Location | Mixed Use |
| Type | Liquid Tight Fitting |
| UNSPSC Code | 39131707 |
HellermannTyton - LTP25-075-EXD - Base Data
| Article Number | 166-90570 |
|---|---|
| Type | LTP25-075-EXD |
| Color | Metal (ML) |
| Quantity Per | pack |
| Short Description | Hazardous Area Liquid-Tight Flex Met Comp Fitting, Straight, 3/4" NPT Thread, 0.75" (25mm) Dia, Metal, 1/pkg |
| Global Part Name | LTP25-075-EXD-NPB/PA6-ML |
HellermannTyton - LTP25-075-EXD - Product Dimensions
| Length L (Imperial) | 1.97 |
|---|---|
| Length L (Metric) | 50 |
| Variant | Straight |
| Height H (Imperial) | 1.38 |
| Height H (Metric) | 35 |
| Nominal Diameter (Imperial) | 0.75 |
| Nominal Diameter (Metric) | 25 |
HellermannTyton - LTP25-075-EXD - Logistic & Packaging
| Package Quantity (Imperial) | 1 |
|---|---|
| Package Quantity (Metric) | 1 |
| Customs Number | 7.41E+09 |
HellermannTyton - LTP25-075-EXD - Materials & Specifications
| Material | Nickel Plated Brass (NPB)Polyamide 6 (PA6) |
|---|---|
| Material Shortcut | PA6NPB |
| Halogen Free | Yes |
| UV Resistant (Yes/No) | No |
| Operating Temperature | -76°F to +185°F (-60°C to +85°C) |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
