Brand: HellermannTyton | SKU: 916681

HellermannTyton LTP63-200-CUL | Helaguard Liquid-Tight Flex Met Comp Fitting, Npb, Non-Ins Straight, 2.0" Npt Thread, 2.0" (63Mm) Dia, Metal, 1/Pkg

Regular price $67.02
Shipping calculated at checkout.
  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

Description

HellermannTyton LTP63-200-CUL | Helaguard Liquid-Tight Flex Met Comp Fitting, Npb, Non-Ins Straight, 2.0" Npt Thread, 2.0" (63Mm) Dia, Metal, 1/Pkg

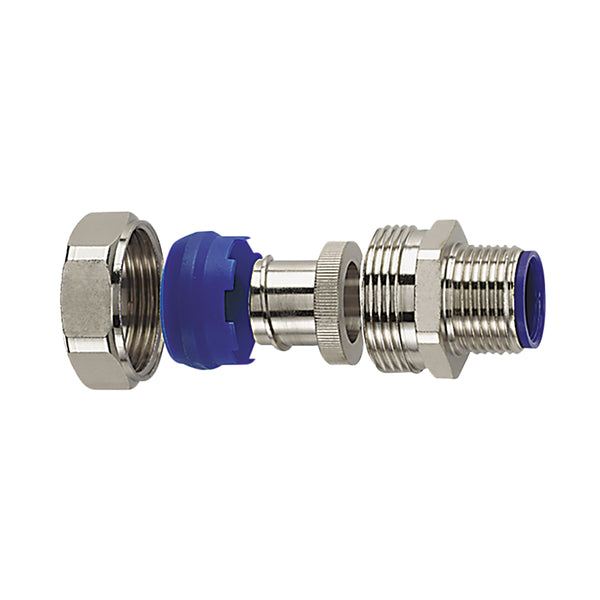

Multipart straight compresssion fitting with fixed external Metric threads for liquid-tight performance. Metric threaded fittings supplied with insulated throat which protects conductors from mechanical damage caused by vibration. Constructed with nick el plated brass components that resists corrosion, ensures high mechanical strength and electrical continuity. UL Listed and suitable for hazardous locations as defined by NEC Article 501. Fitting comprised of body, nut, grounding ferrule and nylon com pression seal. For use with LTP series liquid tight metallic conduit.

Multipart straight compresssion fitting with fixed external Metric threads for liquid-tight performance. Metric threaded fittings supplied with insulated throat which protects conductors from mechanical damage caused by vibration. Constructed with nickel plated brass components that resists corrosion, ensures high mechanical strength and electrical continuity. UL Listed and suitable for hazardous locations as defined by NEC Article 501. Fitting comprised of body, nut, grounding ferrule and nylon compression seal. For use with LTP series liquid tight metallic conduit.

About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.

HellermannTyton - LTP63-200-CUL - Features

  • UL Listed to UL514B standards.
  • Multipart compression fitting includes nylon seal for ingress protection ratings to IP66 + IP67 + IP68 + IP69.
  • Durable nickel plated brass material provides high mechanical strength and resistance to oil & corrosion.
  • Suiable for knockouts or Metric threaded entries.
  • Interchangeable with all LTP series liquid-tight metallic conduits made to UL360 sizes.
  • Suitable for use in hazardous locations as per NEC Article 501 (B)(2): Class I, Division 2; Article 502 (A)(2) & (B)(2) Class II, Division 1 and 2; and Article 503 (A)(3) & (B)(3) Class III, Divisions 1 and 2.

Specifications

HellermannTyton - LTP63-200-CUL - Product Categories

  • Hardware
  • Cable Management
  • Innerduct
  • Routing, Protection and Insulation
  • Flexible Conduit and Fittings
  • Metallic Fittings

HellermannTyton - LTP63-200-CUL - Specifications

Brand NameHellermannTyton
Diameter2"
LocationIndoor
TypeAccessory
UNSPSC Code39121311

HellermannTyton - LTP63-200-CUL - Base Data

Article Number166-90404
TypeLTS200-FMC-200
ColorMetal (ML)
Quantity Perpack
Short DescriptionHelaGuard Liquid-Tight Flex Met Comp Fitting, NPB, Non-Ins Straight, 2.0" NPT Thread, 2.0" (63mm) Dia, Metal, 1/pkg
Global Part NameLTS200-FMC-200-NPB/PA6-ML

HellermannTyton - LTP63-200-CUL - Product Dimensions

Length L (Imperial)2.31
Length L (Metric)58.8
VariantStraight
Height H (Imperial)2.76
Height H (Metric)70
Nominal Diameter (Imperial)2.5
Nominal Diameter (Metric)63

HellermannTyton - LTP63-200-CUL - Logistic & Packaging

Package Quantity (Imperial)1
Package Quantity (Metric)1
Customs Number7.41E+09

HellermannTyton - LTP63-200-CUL - Materials & Specifications

MaterialPolyamide 6 (PA6)Nickel Plated Brass (NPB)
Material ShortcutNPBPA6
Halogen FreeYes
UV Resistant (Yes/No)No
Operating Temperature-58°F to +275°F (-50°C to +135°C)
Reach Compliant (Article 33)Yes
ROHS CompliantYes
UL Listed (US and Canada)Yes
UL Listed (US)Yes
