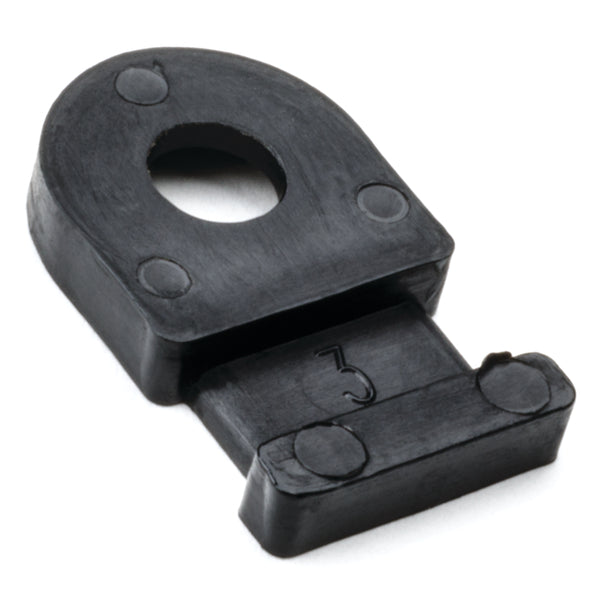

HellermannTyton MB20M4 | Cable Tie Anchor Mount, 0.81" X .49&q...
Description
Description
HellermannTyton cable tie screw mounts are used with 18 through 50 pound cable ties to provide stability when securing bundles. The low profile design allows for use in space constrained areas. The mounts are installed quick and easy by securing a sing le screw.
HellermannTyton cable tie screw mounts are used with 18 through 50 pound cable ties to provide stability when securing bundles. The low profile design allows for use in space constrained areas. The mounts are installed quick and easy by securing a single screw.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - MB20M4 - Features
- For use with 18 through 50 pound cable ties to provide stability when securing bundles.
- Low profile design offers use in space constrained areas.
- Secures with a single screw providing quick installation.
Specifications
Specifications
HellermannTyton - MB20M4 - Product Categories
- Hardware
- Cable Management
- Tubing
- Bundling & Securing
- Cable Tie Mounts
- Screw Mounting Bases
HellermannTyton - MB20M4 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Dual | No |
| Heat Shrink | No Is Not Shrink Tubing |
| UNSPSC Code | 39130000 |
HellermannTyton - MB20M4 - Base Data
| Article Number | 151-00301 |
|---|---|
| Type | MB2 |
| Color | Black (BK) |
| Quantity Per | bag |
| Short Description | Cable Tie Anchor Mount, 0.81" x .49", 0.193" Hole Dia, 0.18" Max Tie Width, PA66, Black, 1000/pkg |
| Global Part Name | MB2-PA66-BK |
HellermannTyton - MB20M4 - Product Dimensions
| Length L (Imperial) | 0.81 |
|---|---|
| Length L (Metric) | 20.6 |
| Fixation Method | Screw Mounting and Rivet |
| Width W (Imperial) | 0.49 |
| Width W (Metric) | 12.5 |
| Cable Ties | T18 - T50 |
| Height H (Imperial) | 0.13 |
| Height H (Metric) | 3.3 |
| Cable Tie Width Max (Imperial) | 0.18 |
| Cable Tie Width Max (Metric) | 4.6 |
| Mounting Hole Diameter D (Imperial) | 0.193 |
| Mounting Hole Diameter D (Metric) | 4.9 mm |
| Mounting Hole Diameter D Max (Metric) | 4.9 |
HellermannTyton - MB20M4 - Logistic & Packaging
| Package Quantity (Imperial) | 1000 |
|---|---|
| Package Quantity (Metric) | 1000 |
| Customs Number | 3.93E+09 |
HellermannTyton - MB20M4 - Materials & Specifications
| Material | Polyamide 6.6 (PA66) |
|---|---|
| Material Shortcut | PA66 |
| Flammability | UL 94 V-2 |
| Halogen Free | Yes |
| UV Resistant (Yes/No) | No |
| Operating Temperature | -40°F to +185°F (-40°C to +85°C) |
| Reach Compliant (Article 33) | No |
| ROHS Compliant | Yes |
