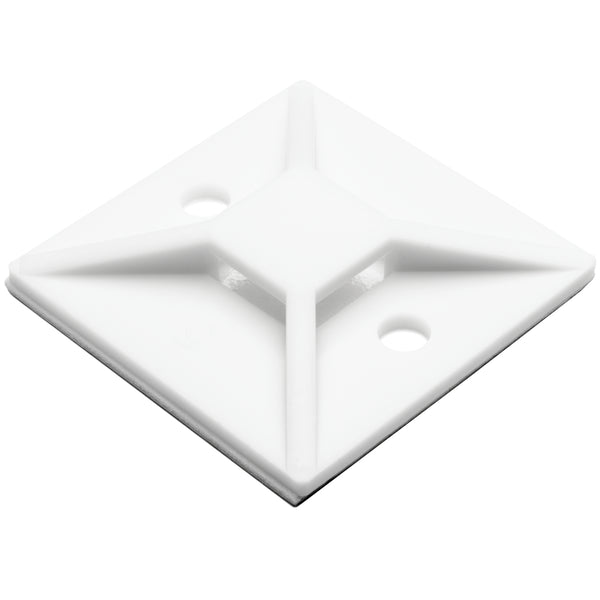

HellermannTyton MB5A10A2F4 | Adhesive Cable Tie Mount, 1.49" x 1.49", .35" Max Tie Width, .19" Hole Dia, PA66/Acrylate, White, 250/pkg
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
HellermannTyton MB5A10A2F4 | Adhesive Cable Tie Mount, 1.49" x...
Description
Description
HellermannTyton adhesive fastened mounting bases are used with 18 through 150 pound cable ties to provide stability when securing bundles. The mounts are installed using the adhesive backing and/or by securing two or four screws. The 4 way opening allo ws the cable ties to be inserted parallel or perpendicular to the wire bundles.
HellermannTyton adhesive fastened mounting bases are used with 18 through 150 pound cable ties to provide stability when securing bundles. The mounts are installed using the adhesive backing and/or by securing two or four screws. The 4 way opening allows the cable ties to be inserted parallel or perpendicular to the wire bundles.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - MB5A10A2F4 - Features
- For use with 18 and 30 pound cable ties to provide stability when securing bundles.
- Secures with rubber based adhesive backing and/or two or four screws.
- 4 way opening allows cable ties to be installed parallel or perpendicular to wire bundles.
Specifications
Specifications
HellermannTyton - MB5A10A2F4 - Product Categories
- Hardware
- Cable Management
- Tubing
- Bundling & Securing
- Cable Tie Mounts
- Adhesive Mounting Bases
HellermannTyton - MB5A10A2F4 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Decimal | .350 Inch |
| Dual | No |
| Heat Shrink | No Is Not Shrink Tubing |
| UNSPSC Code | 39130000 |
HellermannTyton - MB5A10A2F4 - Base Data
| Article Number | 151-28610 |
|---|---|
| Type | MB5A |
| Color | White (WH) |
| Quantity Per | bag |
| Short Description | Acrylic Adhesive Cable Tie Mount, 1.49" x 1.49", Use With T18-T150 Cable Tie, PA66, White, 250/pkg |
| Global Part Name | MB5A-PA66-WH |
HellermannTyton - MB5A10A2F4 - Product Dimensions
| Length L (Imperial) | 1.49 |
|---|---|
| Length L (Metric) | 37.7 |
| Fixation Method | Screw Mounting and Adhesive |
| Width W (Imperial) | 1.49 |
| Width W (Metric) | 37.7 |
| Cable Ties | T18 - T150 |
| Height H (Imperial) | 0.28 |
| Height H (Metric) | 7.1 |
| Cable Tie Width Max (Imperial) | 0.35 |
| Cable Tie Width Max (Metric) | 8.9 |
| Mounting Hole Diameter D (Imperial) | 0.19 |
| Mounting Hole Diameter D (Metric) | 4.8 mm |
| Mounting Hole Diameter D Max (Metric) | 4.8 |
| Mounting Hole Centers (Imperial) | 1 |
HellermannTyton - MB5A10A2F4 - Logistic & Packaging
| Package Quantity (Imperial) | 250 |
|---|---|
| Package Quantity (Metric) | 250 |
| Customs Number | 3.93E+09 |
HellermannTyton - MB5A10A2F4 - Materials & Specifications
| Material | Polyamide 6.6 (PA66) |
|---|---|
| Material Shortcut | PA66 |
| Adhesive | Acrylate with base of acrylic foam |
| Flammability | UL 94 V-2 (excluding adhesive) |
| UV Resistant (Yes/No) | No |
| Adhesive Operating Temperature | -31°F to +158°F (-35 °C to +70 °C) |
| Operating Temperature | -40°F to +185°F (-40°C to +85°C) |
| Reach Compliant (Article 33) | No |
| ROHS Compliant | Yes |
