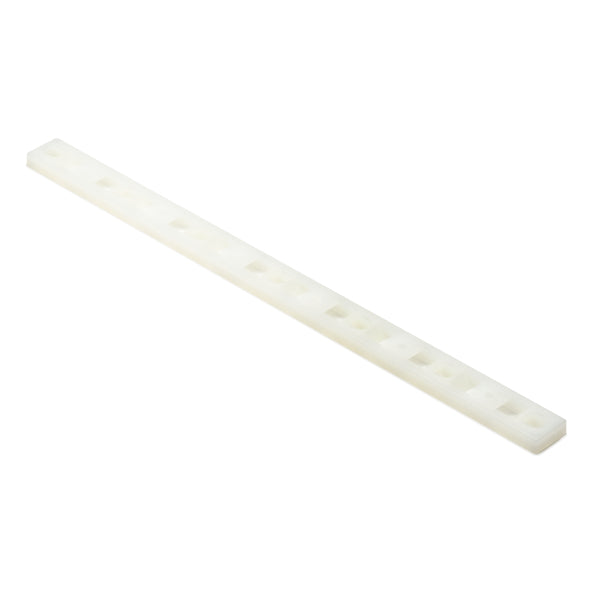

HellermannTyton MP1M3.NN3P | Cable Tie Mounting Plate, .50" x 1.75", T18-T50 Cable Ties, #6 (M3) Screw, PA66, Natural, 100/pkg
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
HellermannTyton MP1M3.NN3P | Cable Tie Mounting Plate, .50" x ...
Description
Description
Mounting Plates allow multiple cables to be run in parallel. Mounts are secured with two screws. Cables are attached to the plates by running a cable tie through any of the available slots.
HellermannTyton mounting plates allow multiple cable to be run in parallel. The mount is secured with two screws and the cables are attached to the plate by using a cable tie through any of the available slots.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - MP1M3.NN3P - Features
- Mounting plates allow multiple bundles to run parallel.
- The mounts are secured using two screws, while the bundles are attached using cable ties in any of the available slots.
- Masonry Mounts provide a permanent solution when fastening wire and cables to masonry surfaces.
- The mounts have easy installation into predrilled holes allowing for faster use.
Specifications
Specifications
HellermannTyton - MP1M3.NN3P - Product Categories
- Hardware
- Cable Management
- Tubing
- Bundling & Securing
- Cable Tie Mounts
- Mounting Plates
HellermannTyton - MP1M3.NN3P - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Decimal | .500 Inch |
| Dual | No |
| Heat Shrink | No Is Not Shrink Tubing |
| UNSPSC Code | 39130000 |
HellermannTyton - MP1M3.NN3P - Base Data
| Article Number | 154-00000 |
|---|---|
| Type | MP1M3 |
| Color | Natural (NA) |
| Quantity Per | bag |
| Short Description | Cable Tie Mounting Plate, 0.50'' x 1.75'', T18-T50 Cable Ties, #6 (M3) Screw, PA66, Natural, 100/pkg |
| Global Part Name | MP1M3-PA66-NA |
HellermannTyton - MP1M3.NN3P - Product Dimensions
| Length L (Imperial) | 1.75 |
|---|---|
| Length L (Metric) | 44.4 |
| Fixation Method | Screw Mounting and Rivet |
| Width W (Imperial) | 0.5 |
| Width W (Metric) | 12.7 |
| Cable Ties | T18 - T50 |
| Height H (Imperial) | 0.125 |
| Height H (Metric) | 3.2 |
| Cable Tie Width Max (Imperial) | 0.2 |
| Cable Tie Width Max (Metric) | 5.2 |
| Mounting Hole Diameter D (Imperial) | 0.15 |
| Mounting Hole Diameter D (Metric) | 3.7 mm |
| Mounting Hole Diameter D Max (Metric) | 3.7 |
| Mounting Hole Centers (Imperial) | 1.25 |
HellermannTyton - MP1M3.NN3P - Logistic & Packaging
| Package Quantity (Imperial) | 100 |
|---|---|
| Package Quantity (Metric) | 100 |
| Customs Number | 3.93E+09 |
HellermannTyton - MP1M3.NN3P - Materials & Specifications
| Material | Polyamide 6.6 (PA66) |
|---|---|
| Material Shortcut | PA66 |
| Flammability | UL 94 V-2 |
| UV Resistant (Yes/No) | No |
| Operating Temperature | -40°F to +185°F (-40°C to +85°C) |
| Reach Compliant (Article 33) | No |
| ROHS Compliant | Yes |
