HellermannTyton PBM9C2 | Push-Button Cable Tie Mount, .25" Hol...
Description
Description

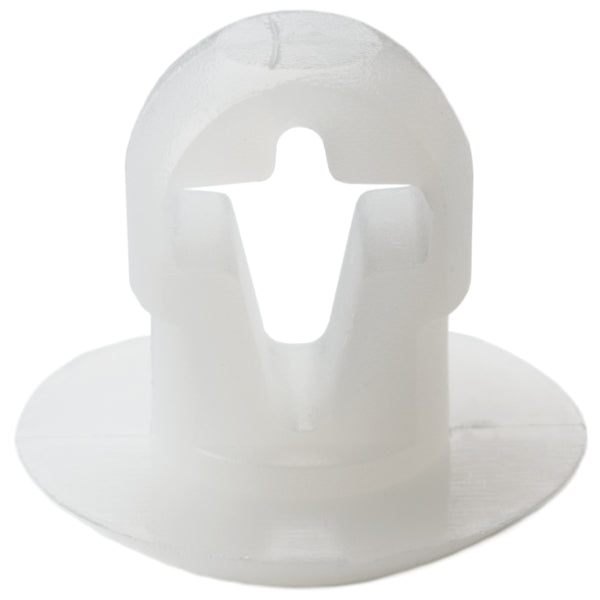

HellermannTyton push mounts are used with our standard cable ties and offer a permanent bundling solution for installation below or underneath a panel. Designed for simple installation by pushing the mount through a pre-drilled hole. The low profile "b utton" style head is suitable in space constrained areas.
HellermannTyton push mounts are used with our standard cable ties and offer a permanent bundling solution for installation below or underneath a panel. Designed for simple installation by pushing the mount through a pre-drilled hole. The low profile "button" style head is suitable in space constrained areas.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - PBM9C2 - Features
- Push Mounts, when used with standard cable ties, provide a permanent bundling solution below a panel.
- The "button" style head is ideal for space constrained areas and is easily inserted through a pre-drilled hole.
Specifications
Specifications
HellermannTyton - PBM9C2 - Product Categories
- Hardware
- Cable Management
- Tubing
- Bundling & Securing
- Cable Tie Mounts
- Push Mounts
HellermannTyton - PBM9C2 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Decimal | .200 Inch |
| Dual | No |
| Heat Shrink | No Is Not Shrink Tubing |
| UNSPSC Code | 39130000 |
HellermannTyton - PBM9C2 - Base Data
| Article Number | 151-00232 |
|---|---|
| Type | PBM |
| Color | Natural (NA) |
| Quantity Per | bag |
| Short Description | Push-Button Cable Tie Mount, 0.25" Hole Dia, 0.12" Max Panel, 0.2" Max Tie Width, PA66, Natural, 100/pkg |
| Global Part Name | PBM-PA66-NA |
HellermannTyton - PBM9C2 - Product Dimensions
| Length L (Metric) | 10.7 |
|---|---|
| Width W (Imperial) | 0.26 |
| Width W (Metric) | 6.6 |
| Cable Ties | T18 - T50 |
| Height H (Imperial) | 0.4 |
| Height H (Metric) | 10.2 |
| Cable Tie Width Max (Imperial) | 0.2 |
| Cable Tie Width Max (Metric) | 5 |
| Panel Thickness Min (Imperial) | 0.118 |
| Panel Thickness Max (Imperial) | 0.12 |
| Panel Thickness Min (Metric) | 3 |
| Panel Thickness Max (Metric) | 3 |
| Mounting Hole Diameter D (Imperial) | 0.25 - 0.29 |
| Mounting Hole Diameter D (Metric) | 6.25 - 6.55 mm |
| Mounting Hole Diameter D Min (Imperial) | 0.25 |
| Mounting Hole Diameter D Max (Imperial) | 0.29 |
| Mounting Hole Diameter D Max (Metric) | 6.55 |
HellermannTyton - PBM9C2 - Logistic & Packaging
| Package Quantity (Imperial) | 100 |
|---|---|
| Package Quantity (Metric) | 100 |
| Customs Number | 3.93E+09 |
HellermannTyton - PBM9C2 - Materials & Specifications
| Material | Polyamide 6.6 (PA66) |
|---|---|
| Material Shortcut | PA66 |
| Flammability | UL 94 V-2 |
| UV Resistant (Yes/No) | No |
| Operating Temperature | -40°F to +185°F (-40°C to +85°C) |
| Reach Compliant (Article 33) | No |
| ROHS Compliant | Yes |
| Certification/Specification | UL |
| UL Recognized (US) | Yes |
| UL Recognized (US and Canada) | Yes |
