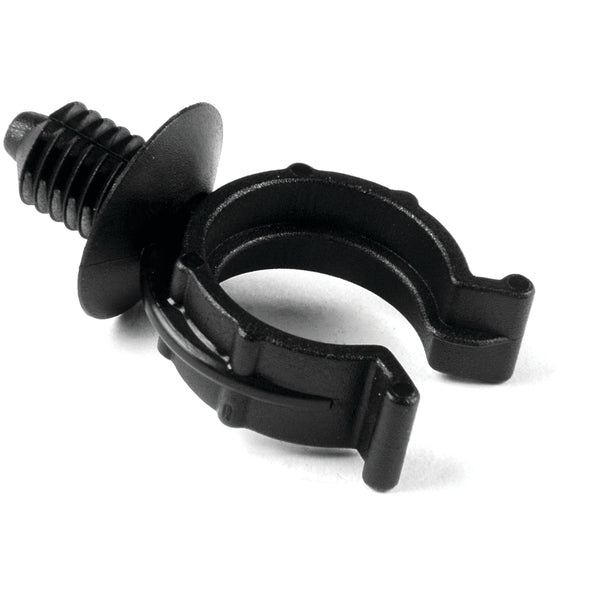

HellermannTyton PC15FT7 | Fir Tree Mount Tube Clip, Mounting Hole Dia .25", Panel Thickness .12", Pa66Hirhsuv, Black 1000/Box
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
HellermannTyton PC15FT7 | Fir Tree Mount Tube Clip, Mounting Hole D...
Description
Description
Designed to offer a durable single-hole mounting, this tube clip allows the installer to insert the fir tree with minimal force while providing a secure hold.
Designed to offer a durable single-hole mounting, this tube clip allows the installer to insert the fir tree with minimal force while providing a secure hold.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - PC15FT7 - Features
- Clip is designed for fixation and bundling of tubes and pipes.
- For use with HellermannTyton T18 - T50 cable ties to provide stability when securing bundles.
- 4-way opening allows cable ties to be installed parallel or perpendicular to bundles.
- The high-heat, high-bond adhesive is ideal for outdoor applications, with a static load weight of 1.1 lb.
- Two predrilled holes extend mounting options and solutions.
- Extended adhesive liner is easy to remove quickly.
Specifications
Specifications
HellermannTyton - PC15FT7 - Product Categories
- Hardware
- Cable Management
- Tubing
- Routing, Protection and Insulation
- Convoluted Tubing and Accessories
- Convoluted Tubing - Accessories
HellermannTyton - PC15FT7 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Decimal | .250 Inch |
| Dual | No |
| Heat Shrink | No Is Not Shrink Tubing |
| UNSPSC Code | 39130000 |
HellermannTyton - PC15FT7 - Base Data
| Article Number | 151-14303 |
|---|---|
| Type | PC15FT7 |
| Color | Black (BK) |
| Quantity Per | bag |
| Short Description | Fir Tree Mount Tube Clip, Mounting Hole Dia .25", Panel Thickness .12", PA66HIRHSUV, Black 1000/box |
| Global Part Name | PC15FT7-PA66HIRHSUV-BK |
HellermannTyton - PC15FT7 - Product Dimensions
| Length L (Imperial) | 0.62 |
|---|---|
| Length L (Metric) | 15.75 |
| Fixation Method | Fir Tree |
| Width W (Imperial) | 0.85 |
| Width W (Metric) | 21.6 |
| Bundle Diameter Max (Imperial) | 0.62 |
| Bundle Diameter Max (Metric) | 15.7 |
| Height H (Imperial) | 1.5 |
| Height H (Metric) | 38.1 |
| Panel Thickness Min (Imperial) | 0.04 |
| Panel Thickness Max (Imperial) | 0.31 |
| Panel Thickness Min (Metric) | 1 |
| Panel Thickness Max (Metric) | 6 |
| Mounting Hole Diameter D (Imperial) | 0.25 - 0.27 |
| Mounting Hole Diameter D (Metric) | 6.4 - 6.8 mm |
| Mounting Hole Diameter D Min (Imperial) | 0.25 |
| Mounting Hole Diameter D Max (Imperial) | 0.27 |
| Mounting Hole Diameter D Max (Metric) | 6.8 |
| Disc Diameter (Metric) | 21.6 |
| Disc Diameter (Imperial) | 0.9 |
HellermannTyton - PC15FT7 - Logistic & Packaging
| Package Quantity (Imperial) | 1000 |
|---|---|
| Package Quantity (Metric) | 1000 |
| Customs Number | 3.93E+09 |
HellermannTyton - PC15FT7 - Materials & Specifications
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) |
|---|---|
| Material Shortcut | PA66HIRHSUV |
| Flammability | UL 94 HB |
| UV Resistant (Yes/No) | Yes |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
