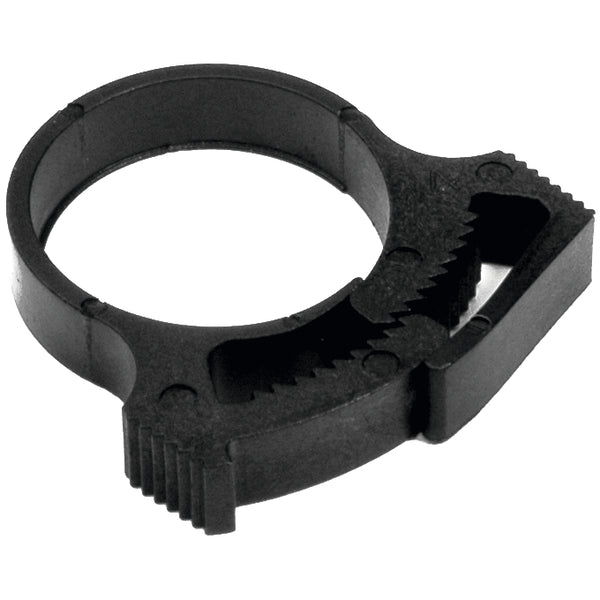

HellermannTyton SNP1.25GHS0C2 | Snapper Hose Clamp, 0.28" - 0.30" Bundle Diameter, Pa66Gf13, Black, 100/Pkg
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Description
Description
Snapper Hose Clamps are lightweight and corrosion-resistant. Manufactured from high-performance thermoplastic materials selected to work well in a variety of diverse environments.
A quick ratchet closure provides for reduced assembly line time
and allows for application after connection of the hose. Release is achieved by initiating opposed lateral movement of the ratchet ends.
Heat stabilized materials are available for high-temperature, motor, and under-hood applications. Snappers are also stab le in a wide
variety of chemicals including salts, bases, alcohols, ethers,
detergents, gasoline, lubricating oils, and greases.
The Snapper is available in 32 standard sizes ranging from 1/4" to
4-1/2" ID. Snappers are manufactured in white polyetal and black polyamide 6.6 glass filled impact modified heat stabilized material. Custom designed and different colored or shaped Snappers are available based upon applications and volume requirements.
Snapper Hose Clamps are lightweight and corrosion-resistant. Manufactured from high-performance thermoplastic materials selected to work well in a variety of diverse environments. A quick ratchet closure provides for reduced assembly line time and allows for application after connection of the hose. Release is achieved by initiating opposed lateral movement of the ratchet ends. Heat stabilized materials are available for high-temperature, motor, and under-hood applications. Snappers are also stable in a wide variety of chemicals including salts, bases, alcohols, ethers, detergents, gasoline, lubricating oils, and greases. The Snapper is available in 32 standard sizes ranging from 1/4" to 4-1/2" ID. Snappers are manufactured in white polyacetal and black polyamide 6.6 glass filled impact modified heat stabilized material. Custom designed and different colored or shaped Snappers are available based upon applications and volume requirements.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - SNP1.25GHS0C2 - Features
- Designed for quick, ratcheted installation and can be released and reused.
- Heat stabilized material is suitable for high temperature applications.
- The tie contains a dual locking design to secure two bundles at once.
- Head design can also provide spacing between parallel bundles.
- Bent tail allows for quick insertion into head.
Specifications
Specifications
HellermannTyton - SNP1.25GHS0C2 - Product Categories
- OEM
- Cable Management and Electrical
- Cable Management
- Bundling & Securing
- Clamps
- Hose Clamps
HellermannTyton - SNP1.25GHS0C2 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Approvals | None |
| Category | Clips And Clamps |
| Color | Black |
| Material | Thermoplastic Rubber |
| Quality Standard | Commercial Release |
| Rohs Compliant | Not Declared |
| Type | Hose Clamp - Double |
| UNSPSC Code | 39121700 |
HellermannTyton - SNP1.25GHS0C2 - Base Data
| Article Number | 190-00029 |
|---|---|
| Type | SNP1.25 |
| Color | Black (BK) |
| Quantity Per | bag |
| Short Description | Snapper Hose Clamp, 0.28" - 0.30" Bundle Diameter, PA66GF13, Black, 100/pkg |
| Global Part Name | SNP1.25-PA66GF13-BK |
HellermannTyton - SNP1.25GHS0C2 - Product Dimensions
| Fixation Method | Plug-in mounting |
|---|---|
| Variant | Closed |
| Bundle Diameter Min (Imperial) | 0.31 |
| Bundle Diameter Min (Metric) | 7.1 |
| Bundle Diameter Max (Imperial) | 0.3 |
| Bundle Diameter Max (Metric) | 7.7 |
| Nominal Diameter (Imperial) | 0.25 |
| Nominal Diameter (Metric) | 7 |
| Wall Thickness WT (Imperial) | 0.042 |
| Wall Thickness WT (Metric) | 1.1 |
HellermannTyton - SNP1.25GHS0C2 - Logistic & Packaging
| Package Quantity (Imperial) | 100 |
|---|---|
| Package Quantity (Metric) | 100 |
| Customs Number | 3.93E+09 |
HellermannTyton - SNP1.25GHS0C2 - Materials & Specifications
| Material | Polyamide 6.6 glass filled impact modified heat stabilized (PA66GF13%) |
|---|---|
| Material Shortcut | PA66GF13 |
| Flammability | UL 94 HB |
| UV Resistant (Yes/No) | No |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
