Description
Description

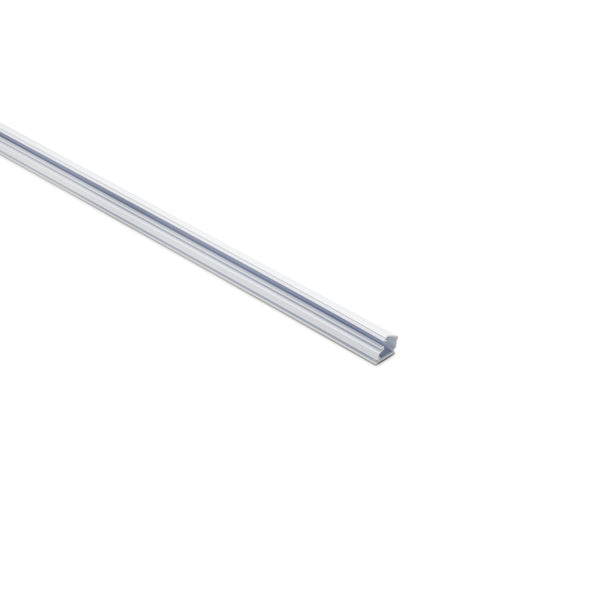

HellermannTyton’s low voltage raceway (TSR) is a one piece, non-metallic, adhesive backed, latching raceway designed to aesthetically organize and route communications wires, including high speed UTP cable and fiber optic cable, from the telecom room t o the work area.
HellermannTyton surface raceway systems are the ideal solution for routing communication and power cables. No need to break into existing walls - raceway systems are designed to route cable along wall surfaces. Made of a PVC material, components are durable and affordable; and the one-piece construction and adhesive tape backing make positioning and mounting easy. HellermannTyton offers a low voltage TSR system and a power rated TSRP system that are available in three different diameters to accommodate different cable and wire bundle and conduit sizes. Both systems include a complete line of fittings and junction boxes that allow for clean and professional installations.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - TSR1W-8A - Features
- Tamper resistant, self-locking hidden positive latch permits quick re-entry as well as providing a secure installation of premise wire.
- Fittings incorporate a minimum 1" bend radius per ANSI/TIA-568-C and 569-A standards.
- Rubber-based, foam-tape adhesive with high ultimate bond strength conforms to any surface.
- Flexible hinge allows the raceway to endure numerous openings without creating discoloration or stress cracking
Specifications
Specifications
HellermannTyton - TSR1W-8A - Product Categories
- Hardware
- Cable Management
- Cable Runway
- Routing, Protection and Insulation
- Surface Raceway
- Low-Voltage Raceway Channels
HellermannTyton - TSR1W-8A - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Components | Solid Duct |
| Type | Cable Routing / Wiring Duct |
| UNSPSC Code | 39131700 |
HellermannTyton - TSR1W-8A - Base Data
| Article Number | 250-01802 |
|---|---|
| Type | TSR1-8A |
| Color | White (WH) |
| Quantity Per | carton |
| Short Description | One Piece Surface Raceway, 3/4", 8.0 ft Long, PVC, White, 160ft/Carton |
| Global Part Name | TSR1-8A-PVC-WH |
HellermannTyton - TSR1W-8A - Product Dimensions
| Length L (Imperial) | 8 |
|---|---|
| Length L (Metric) | 2.44 |
| Width W (Imperial) | 0.75 |
| Width W (Metric) | 19.05 |
| Height H (Imperial) | 0.5 |
| Height H (Metric) | 12.7 |
HellermannTyton - TSR1W-8A - Logistic & Packaging
| Package Quantity (Imperial) | 160 |
|---|---|
| Package Quantity (Metric) | 48.8 |
| Customs Number | 3.93E+09 |
HellermannTyton - TSR1W-8A - Materials & Specifications
| Material | Polyvinylchloride (PVC) |
|---|---|
| Material Shortcut | PVC |
| Flammability | UL 94 V-0 |
| Halogen Free | No |
| UV Resistant (Yes/No) | No |
| Operating Temperature | +122°F (+50°C) |
| Reach Compliant (Article 33) | No |
| ROHS Compliant | Yes |
