Brand: HellermannTyton | SKU: 917621

HellermannTyton TSRPW-JBD2 | Dual Gang Junction Box, 2.77" Deep, 3-Piece, Pvc, White, 1/Bg

Regular price $15.83
Shipping calculated at checkout.
  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

Description

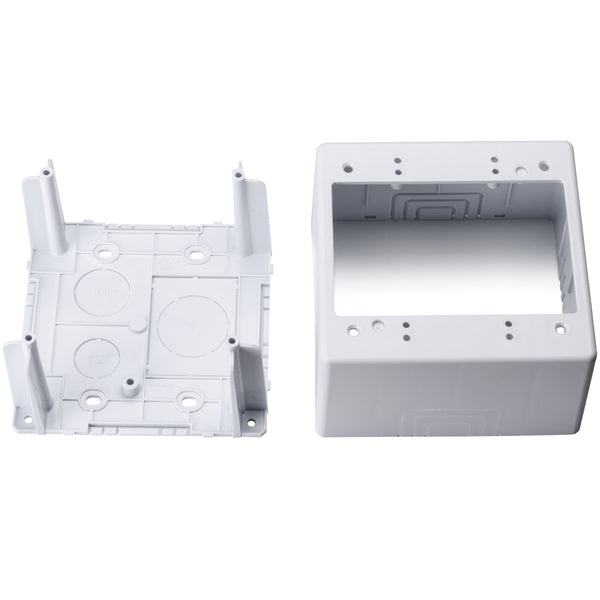

HellermannTyton TSRPW-JBD2 | Dual Gang Junction Box, 2.77" Deep, 3-Piece, Pvc, White, 1/Bg

Offered in a dual or single gang format, HellermannTyton’s power-rated junction boxes are versatile enough for any network cabling application. Available in varying depths, these boxes are all equipped with concentric knockouts on all four sides for ev ery TSRP size of raceway to eliminate routing and installation inconvenience. All junction boxes come with adhesive strips on the back of the base and #6 screws to secure the box to the base.

Offered in a dual or single gang format, HellermannTyton’s power-rated junction boxes are versatile enough for any network cabling application. Available in varying depths, these boxes are all equipped with concentric knockouts on all four sides for every TSRP size of raceway to eliminate routing and installation inconvenience. All junction boxes come with adhesive strips on the back of the base and #6 screws to secure the box to the base.

About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.

HellermannTyton - TSRPW-JBD2 - Features

  • Junction boxes can be used for electrical or data outlets.
  • Rubber-based foam tape adhesive with high ultimate bond strength, which conforms to any surface.
  • Pre-scored knockouts on the base and all four sides remove easily to accomosate 0.5", 0.75" or 1.0" diameter conduit and all HellermannTyton TSR/TSRP raceway sizes.
  • Simple two piece design is easy to install and includes foam tape backing with rubber based adhesive to assist with temporary positioning and mounting.
  • Accomodates a variety of alarm/detector and fixture makes and models.
  • PVC construction is lightweight and durable.
  • Covers are designed to overlap raceway mating points to hide uneven cuts.
  • Fittings incorporate a minimum 1" bend radius per TIA/EIA 568-B and 569-A standards.
  • UL 5A Listed to 600V and CSA Certified to 300V (not to exceed 10 lbs. per UL and 5 lbs. per CSA.)

Specifications

HellermannTyton - TSRPW-JBD2 - Product Categories

  • Hardware
  • Cable Management
  • Cable Runway
  • Routing, Protection and Insulation
  • Surface Raceway
  • Power Rated Raceway Fittings and Junction Boxes

HellermannTyton - TSRPW-JBD2 - Specifications

Brand NameHellermannTyton
ComponentsCouplers / Junctions
FinishWhite
MaterialPvc
TypeCable Routing / Wiring Duct
UNSPSC Code39131700

HellermannTyton - TSRPW-JBD2 - Base Data

Article Number250-00202
TypeTSRP-JBD2
ColorWhite (WH)
Quantity PerEA
Short DescriptionDual Gang Junction Box, 2.77" Deep, 3-Piece, PVC, White, 1/bg
Global Part NameTSRP-JBD2-PVC-WH

HellermannTyton - TSRPW-JBD2 - Product Dimensions

Length L (Imperial)4.94
Length L (Metric)125.48
Width W (Imperial)5.02
Width W (Metric)127.51
Height H (Imperial)2.77
Height H (Metric)70.36

HellermannTyton - TSRPW-JBD2 - Logistic & Packaging

Package Quantity (Imperial)1
Package Quantity (Metric)1
Customs Number3.93E+09

HellermannTyton - TSRPW-JBD2 - Materials & Specifications

MaterialPolyvinylchloride (PVC)
Material ShortcutPVC
FlammabilityUL 94 V-0
Halogen FreeNo
UV Resistant (Yes/No)No
Operating Temperature+122°F (+50°C)
Reach Compliant (Article 33)No
ROHS CompliantYes
UL Listed (US and Canada)Yes
UL Listed (US)Yes
