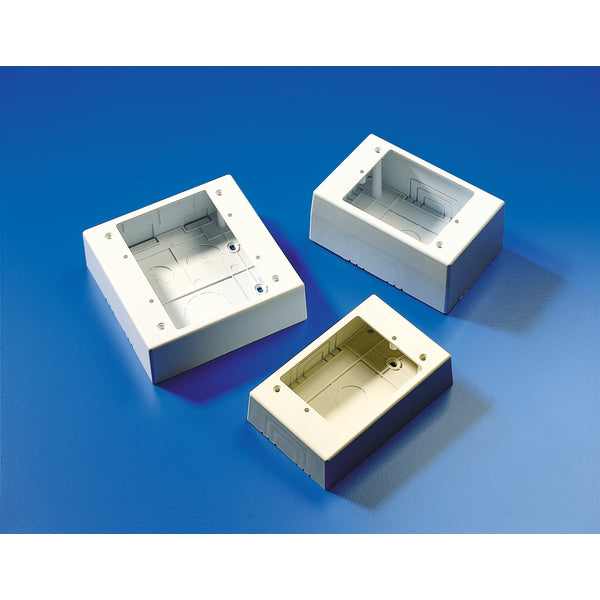

HellermannTyton TSRW-JB3 | Single Gang Junction Box, 2.77" Deep, Pvc, White, 1/Bg
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
HellermannTyton TSRW-JB3 | Single Gang Junction Box, 2.77" Dee...
Description
Description
Offered in dual or single gang format, HellermannTyton’s Low Voltage Junction Boxes are versatile enough for any network cabling application. Available in varying depths, these boxes are all equipped with concentric knockouts on all four sides for ever y TSR size of raceway to eliminate routing and installation inconvenience. all junction boxes come with adhesive strips on the back of the base and #6 screws to secure the box to the base.
Offered in dual or single gang format, HellermannTyton's Low Voltage Junction Boxes are versatile enough for any network cabling application. Available in varying depths, these boxes are all equipped with concentric knockouts on all four sides for every TSR size of raceway to eliminate routing and installation inconvenience. all junction boxes come with adhesive strips on the back of the base and #6 screws to secure the box to the base.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - TSRW-JB3 - Features
- Tamper resistant, self-locking hidden positive latch permits quick re-entry as well as providing a secure installation of premise wire.
- Fittings incorporate a minimum 1" bend radius per ANSI/TIA-568-C and 569-A standards.
- Rubber-based, foam-tape adhesive with high ultimate bond strength conforms to any surface.
- Flexible hinge allows the raceway to endure numerous openings without creating discoloration or stress cracking
- Pre-scored knockouts on the base and all four sides remove easily to accomosate 0.5", 0.75" or 1.0" diameter conduit and all HellermannTyton TSR/TSRP raceway sizes.
- Simple two piece design is easy to install and includes foam tape backing with rubber based adhesive to assist with temporary positioning and mounting.
- Accomodates a variety of alarm/detector and fixture makes and models.
- PVC construction is lightweight and durable.
- Covers are designed to overlap raceway mating points to hide uneven cuts.
- Fittings incorporate a minimum 1" bend radius per TIA/EIA 568-B and 569-A standards.
- UL 5A Listed to 600V and CSA Certified to 300V (not to exceed 10 lbs. per UL and 5 lbs. per CSA.)
Specifications
Specifications
HellermannTyton - TSRW-JB3 - Product Categories
- Hardware
- Cable Management
- Cable Runway
- Routing, Protection and Insulation
- Surface Raceway
- Low-Voltage Raceway Fittings and Junction Boxes
HellermannTyton - TSRW-JB3 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Components | Couplers / Junctions |
| Finish | White |
| Material | Pvc |
| Type | Cable Routing / Wiring Duct |
| UNSPSC Code | 39131700 |
HellermannTyton - TSRW-JB3 - Base Data
| Article Number | 250-00192 |
|---|---|
| Type | TSR-JB3 |
| Color | White (WH) |
| Quantity Per | bag |
| Short Description | Single Gang Junction Box, 2.77" Deep, PVC, White, 1/bg |
| Global Part Name | TSR-JB3-PVC-WH |
HellermannTyton - TSRW-JB3 - Product Dimensions
| Length L (Imperial) | 4.95 |
|---|---|
| Length L (Metric) | 125.73 |
| Width W (Imperial) | 3.2 |
| Width W (Metric) | 81.28 |
| Height H (Imperial) | 2.77 |
| Height H (Metric) | 70.36 |
HellermannTyton - TSRW-JB3 - Logistic & Packaging
| Package Quantity (Imperial) | 1 |
|---|---|
| Package Quantity (Metric) | 1 |
| Customs Number | 3.93E+09 |
HellermannTyton - TSRW-JB3 - Materials & Specifications
| Material | Polyvinylchloride (PVC) |
|---|---|
| Material Shortcut | PVC |
| Flammability | UL 94 V-0 |
| Halogen Free | No |
| UV Resistant (Yes/No) | No |
| Operating Temperature | +122°F (+50°C) |
| Reach Compliant (Article 33) | No |
| ROHS Compliant | Yes |
