Hes 310-4-24D-630 | Electric Strike, Voltage and Duty Continuous 24...
Description
Description

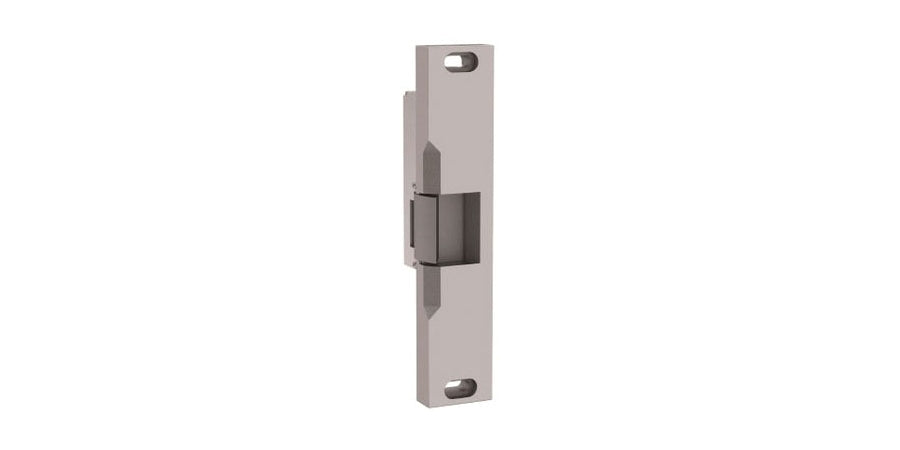

The 310-4 is a 3 hr. fire-rated, industrial electric strike designed for extreme heavy-duty applications. The all stainless steel construction of this device makes it ideal for high-abuse applications that would disable other electric strikes. The 310-4 has a unique 3/4 in. face plate with an integrated 1/4 in. base shim that can be removed in the field to accommodate rim exit devices with a 1/2 in. or 3/4 in. throw latchbolt.
Specifications
Specifications
Hes - 310-4-24D-630 - Product Categories
- Security
- Access Control, Door Hardware and Locks
- Electrified Door Hardware
- Electric Strike
Hes - 310-4-24D-630 - Specifications
| Manufacturer Name | Hes |
|---|---|
| Manufacturer Part Number | 310-4-24D-630 |
| Item Description | Electric Strike, Voltage and Duty Continuous 24 VDC, 3/4 in. Max Latch L, Hollow Metal/Wood Frame |
| Ansi Grade | Grade 1 |
| Finish | Us32D Satin Stainless Steel |
| Frame Material | Hollow Metal/Wood |
| Locking State | Fail-Secure (Power To Unlock) |
| Max Latch Length | 3/4 In. |
| Mounting | Surface-Mount |
| Product Type | Electric Strike |
| Pull Strength | 1500 Lb. |
| Ul | Ul 3-Hour Fire And Burglary-Resistance |
| Voltage And Duty Continuous | 24 Vdc |
| Voltage And Duty Intermittent | 24 Vdc Intermittent Duty |
| Warranty | 5 Year |
