Brand: Hes
|
SKU:
CS507380

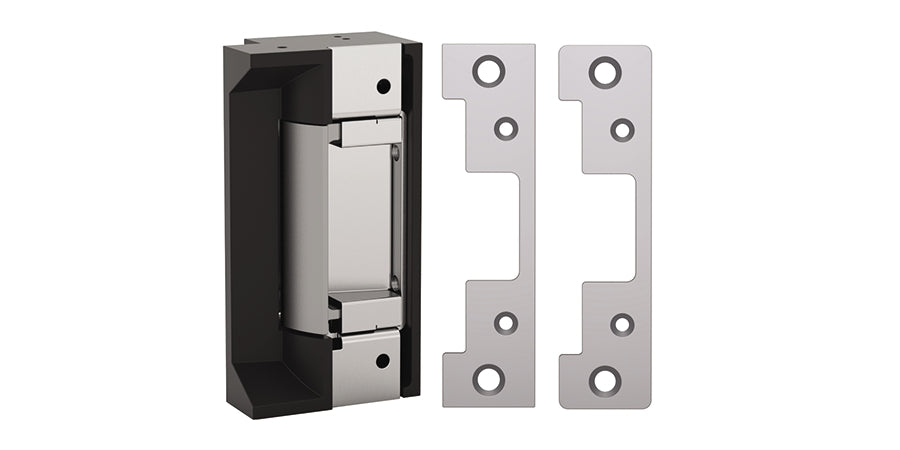

Hes 5000C-12/24D-63 | Electric Strike, 12/24 VDC, 1500 lbs load, Satin Stainless Steel, Works With Cylindrical Lockset
Regular price
$180.75
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hes 5000C-12/24D-63 | Electric Strike, 12/24 VDC, 1500 lbs load, Sa...
Regular price
$180.75
Unit price
Description
Description
Hes 5000C-12/24D-63 | Electric Strike, 12/24 VDC, 1500 lbs load, Satin Stainless Steel, Works With Cylindrical Lockset
The 5000 series is a compact, high performance electric strike designed for low profile openings where there is limited space behind the jamb. Its strength is derived from a unique keeper pin locking design, enabling the 5000 to exceed the ratings of the frame, door and locking hardware. This field selectable fail secure/fail safe unit is easy to install and accommodates latchbolts up to 5/8 in. throw.
Specifications
Specifications
Hes - 5000C-12/24D-63 - Specifications
| ANSI Grade | Grade 1 |
|---|---|
| Color | Silver |
| Finish | US32D Satin Stainless Steel |
| Frame Material | Hollow Metal/Wood |
| Locking State | Selectable FS or FSE |
| Max Latch Length | Maximum 5/8 in. Throw |
| Mounting | For Centerline Installations |
| Product Type | Complete Electric Strike |
| Pull Strength | 1500 lb. |
| Stranding | 26 Strands per Conductor |
| UL | UL Burglary Resistance |
| Voltage and Duty Continuous | 12/24 VAC/DC |
| Voltage and Duty Intermittent | 12/24 VAC/DC |
| Warranty | 5 Year Limited |
