Hes 5000C12/24DLBM | Electric Strike, Locking State Selectable FS o...
Regular price
$254.76
Unit price
Brand: Hes
|
SKU:
CS273967
Regular price
$254.76
Unit price
Description
Description

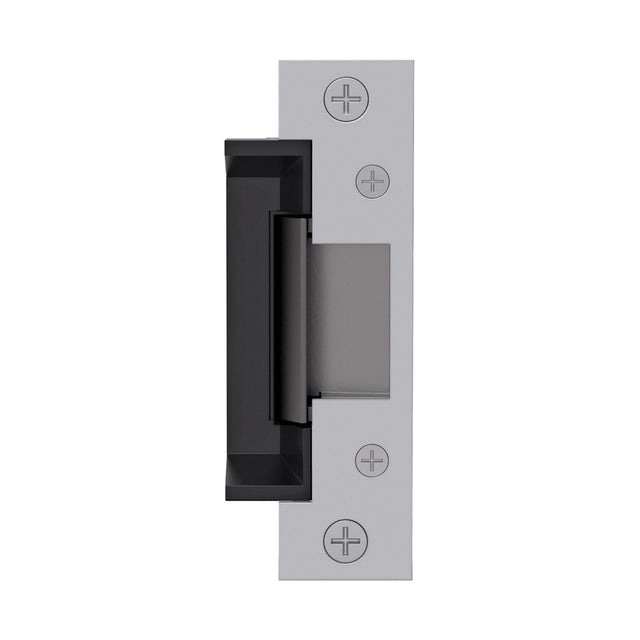

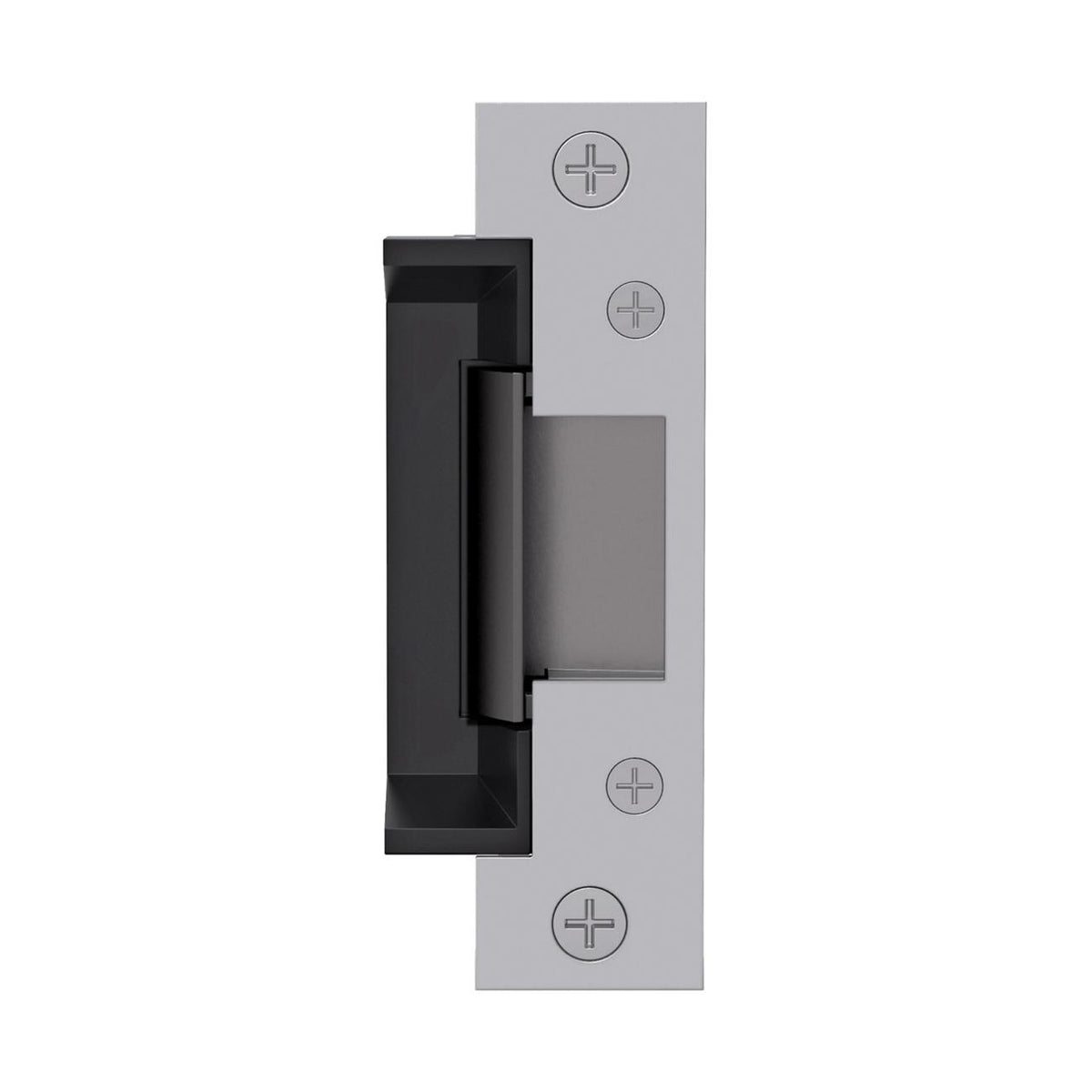

Hes 5000C12/24DLBM | Electric Strike, Locking State Selectable FS or FSE
Electric Strike; Locking State: Selectable FS or FSE; 1000 to 1500 lb. Pull Strength; Selectable 12/24 VDC; 12/24 VAC/DC; 240 mA at 12 VDC, 120 mA at 24 VDC Current; Latchbolt Monitor Switch; 5/8 in. Throw Max Latch Length
Specifications
Specifications
Hes - 5000C12/24DLBM - Product Categories
- Security
- Access Control, Door Hardware and Locks
- Electrified Door Hardware
- Electric Strike
Hes - 5000C12/24DLBM - Specifications
| Manufacturer Name | Hes |
|---|---|
| Manufacturer Part Number | 5000C12/24DLBM |
| Item Description | Electric Strike, Locking State Selectable FS or FSE |
| Ansi Grade | Grade 1 |
| Finish | Us32D Satin Stainless Steel |
| Frame Material | Hollow Metal/Wood |
| Locking State | Selectable Fs Or Fse |
| Max Latch Length | Maximum 5/8 In. Throw |
| Mounting | For Centerline Installations |
| Product Type | Complete Electric Strike |
| Pull Strength | 1500 Lb. |
| Stranding | 26 Strands Per Conductor |
| Switches | Latchbolt Monitor |
| Ul | Ul Burglary Resistance |
| Voltage And Duty Continuous | 12/24 Vac/Dc |
| Voltage And Duty Intermittent | 12 Or 24 Vdc |
| Warranty | 5 Year Limited |
