Description

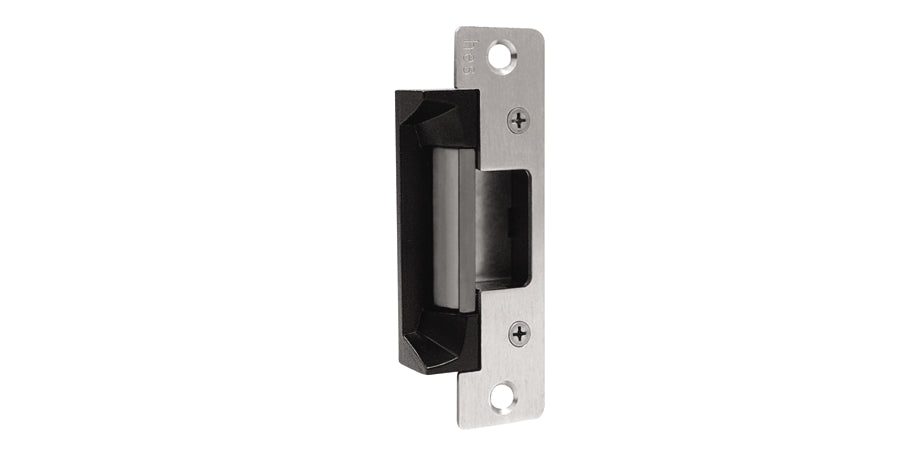

Hes 5200-12/24D-LBM | Electric Strike Body, Voltage and Duty Continuous 12/24 VDC, Locking State Selectable

The 5200 Series electric strike features an in frame horizontal adjustable design to simplify the installation process. This feature allows the installer to easily adjust the electric strike opening to accommodate the horizontal position of the latchbolt after the strike has been installed. This field-selectable fail-secure/fail-safe unit is easy-to-install and accommodates latchbolts up to a 3/4 in. throw.

Specifications

Hes - 5200-12/24D-LBM - Product Categories

Security
Access Control, Door Hardware and Locks
Electrified Door Hardware
Electric Strike

Hes - 5200-12/24D-LBM - Specifications

Manufacturer Name	Hes
Manufacturer Part Number	5200-12/24D-LBM
Item Description	Electric Strike Body, Voltage and Duty Continuous 12/24 VDC, Locking State Selectable
Ansi Grade	Grade 1
Finish	Us32D Satin Stainless Steel
Frame Material	Hollow Metal/Wood
Locking State	Selectable
Max Latch Length	3/4 In.
Mounting	Surface-Mount
Product Type	Electric Strike Body
Pull Strength	1500 Lb.
Switches	Latchbolt Monitor
Ul	Ul Burglary-Resistance
Voltage And Duty Continuous	12/24 Vdc
Voltage And Duty Intermittent	Selectable 12/24 Vac/Dc Intermittent
Warranty	5 Year

Documents and Downloads

Hes 5200-12/24D-LBM Data Sheet
