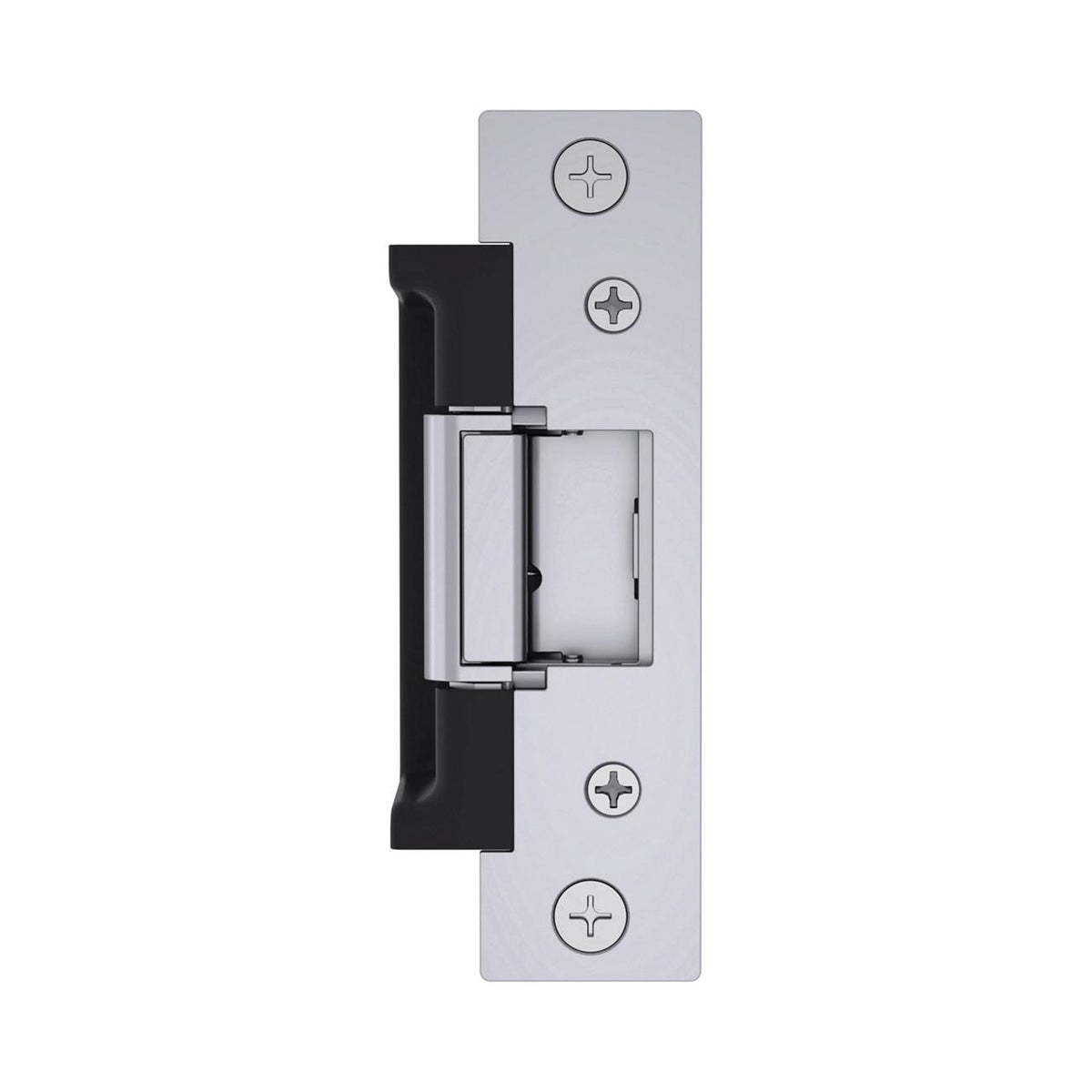

Hes 7000C12/24D630L | Electric Strike, Voltage and Duty Continuous: 12/24 VDC, Locking State: Selectable, Surface-Mount
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hes 7000C12/24D630L | Electric Strike, Voltage and Duty Continuous:...
Description
Description
The 7000 Series offers two solutions to address preloaded doors. The in frame adjustable feature allows the installer to easily adjust the electric strike opening to accommodate the horizontal position of the latchbolt after installation. The preload release function allows the electric strike to operate smoothly throughout the year under varying loads on the door caused by air-conditioning pressure, changes in the weather, warped doors or doors with weather stripping that often bind standard electric strikes. This unit accommodates cylindrical latchbolts up to 5/8 in. throw and rim exit latchbolts up to 3/4 in. throw.
Hes - 7000C12/24D630L - Features
- Stainless steel construction
- Tamper resistant
- Endurance 1,000,000 cycles
- Field selectable fail secure/fail safe
- Accommodates preload (fail secure only)
- Horizontal adjustment
- Non-handed
Specifications
Specifications
Hes - 7000C12/24D630L - Specifications
| ANSI Grade | Grade 1 |
|---|---|
| Finish | US32D Satin Stainless Steel |
| Frame Material | Hollow Metal/Wood |
| Locking State | Selectable |
| Max Latch Length | 5/8 in. |
| Mounting | Surface-Mount |
| Product Type | Complete Electric Strike |
| Pull Strength | 1500 lb. |
| Switches | Latchbolt Monitor |
| UL | UL Burglary-Resistance |
| Voltage and Duty Continuous | 12/24 VDC |
| Warranty | 5 Year |
