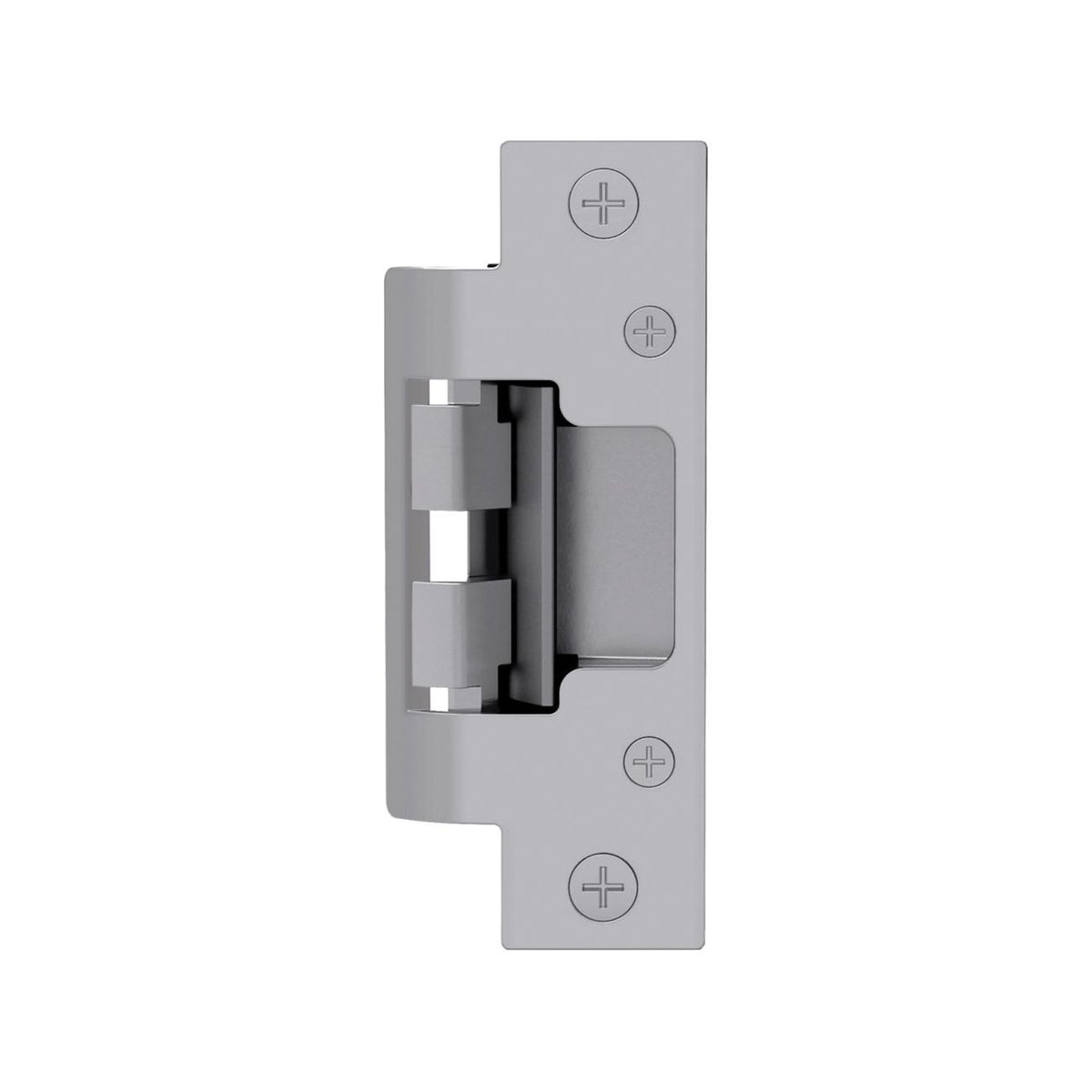

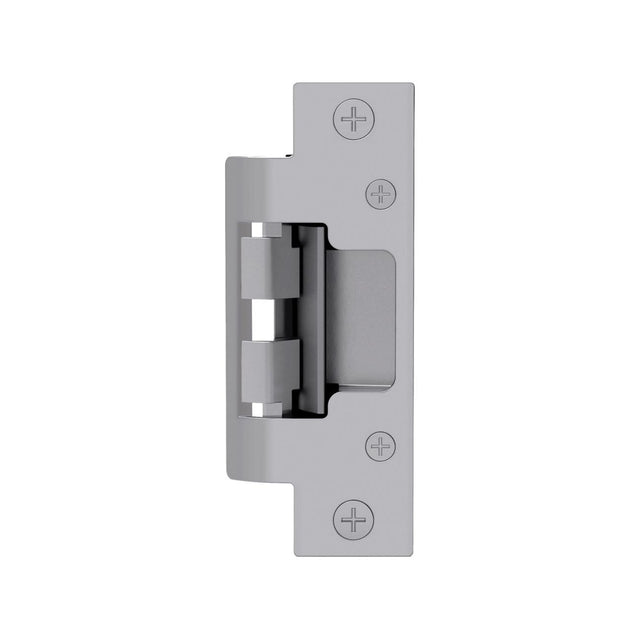

Hes 8000C-12/24D-63 | Electric Strike, 12/24 VDC, 0.24/0.12A, 1500 lbs Load, Satin Stainless Steel, With cylindrical Locksets
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hes 8000C-12/24D-63 | Electric Strike, 12/24 VDC, 0.24/0.12A, 1500 ...
Description
Description
The 8000 Series electrical strike is a compact, high-performance electric strike featuring a unique concealed design for use with cylindrical locksets. No cutting on the frame is required. Simply remove the existing strike plate, adjust the vertical alignment feature to the latchbolt centerline and install. Its strength is derived from a unique keeper pin locking design, enabling the 8000 to exceed the ratings of the frame, door and locking hardware. This field selectable fail safe/fail secure unit is easy to install and accommodates latchbolts up to 5/8 in. throw.
Specifications
Specifications
Hes - 8000C-12/24D-63 - Specifications
| ANSI Grade | Grade 1 |
|---|---|
| Color | Silver |
| Finish | US32D Satin Stainless Steel |
| Frame Material | Hollow Metal/Wood |
| Locking State | Selectable FS or FSE |
| Max Latch Length | Maximum 5/8 in. Throw |
| Mounting | For Centerline Installations |
| Product Type | Complete Electric Strike |
| Pull Strength | 1500 lb. |
| Stranding | 26 Strands per Conductor |
| UL | UL Burglary Resistance |
| Voltage and Duty Continuous | 12/24 VAC/DC |
| Voltage and Duty Intermittent | Selectable 12/24 VAC/DC Intermittent |
| Warranty | 5 Year Limited |
