Hes 8300C12/24D630 | Electric Strike, Voltage and Duty Continuous 1...
Description
Description

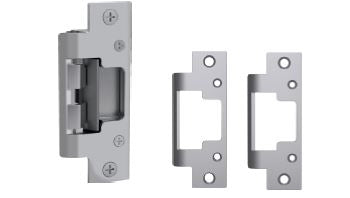

The 8300 Series is a fire-rated, compact, high-performance electric strike featuring a unique concealed design for use with cylindrical locksets. No cutting on the frame is required. Simply remove the existing strike plate, adjust the vertical alignment feature to the latchbolt centerline and install. Its strength is derived from a unique keeper pin locking design, enabling the 8300 to exceed the ratings of the frame, door and locking hardware. This unique electric strike is easy-to-install and complies with NFPA 80-07 guidelines for retrofit into fire-rated frames. The 8300 accommodates latchbolts up to 5/8 in. throw.
Specifications
Specifications
Hes - 8300C12/24D630 - Product Categories
- Security
- Access Control, Door Hardware and Locks
- Electrified Door Hardware
- Electric Strike
Hes - 8300C12/24D630 - Specifications
| Manufacturer Name | Hes |
|---|---|
| Manufacturer Part Number | 8300C12/24D630 |
| Item Description | Electric Strike, Voltage and Duty Continuous 12 VAC/DC, 24 VAC/DC, Locking State Selectable |
| Ansi Grade | Grade 1 |
| Finish | Us32D Satin Stainless Steel |
| Frame Material | Hollow Metal/Wood |
| Locking State | Selectable |
| Max Latch Length | 5/8 In. |
| Mounting | Surface-Mount |
| Product Type | Complete Electric Strike |
| Pull Strength | 1500 Lb. |
| Ul | Ul 3-Hour Fire And Burglary-Resistance |
| Voltage And Duty Continuous | 12/24 Vac/Dc |
| Voltage And Duty Intermittent | Selectable 12/24 Vac/Dc Intermittent |
| Warranty | 5 Year |
