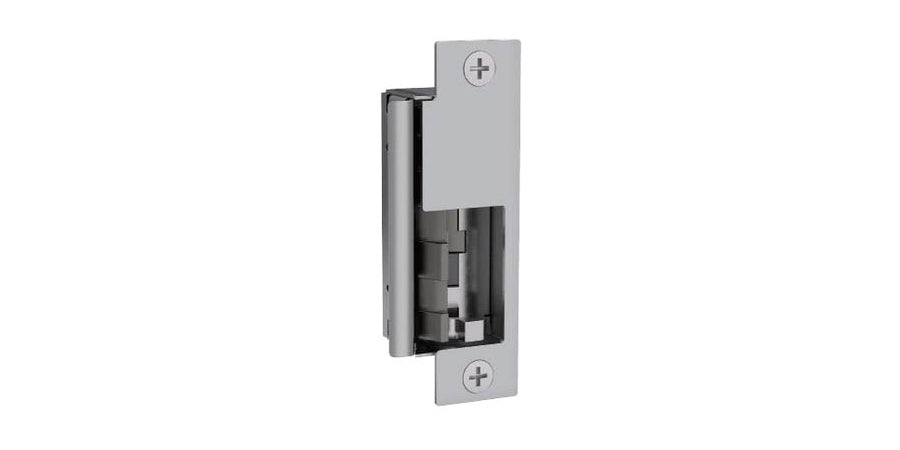

Hes 8500-12/24D-630 | Electric Strike Body, Voltage and Duty Continuous: 12 VAC/DC, 24 VAC/DC, 3/4 in. Max Latch L
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hes 8500-12/24D-630 | Electric Strike Body, Voltage and Duty Contin...
Description
Description
The 8500 Series is a fire-rated, compact, high-performance electric strike featuring a unique concealed design for use with mortise locksets without a deadbolt. Designed for fast, convenient installation, the 8500 installs with little or no modification to the frame. Simply remove the existing strike plate, remove the dust box and install. Its strength is derived from a unique keeper pin locking design, enabling the 8500 to exceed grade 1 ratings. This unique electric strike complies with NFPA 80-07 guidelines for retrofit into fire-rated frames. The 8500 accommodates mortise latchbolts up to 3/4 in. throw.
Hes - 8500-12/24D-630 - Features
- No cutting of the face of the frame
- Stainless steel construction
- Tamper resistant
- Static strength 1,500 lbs
- Dynamic strength 70 ft-lbs
- Endurance 500,000 cycles
- Field selectable fail safe / fail secure
Specifications
Specifications
Hes - 8500-12/24D-630 - Specifications
| ANSI Grade | Grade 1 |
|---|---|
| Finish | US32D Satin Stainless Steel |
| Frame Material | Hollow Metal/Wood |
| Locking State | Selectable |
| Max Latch Length | 3/4 in. |
| Mounting | Surface-Mount |
| Product Type | Electric Strike Body |
| Pull Strength | 1500 lb. |
| UL | UL 3-Hour Fire and Burglary-Resistance |
| Voltage and Duty Continuous | 12/24 VAC/DC |
| Voltage and Duty Intermittent | Selectable 12/24 VAC/DC Intermittent |
| Warranty | 5 Year |
