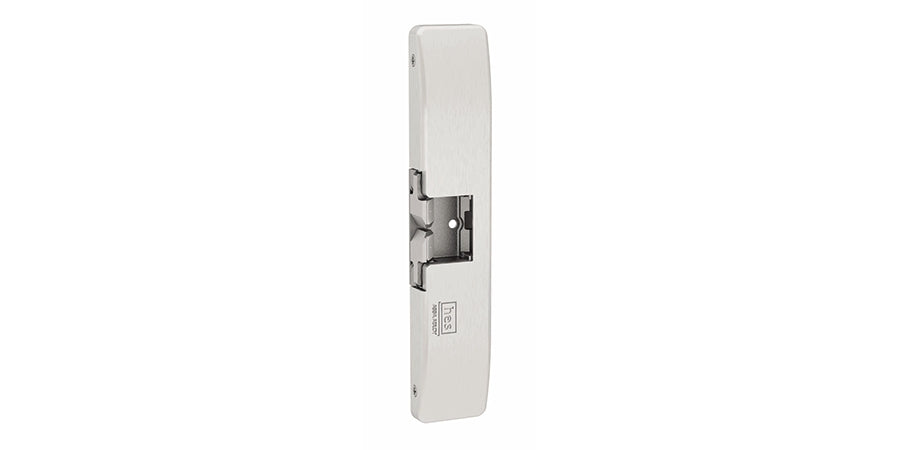

Hes 9500-630 | Surface Mounted Electric Strike
Description
Description
The HES 9500 Series is a 3 hour fire-rated, surface mounted electric strike designed to accommodate rim exit devices with a 3/4" Pullman latch. All components are completely encased within its 3/4" thick stainless steel housing, so no cutting on the frame is required for installation. Simply place the electric strike on the surface of the frame, align it with the exit latchbolt and install. Adjustments have never been easier as the base is now separate from the cover. The 9500 exceeds Grade 1 standards for strength and performance. It is field selectable for fail secure and fail safe operation, and for 12 or 24 VDC. This unique electric strike complies with NFPA 80-07 guidelines for retrofit into fire-rated frames.
Hes - 9500-630 - Features
- Installs in metal or wood frames (wood screws not included)
- Separate base and decorative cover for easy adjustments
- Stainless steel construction
- Tamper resistant
- Static strength 1,500 lbs
- Dynamic strength 70 ft-lbs
- Endurance 1,000,000 cycles
- Field selectable fail secure/fail safe
- Horizontal adjustability
Specifications
Specifications
Hes - 9500-630 - Specifications
| Adjustability | Horizontal |
|---|---|
| Voltage | 12/24 |
| Depth (in) | 0-3/4" |
| Height (in) | 9" |
| Dynamic Strength (ft-lbs) | 70 |
| Lock Type | Exit Device |
