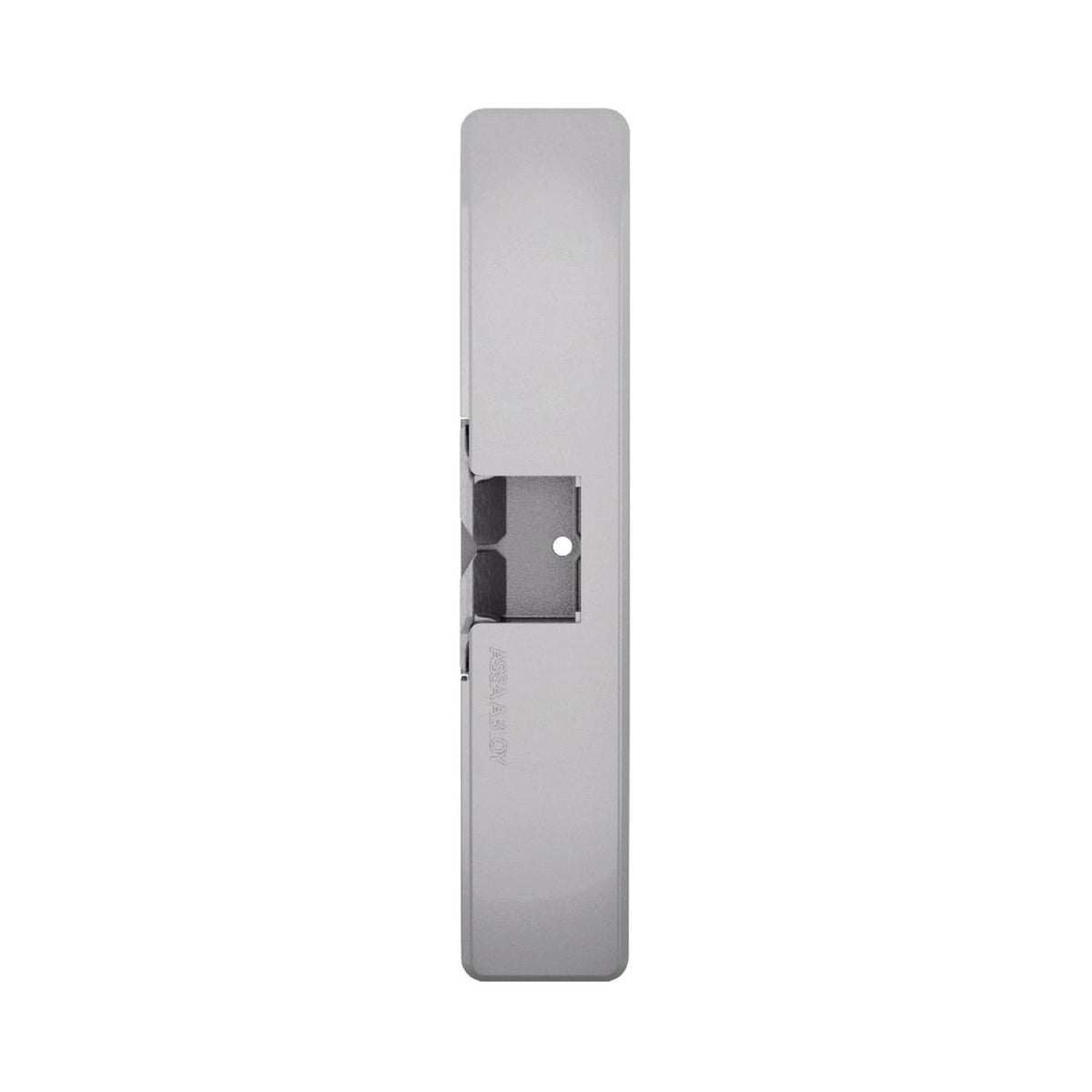

Hes 9600-613E | Surface Mounted Electric Strike
Description
Description
The 9600 Series Electric Strike is a windstorm resistant, surface mounted electric strike designed to accommodate rim exit devices with a 3/4" throw Pullman latchbolt. All components are completely encased within its 3/4" thick stainless steel housing, so no cutting on the frame is required for installation. Simply place the electric strike on the surface of the frame, align it with the exit latchbolt and install. Adjustments have never been easier as the base is now separate from the cover. It is field selectable for fail secure or fail safe operation, and for 12 or 24 VDC. The 9600 is a surface mounted electric strike designed with the strength and durability required to exceed the severe forces of ANSI Windstorm testing.
Hes - 9600-613E - Features
- Installs in metal or wood frames (wood screws not included)
- Separate base and decorative cover for easy adjustments
- Stainless steel construction
- Tamper resistant
- Static strength 2,000 lbs
- Dynamic strength 120 ft-lbs
- Endurance 1,000,000 cycles
- Field selectable fail safe/fail secure
- Horizontal adjustability
- Non-handed
Specifications
Specifications
Hes - 9600-613E - Specifications
| Adjustability | Horizontal |
|---|---|
| Voltage | 12/24 |
| Depth (in) | 0-3/4" |
| Height (in) | 9" |
| Dynamic Strength (ft-lbs) | 120 |
| Lock Type | Exit Device |
