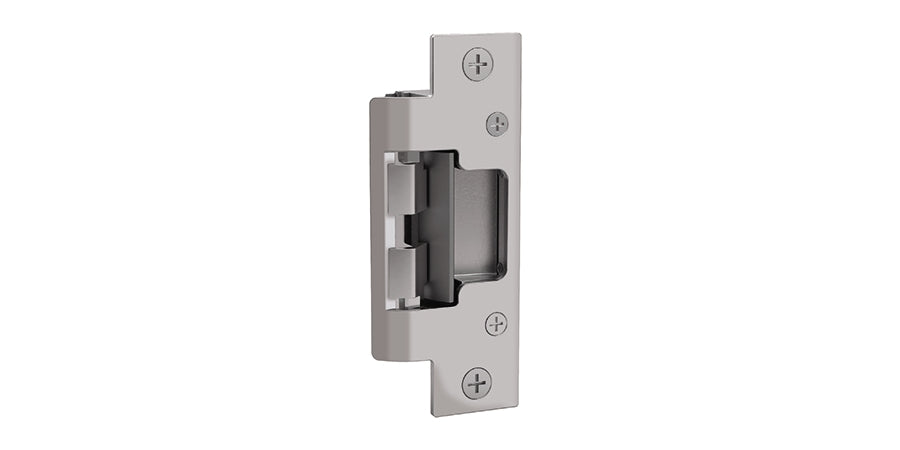

Hes SB:8000-12/24D | Electric Strike Body, Voltage and Duty Continuous 12 VAC/DC, 24 VAC/DC, Hollow Metal/Wood Frame
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hes SB:8000-12/24D | Electric Strike Body, Voltage and Duty Continu...
Description
Description
The 8000 Series is a compact, high-performance electric strike featuring a unique concealed design for use with cylindrical locksets. No cutting on-the frame is required. Simply remove the existing strike plate, adjust the vertical alignment feature to the latch bolt centerline and install. Its strength is derived from a unique keeper pin locking design, enabling the 8000 to exceed the ratings of the frame, door and locking hardware. This field-selectable fail-secure/fail-safe unit is easy-to-install and accommodates latch bolts up to 5/8 in. throw.
Specifications
Specifications
Hes - SB:8000-12/24D - Product Categories
- Security
- Access Control, Door Hardware and Locks
- Electrified Door Hardware
- Electric Strike
Hes - SB:8000-12/24D - Specifications
| Manufacturer Name | Hes |
|---|---|
| Manufacturer Part Number | SB:8000-12/24D |
| Item Description | Electric Strike Body, Voltage and Duty Continuous 12 VAC/DC, 24 VAC/DC, Hollow Metal/Wood Frame |
| Ansi Grade | Grade 1 |
| Frame Material | Hollow Metal/Wood |
| Locking State | Fail-Secure (Power To Unlock) |
| Max Latch Length | Maximum 5/8 In. Throw |
| Mounting | Surface-Mount |
| Product Type | Electric Strike Body |
| Pull Strength | 1500 Lb. |
| Ul | Ul Burglary Resistance |
| Voltage And Duty Continuous | 12/24 Vac/Dc |
| Voltage And Duty Intermittent | Selectable 12/24 Vac/Dc Intermittent |
| Warranty | 5 Year |
