Description
Description

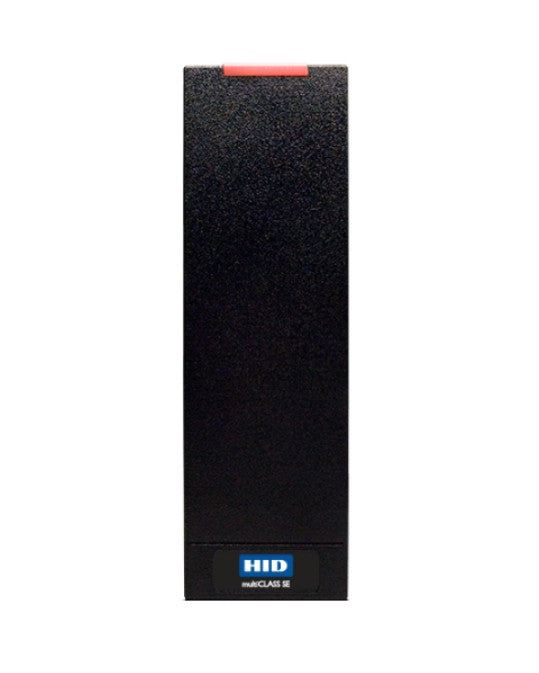

The multiCLASS SE RP15 is part of HID Global's iCLASS SE platform for adaptable, interoperable access control. Designed for door applications requiring a mullion style mounting, multiCLASS SE RP15 supports a broad array of high frequency 13.56 MHz and low frequency 125kHz credential technologies and a variety of form factors, including cards, fobs and mobile devices. Configurable to support HID Mobile Access®. multiCLASS SE® readers simplify migration from legacy technologies with support 125 kHz for HID Prox, Indala, AWID and EM4102, and provide customers the assurance that their existing investments can be leveraged to enhance their system as business requirements change. The technologyindependent readers also support iCLASS® Seos™ and iCLASS SE credential platforms, as well as standard iCLASS, MIFARE and MIFARE DESFire EV1 with custom data
models and other leading technologies.
Additionally, multiCLASS SE readers support mobile devices utilizing Seos, enabling a new class of portable identity credentials that can be securely provisioned and safely embedded into both fixed and mobile devices.
HID Global - 51100 - Features
- Adaptable – Interoperable with a growing range of technologies (iCLASS Seos®, iCLASS SE®, iCLASS®, MIFARE® Classic, MIFARE DESFire®EV1) and form factors including mobile devices.
- Powerfully Secure – The iCLASS SE platform’s Secure Identity Object® (SIO®) data model provides an extra layer of encryption for additional protection of identity data.
- Standardized Communications (OSDP) – Uses Open Supervised Device Protocol (OSDP) for secure communications between reader and controller.
- Multi-Layered Security – Ensures data authenticity and privacy through the multilayered security of HID’s SIO.
- EAL5+ Certified Secure Element Hardware – Provides tamper-proof protection of keys/cryptographic operations
- SIO Data Binding – Inhibits data cloning by binding an object to a specific credential
- Secured communications using OSDP with Secure Channel Protocol.
- Mobile device support using iCLASS Seos - Enables HID access control.
- SIO Portability – Provides technology independence and portability to other smart card technologies.
- Field Programmable Readers – Provides secure upgrades for migration and extended lifecycle.
- SIO Media Mapping – Simplifies deployment of third-party objects to multiple types of credentials.
- Intelligent Power Management (IPM) – Reduces reader power consumption by as much as 75% compared to standard operating mode.
- Flexible to support future technologies
- Support for 125kHz HID Prox, Indala, AWID and EM4102.
- Customization and management from a central location – Enables organization to make changes and manage all attached OSDP readers over RS485 wiring.
Specifications
Specifications
HID Global - 51100 - Specifications
| Color | Black |
|---|---|
| Keypad | No |
| Dimensions | 1.9" x 6.0" x 0.9" (4.8 cm x 15.3 cm x 2.3 cm) |
| Product Weight (Pigtail) | 5.2oz (149g) |
| Product Weight (Terminal Strip) | 4.3oz (124g) |
| Operating Voltage Range | 5-16 VDC, Linear supply recommended |
| Operating Temperature | -31º to 150º F (-35º to 65º C) |
| Storage Temperature | -67º to 185º F (-55º to 85º C) |
| Operating Humidity | 5% to 95% relative humidity non-condensing |
| Environmental Rating | Indoor/Outdoor IP55; IP65 if installed with optional gasket (IP65GSKT) |
| Transmit Frequency | 13.56 MHz & 125 kHz |
| Cryto Processor Hardware Common Criteria Rating | EAL5+ |
| UNSPSC Code | 46171500 |
| Manufacturer | HID Global Corporation |
