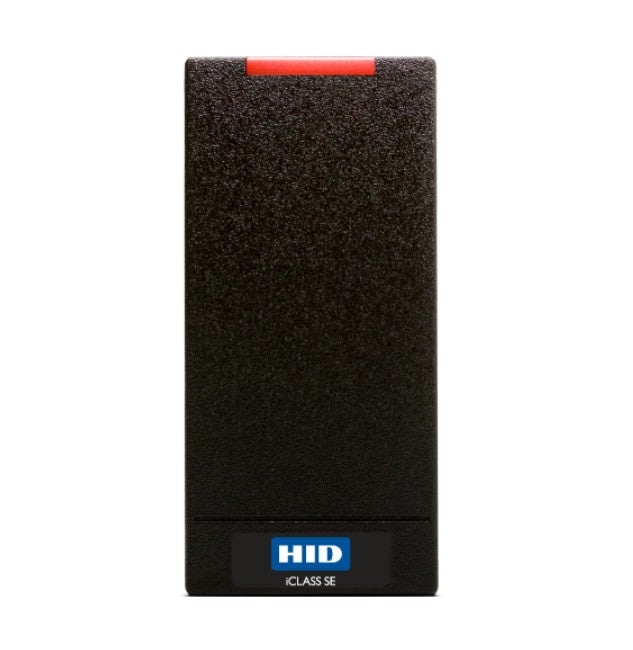

HID 900NDNNFK20174 | iCLASS SE R10 Mini-Mullion Contactless Smartca...
Description
Description
iCLASS SE R10 is part of HID Global's iCLASS SE platform for adaptable, interoperable access control. Designed for door applications requiring a small footprint card reader, iCLASS SE R10 supports a broad array of credential technologies and a variety of form factors including cards, fobs and mobile devices. Configurable to support HID Mobile Access®.
HID’s iCLASS SE platform for enhanced security, the readers utilize advanced authentication through the platform’s Secure Identity Object (SIO) data model for trusted and secure communication between the card and reader to help prevent unauthorized access. The iCLASS SE reader line is built on the Security Industry Association (SIA) Open Supervised Device Protocol (OSDP) standard which supports secure transmission of data from the reader to the controller.
HID Global - 900NDNNFK20174 - Features
- Adaptable – Interoperable with a growing range of technologies (iCLASS Seos® , iCLASS SE, iCLASS®, MIFARE® Classic, MIFARE DESFire®EV1) and form factors including mobile devices.
- Powerfully Secure – The iCLASS SE platform’s Secure Identity Object® (SIO®) data model provides an extra layer of encryption for additional protection of identity data
- Standardized Communications (OSDP) – Uses Open Supervised Device Protocol (OSDP) for secure communications between reader and controller.
- Multi-Layered Security - Supports data authenticity and privacy through the mulitlayered security of HID's SIO
- EAL5+ certified Secure Element hardware provides protection of keys and cryptographic operations
- Secured communications using OSDP with Secure Channel Protocol
- Expanded iCLASS Elite™ Program – Extends private security by protecting uniquely keyed credentials, SIOs and programming keys
- Mobile device support using iCLASS Seos - enabling HID access control
- Flexible to support future technologies
- Field Programmable Readers – Provides secure upgrades for migration and extended lifecycle
- Intelligent Power Management (IPM) – Reduces reader power consumption by as much as 75% compared to standard operating mode
- Recycled Content – Contributes toward building LEED credits
- SIO Media Mapping – Simplifies deployment of third-party objects to multiple types of credentials
- Industry standard communications using OSDP
Specifications
Specifications
HID Global - 900NDNNFK20174 - Specifications
| Dimensions | 1.9" x 4.1" x 0.9" (4.8 cm x 10.3 cm x 2.3 cm) |
|---|---|
| Product Weight (Pigtail) | 3.9 oz (113g) |
| Product Weight (Terminal Strip) | 2.9 oz (84g) |
| Color | Black |
| Keypad | No |
| Operating Voltage Range | 5-16 VDC |
| Current Draw - Standard Power Mode2 (mA) | 60 @ 16V |
| Current Draw - Intelligent Power Management (IPM) Mode2 (mA) | 35 @ 16V |
| Peak Current Draw - Standard Power or IPM Mode2 (mA) | 200 @ 16V |
| Power Consumption | 0.6 @ 16V |
| Operating Temperature | -31º to 150º F (-35º to 65º C) |
| Storage Temperature | -67º to 185º F (-55º to 85º C) |
| Operating Humidity | 5% to 95% relative humidity non-condensing |
| Environmental Rating | Indoor/Outdoor IP55; IP65 if installed with optional gasket |
| Transmit Frequency | 13.56 MHz |
| Mounting | Ideally suited for mullion-mounted door installations or any flat surface |
| Housing Material | UL94 Polycarbonate |
| Panel Connection | Pigtail or Terminal Strip |
| UNSPSC Code | 43211700 |
| Manufacturer | HID Global Corporation |
