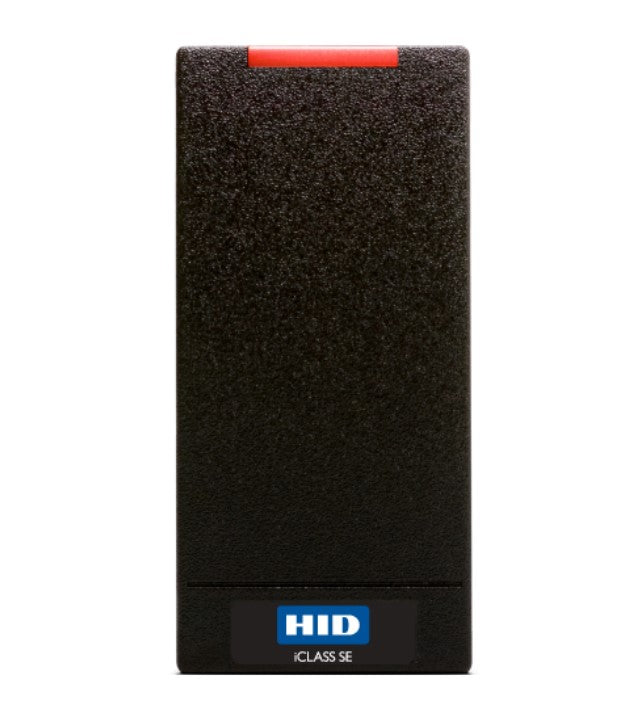

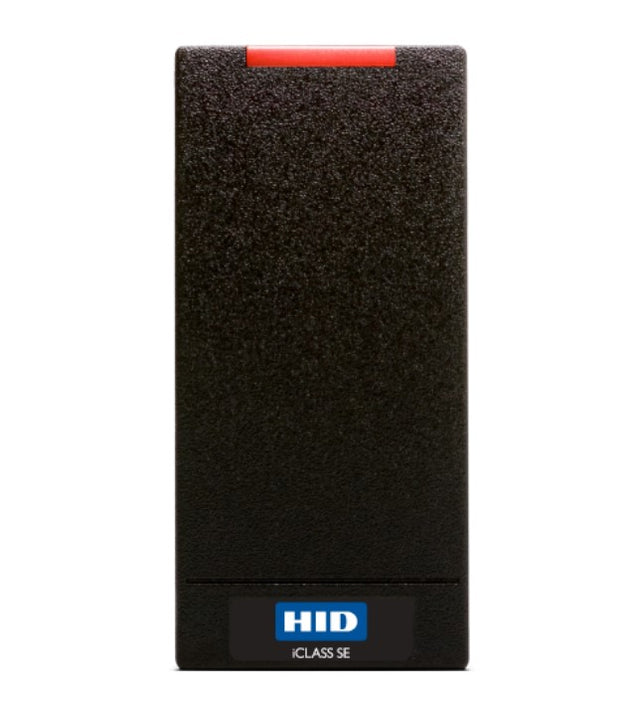

HID 900NWNTEKE0457 | iCLASS SE R10, Mini-Mullion Contactless Smartc...
Description
Description
iCLASS SE R10 is part of HID Global's iCLASS SE platform for adaptable, interoperable access control. Designed for door applications requiring a small footprint card reader, iCLASS SE R10 supports a broad array of credential technologies and a variety of form factors including cards, fobs and mobile devices. Configurable to support HID Mobile Access.
With a focus on sustainability, iCLASS SE platform readers include intelligent power management that reduces power consumption by as much as 59%. Selected models also have Environmental Product Declaration certification and Green Circle certification, which contributes toward LEED building credits.
HID - 900NWNTEKE0457 - Features
- Adaptable - Interoperable with a growing range of technologies (iCLASS Seos® , iCLASS SE, iCLASS®, MIFARE® Classic, MIFARE DESFire®EV1) and form factors including mobile devices.
- Powerfully Secure - The iCLASS SE platform’s Secure Identity Object® (SIO®) data model provides an extra layer of encryption for additional protection of identity data
- Standardized Communications (OSDP) - Uses Open Supervised Device Protocol (OSDP) for secure communications between reader and controller.
Specifications
Specifications
HID - 900NWNTEKE0457 - Specifications
| Base Part Numbe | 900N |
|---|---|
| Color | Black |
| Keypad | No |
| Dimensions | 1.9" x 4.1" x 0.9" |
| Product Weight | 3.9 oz (113g) |
| Current Draw | 60 @ 16V |
| Operating Temperature | -31º to 150º F (-35º to 65º C) |
| Storage Temperature | -67º to 185º F (-55º to 85º C) |
| Operating Humidity | 5% to 95% relative humidity non-condensing |
| Environmental Rating | Indoor/Outdoor IP55; IP65 if installed with optional gasket |
| Panel Connection | Pigtail or Terminal Strip |
| UL Ref Number | R10E |
| Warranty | Limited Lifetime |
