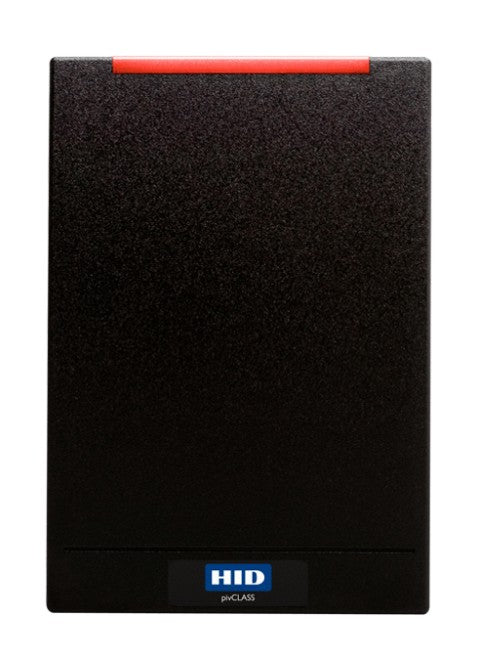

HID 920PHRTEK0043V | pivCLASS Reader RP40-H, Wall Switch
Description
Description
HID Global pivCLASS® Government Solutionsenable facilities to upgrade their existingphysical access control system (PACS) to FIPS201 compliance.The pivCLASS R10, R15, R40 readers and theirprox enabled versions deliver the "Controlled"assurance level (as defined in NIST SP 800-116)when used with the pivCLASS AuthenticationModule (PAM) to perform the following singlefactor authentication modes:CHUID + VIS Authentication – The pivCLASSsystem tests the signature on the PIV CardHolder Unique IDentifier (CHUID) data object.
The CHUID signature check ensures the card isauthentic (it came from a valid issuer) and hasintegrity (it has not been altered).Because the CHUID is a “free read” and willbe transmitted unencrypted to any reader, itcould be possible for perpetrators to capturea PIV card's CHUID and create a counterfeitcard. However, the pivCLASS signature checksecures against this threat and identifies cardsthat have been counterfeited or altered.*CAK Authentication – pivCLASS readers workwith the pivCLASS Authentication Module toperform a PKI challenge-response in additionto a signature check to validate the cardauthentication key (CAK). The challengeresponse test ensures the public key in thecard authentication certificate is bound tothe private key on the card. pivCLASS CAKauthentication secures against cards that havebeen counterfeited, altered, copied or cloned.pivCLASS readers are guaranteed to meetstringent specifications for operation, reliabilityand interoperability with other Genuine HID™products.
HID Global - 920PHRTEK0043V - Features
- Contactless reader solution for "Controlled" security areas – Meets NIST's "Controlled" security area assurance level requirements with a single-factor authentication mode: CHUID + VIS or CAK.
- Supports multiple card types – PIV, PIV-I, CAC, CIV (a.k.a., PIV-C), TWIC and FRAC, as well as iCLASS® and HID Prox® cards for easy, phased transitions from legacy technology to new PKI-enabled smart cards.
- Architected for maximum security and affordability
- pivCLASS utilizes the pivCLASS® Authentication Module to perform the cryptographic functionality and to pass Wiegand-formatted data to the PACS controller
- Locating the critical security operations within the secure perimeter, rather than on the attack side of the door, increases security and reader affordability
- Available in mullion, mini-mullion and wall switch form factors designed to mount and cover single-gang switch boxes.
- Available with either a pigtail or terminal strip wiring termination.
Specifications
Specifications
HID Global - 920PHRTEK0043V - Specifications
| 125 kHz Card Compatibility | HID, AWID, EM4102 |
|---|---|
| Color | Black |
| Dimensions | 3.3" x 4.8" x 1.0" (8.4 x 12.2 x 2.4 cm) |
| Product Weight (Pigtail) | 7.8 oz. (222 g) |
| Product Weight (Terminal Strip | 7.6 oz. (216 g) |
| Operating Voltage Range | +12VDC |
| Operating Temperature | -30º to 150º F (-35º to 65º C) |
| Operating Humidity | 5% to 95% relative humidity non-condensing |
| Storage Temperature | -67º to 185º F (-55º to 85º C) |
| Environmental | Indoor / Outdoor; IP55, IP65 if installed with optional gasket (IP65GSKT) |
| Wiring Connection | Pigtail or Terminal Strip |
| Housing Material | UL94 Polycarbonate |
| Product Type | Access Reader |
| Sales Category | Electric Readers And Keypad |
| UNSPSC Code | 43211700 |
| Manufacturer | HID Global Corporation |
