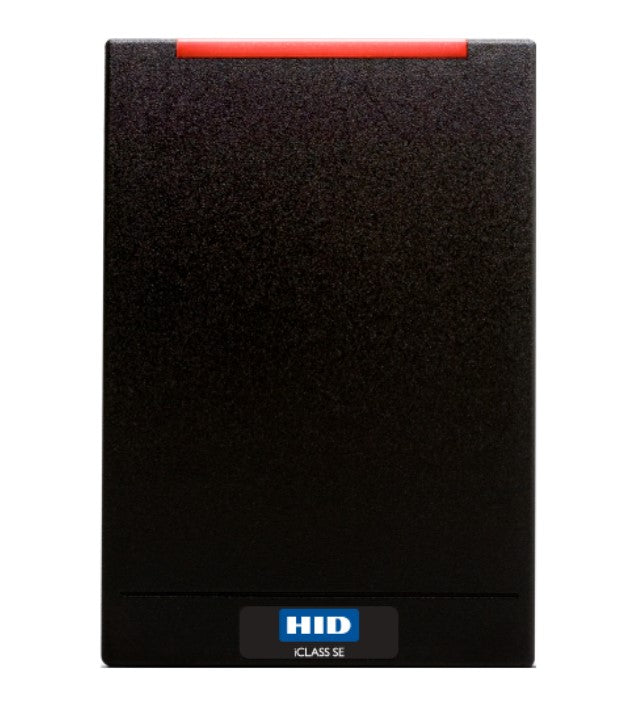

HID 921NMNNEKMA0AU | iCLASS SE R40 Contactless Smart Card Reader Wall Switch
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
HID 921NMNNEKMA0AU | iCLASS SE R40 Contactless Smart Card Reader Wa...
Description
Description
iCLASS SE R40 is part of HID Global's iCLASS SE platform for adaptable, interoperable access control. Designed for door applications requiring standard wall switch mounting, iCLASS SE R40 supports a broad array of credential technologies and a variety of form factors, including cards, fobs and mobile devices. Configurable to support HID Mobile Access
With a focus on sustainability, iCLASS SE platform readers include intelligent power management that reduces power consumption by as much as 59%. Selected models also have Environmental Product Declaration certification and Green Circle certification, which contributes toward LEED building credits.
HID - 921NMNNEKMA0AU - Features
- Adaptable - Interoperable with a growing range of technologies (iCLASS SEOS®, iCLASS SE, iCLASS, MIFARE® Classic, MIFARE DESFire® EV1) and form factors including mobile devices.
- Powerfully Secure - The iCLASS SE platform’s Secure Identity Object™ (SIO™) data model provides an extra layer of encryption for additional protection of identity data
- Standardized Communications (OSDP) - Uses Open Supervised Device Protocol (OSDP) for secure communications between reader and controller.
Specifications
Specifications
HID - 921NMNNEKMA0AU - Specifications
| Base Part Number | 921N |
|---|---|
| Color | Black |
| Keypad | Yes (4x3) |
| Dimensions | 3.3" x 4.8" x 1.1" (8.5 cm x 12.2 cm x 2.8 cm) |
| Product Weight | 9.0 oz (256g) |
| Operating Voltage Range | 5-16 VDC |
| Current Draw | 85 @ 16V |
| Operating Temperature | -31º to 150º F (-35º to 65º C) |
| Storage Temperature | -67º to 185º F (-55º to 85º C) |
| Operating Humidity | 5% to 95% relative humidity non-condensing |
| Environmental Rating | Indoor/Outdoor IP55; IP65 if installed with optional gasket |
| Transmit Frequency | 13.56 MHz |
| Housing Material | Housing Material |
| UL Ref Number | RK40E |
| Warranty | Limited Lifetime |
