HID 921NMNTEKEA0CA | multiCLASS SE RK40, Smart Card Reader, Wall sw...
Description
Description

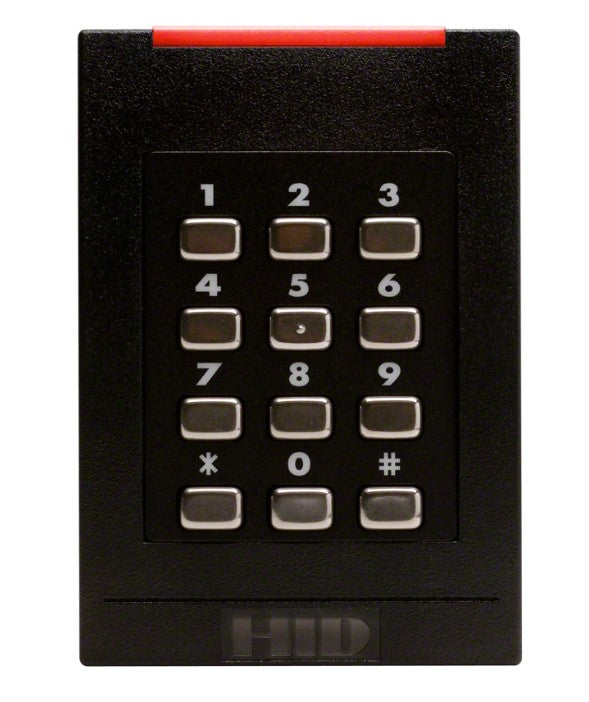

Using 13.56 MHz contactless smart card technology, the iCLASS RK40 keypad smart card reader provides a powerful solution. Combine a contactless card presentation with a personal identification number (PIN) to support dual authentication of identity. Or, configure the panel for single-factor authentication, using only a card or a PIN. The PIN can be verified either at the access control panel or locally by the keypad smart card reader. When verified locally, the PIN must be programmed into the iCLASS card.
Featuring crisp architectural styling, the keypad smart card reader has an elegantly curved faceplate. The 12-position weatherproof keypad uses discrete switches to provide positive tactile response, optionally reinforced by an audible tone. The keypad also features a waterproof silicone rubber boot, vandal-resistant metal keycaps, and backlit numbering. HID Global’s iCLASS SE® platform goes beyond the traditional smart card model to offer a secure, standards-based and flexible platform that has become the new benchmark for highly adaptable, interoperable and secure access control solutions. Additionally, iCLASS SE readers support mobile devices utilizing Seos, enabling a new class of portable identity credentials that can be securely provisioned and safely embedded into both fixed and mobile devices.
HID Global - 921NMNTEKEA0CA - Features
- Powerfully Secure – Provides layered security beyond the card media for added protection to identity data using SIOs.
- Adaptable – Interoperable with a growing range of technologies and form factors including mobile devices utilizing Seos®.
- Interoperable – Open Supervised Device Protocol (OSDP) for secure, bidirectional communication.
- Versatile - Extended read range is available for applications such as parking and gate control solutions.
- Multi-Layered Security – Ensures data authenticity and privacy through the multi-layered security of HID’s SIO
- EAL5+ Certified Secure Element Hardware – Provides tamper-proof protection of keys/cryptographic operations.
- Secured communications using OSDP with Secure Channel Protocol.
- Expanded iCLASS Elite™ Program – Extends private security by protecting uniquely keyed credentials, SIOs and programming keys
- Mobile device support using iCLASS Seos - enabling HID access control.
- Flexible to support future technologies.
- Field Programmable Readers – Provides secure upgrades for migration and extended lifecycle.
- Intelligent Power Management (IPM) – Reduces reader power consumption by as much as 75% compared to standard operating mode
- Recycled Content – Contributes toward building LEED credits
- SIO Media Mapping – Simplifies deployment of third-party objects to multiple types of credentials
- Industry standard communications using OSDP.
- Custom programming support to read models on MIFARE and MIFARE DESFire EV1 credentials
Specifications
Specifications
HID Global - 921NMNTEKEA0CA - Specifications
| Color | Black |
|---|---|
| Keypad | Yes (4x3) |
| Dimensions | 3.3" x 4.8" x 1.1" ( 8.5 cm x 12.2 cm x 2.8 cm) |
| Product Weight (Pigtail) | 9.0 oz (256g) |
| Product Weight (Terminal Strip) | 8.0oz (226g) |
| Operating Voltage Range | 5-16 VDC |
| Current Draw - Standard Power Mode2 (mA) | 85 @ 16V |
| Current Draw - Intelligent Power Management (IPM) Mode2 (mA) | 60 @ 16V |
| Peak Current Draw - Standard Power or IPM Mode2 (mA) | 220 @ 16V |
| NSC3 Power Consumption - Standard Power Mode | 1.4 @ 16V |
| NSC3 Power Consumption - w/ IPM | 1 @ 16V |
| Operating Temperature | -31º to 150º F (-35º to 65º C) |
| Storage Temperature | -67º to 185º F (-55º to 85º C) |
| Operating Humidity | 5% to 95% relative humidity non-condensing |
| Environmental Rating | Indoor/Outdoor IP55; IP65 if installed with optional gasket |
| Communications | Wiegand, Clock-and-Data, Open Supervised Device Protocol (OSPD) via RS485 |
| Panel Connection | Pigtail or Terminal Strip |
| Cryto Processor Hardware Common Criteria Rating | EAL5+ |
| Housing Material | UL94 Polycarbonate |
| UNSPSC Code | 43211700 |
| Manufacturer | HID Global Corporation |
