Description
Description

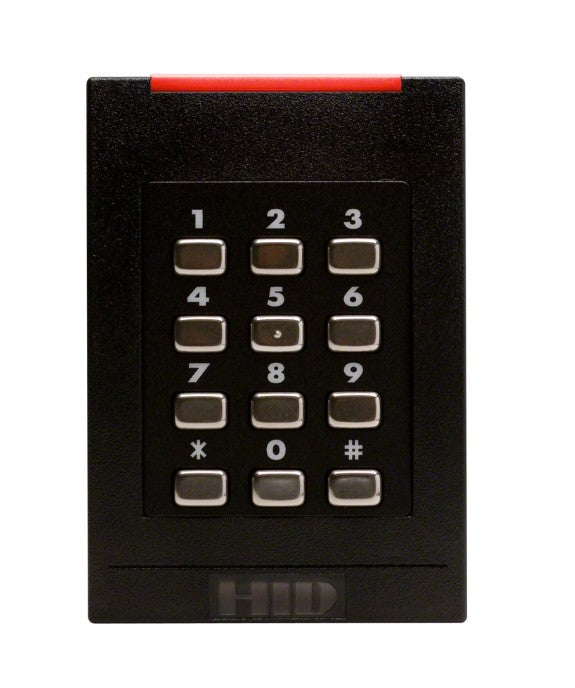

Using 13.56 MHz contactless smart card technology, the iCLASS RK40 keypad smart card reader provides a powerful solution. Combine a contactless card presentation with a personal identification number (PIN) to support dual authentication of identity. Or, configure the panel for single-factor authentication, using only a card or a PIN. The PIN can be verified either at the access control panel or locally by the keypad smart card reader. When verified locally, the PIN must be programmed into the iCLASS card. Featuring crisp architectural styling, the keypad smart card reader has an elegantly curved faceplate. The 12-position weatherproof keypad uses discrete switches to provide positive tactile response, optionally reinforced by an audible tone. The keypad also features a waterproof silicone rubber boot, vandal-resistant metal keycaps, and backlit numbering.
HID Global - 921NNPNEK200YT - Features
- Format Portability - Upgrading is completely transparent since the same Prox format and user identification numbers are brought across to your future iCLASS credentials, including HID Corporate 1000 formats.
- Secure - All RF data transmission between the card and keypad smart card reader is encrypted using secure algorithms. Additionally, security is extended from the reader all the way to the Hi-O enabled access control panel using encrypted Hi-O communication.
- Interoperability - iCLASS is based on international ISO interoperability standards providing compatibility with many popular card technologies (ISO 15693, ISO 14443A and ISO 14443B).
- Optimal Read Range Performance - An auto-tuning feature automatically adjusts the keypad smart card reader for optimal read range performance on any mounting surface.
- OSDP Compliant - Bi-directional multi-dropped communication over RS485 link. For use only with OSDP compliant panels/hosts
- Inside Contactless PicoPass, PicoTag
- 4-bit with parity, 26-bit output, 4-keys with parity and local pin verify.
Specifications
Specifications
HID Global - 921NNPNEK200YT - Specifications
| iCLASS Card | Up to 4” (10.2 cm) |
|---|---|
| iCLASS Key/Tag | Up to 1.25” (3.2 cm) |
| MIFARE / DESFire Card (CSN) | Up to 2” (5.1 cm) |
| Dimensions | 3.3” x 4.8” x 1.1” (8.5 cm x 12.2 cm x 2.8 cm) |
| UNSPSC Code | 43211700 |
| Manufacturer | HID Global Corporation |
