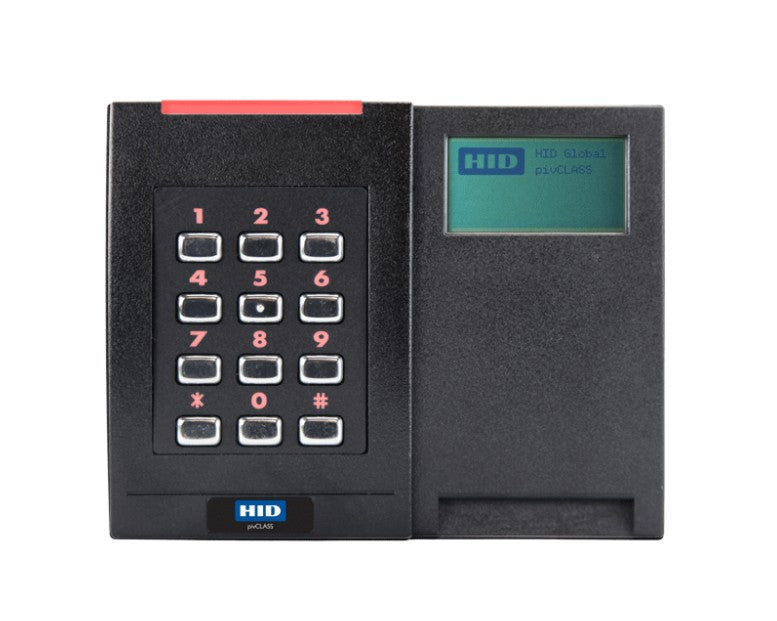

HID 921PHPNEK000UE | pivCLASS RPKCL40-P Smart Card Reader with LCD
Description
Description
HID’s pivCLASS RKCL40 contact, plus contactless dual interface reader is suitable for use in security areas meeting the FIPS-201 criteria for both “Controlled” and “Limited” access. When used in conjunction with HID’s pivCLASS Authentication Module (PAM) or OSDP-compliant strong authentication controller infrastucture, tthe pivCLASS RKCL40 reader provides authentication to help verify that the card being presented is genuine; the data on the card has not been changed or manipulated; the card is not a copy or clone of another card; and the card has not been lost or stolen. When used in Card Authentication Key (CAK) mode, it supports reading any PIV-based card with a contactless interface and containing a CAK certificate. When used in PIV+PIN mode, the reader supports on-card-matching of a PIN, reading and validating the PIV Authentication Key certificate.
HID Global - 921PHPNEK000UE - Features
- The dual interfaces of this reader provide a backup for cases when a card’s contactless antenna is broken. The CAK certificate can also be read using the contact interface
- Configurable to operate in either Wiegand or strong authentication mode (PAM or third-party panel)
- Dynamically switchable authentication modes (using PAM)
- Supports reading legacy cards such as iCLASS®, iCLASS SE™ and standard Prox™
Specifications
Specifications
HID Global - 921PHPNEK000UE - Specifications
| Typical Maximum Read Range | Up to 2” for ISO14443 A cards |
|---|---|
| Dimensions | 4.8” X 6.1” x 1.2” (12.2 x 15.6 x 3.0 cm) |
| Legacy cards supported: | Proximity: HID Prox, AWID and EM4102 |
| 13.56 MHz contactless smart cards supported | PKI-based FIPS 201 credentials including PIV, PIV-I, CIV, CAC, TWIC and FRAC; iCLASS SE, iCLASS SR, standard iCLASS, SE for MIFARE® Classic, SE for MIFARE DESFire® EV1 |
| Supported outputs in Wiegand mode | 40 bits, 64 bits, 75 bit GSA, 128 bit UUIDs, 200 bits full FASCN |
| Protocol | Wiegand mode – Wiegand, Strong Authentication Mode - HID pivCLASS protocol (PAM) or OSDP (works with strong authentication panel infrastructure) |
| UNSPSC Code | 43211700 |
| Manufacturer | HID Global Corporation |
