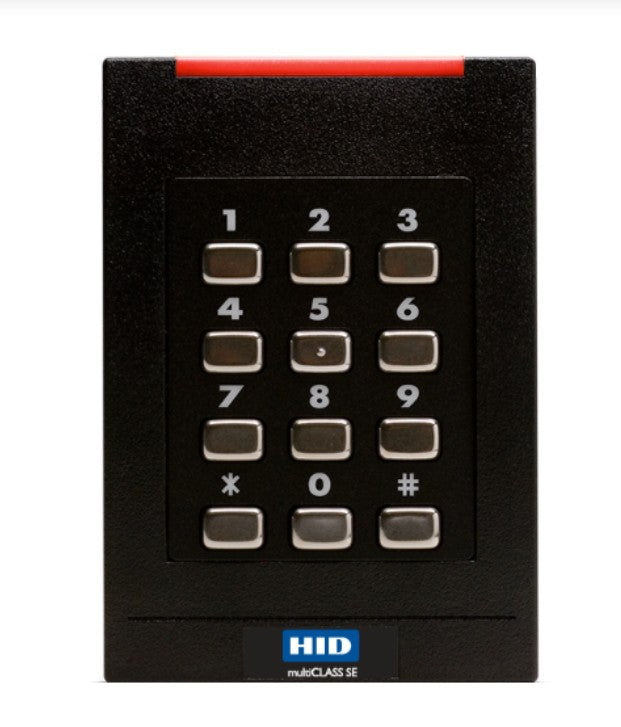

HID 921PMNNEKEA078 | multiCLASS SE RPK40, Contactless Smart Card Reader, Wall Switch keypad
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
HID 921PMNNEKEA078 | multiCLASS SE RPK40, Contactless Smart Card Re...
Description
Description
The multiCLASS SE RPK40 is part of HID Global's iCLASS SE platform for adaptable, interoperable access control. Designed for multi-factor authentication door applications requiring standard wall switch mounting, multiCLASS SE RPK40 supports a broad array of 13.56 MHz high frequency and 125 kHz low frequency credential technologies and a variety of form factors, including cards, fobs and mobile devices. Configurable to support HID Mobile Access®. With a focus on sustainability, iCLASS SE platform readers include intelligent power management that reduces power consumption by as much as 59%.
The technology independent readers also support iCLASS® Seos™ and iCLASS SE credential platforms, as well as standard iCLASS, MIFARE and MIFARE DESFire EV1 with custom data models and other leading technologies. Additionally, multiCLASS SE readers support mobile devices utilizing Seos, enabling a new class of portable identity credentials that can be securely provisioned and safely embedded into both fixed and mobile devices. As part of HID Global’s iCLASS SE platform that is based on the Secure Identity Object™ (SIO®) data model and Trusted Identity Platform® (TIP™), the powerfully secure multiCLASS SE readers offer advanced features such as layered security beyond the card media and tamper-proofprotection of keys/cryptographic operations using EAL5+ secure element hardware.
HID Global - 921PMNNEKEA078 - Features
- Adaptable – Interoperable with a growing range of technologies (iCLASS Seos®, iCLASS SE®, iCLASS®, MIFARE® Classic, MIFARE DESFire® EV1) and form factors including mobile devices.
- Powerfully Secure – The iCLASS SE platform’s Secure Identity Object® (SIO®) data model provides an extra layer of encryption for additional protection of identity data
- Standardized Communications (OSDP) – Uses Open Supervised Device Protocol (OSDP) for secure communications between reader and controller.
- Multi-Layered Security – Ensures data authenticity and privacy through the multilayered security of HID’s SIO.
- EAL5+ Certified Secure Element Hardware – Provides tamper-proof protection of keys/cryptographic operations
- SIO Data Binding – Inhibits data cloning by binding an object to a specific credential
- Secured communications using OSDP with Secure Channel Protocol
- Mobile device support using iCLASS Seos - Enables HID access control
- SIO Portability – Provides technology independence and portability to other smart card technologies
- Upgradeable Hardware Connection – Allows all Wiegand-based communication readers to expand communication capabilities to OSDP and other bidirectional protocols
- Field Programmable Readers – Provides secure upgrades for migration and extended lifecycle
- Customization and management from a central location – Enables organization to make changes and manage all attached OSDP readers over RS485 wiring.
- Support for 125kHz HID Prox, Indala, AWID and EM4102
- Flexible to support future technologies
- Intelligent Power Management (IPM) – Reduces reader power consumption by as much as 75% compared to standard operating mode
- Recycled Content – Contributes toward building LEED credits
- SIO Media Mapping – Simplifies deployment of third-party objects to multiple types of credentials
- Industry standard communications using OSDP
- Custom programming support to read custom data models on MIFARE and MIFARE DESFire EV1 credentials
Specifications
Specifications
HID Global - 921PMNNEKEA078 - Specifications
| Color | Black |
|---|---|
| Keypad | No |
| Dimensions | 3.3" x 4.8" x 1.1" (8.5 cm x 12.2 cm x 2.8 cm) |
| Product Weight (Pigtail) | 9.1oz (258g) |
| Product Weight (Terminal Strip) | 8.0oz (228g) |
| Operating Voltage Range | 5-16 VDC, Linear supply recommended |
| Current Draw - Standard Power Mode (mA) | 95 |
| Current Draw - Intelligent Power Management (IPM) Mode (mA) | 70 |
| Peak Current Draw - Standard Power or IPM Mode (mA) | 220 |
| Power Consumption - Standard Power Mode (W@ 16VDC) | 1.5 |
| Power Consumption - w/ IPM (W @ 16VDC) | 1.1 |
| Operating Temperature | -31º to 150º F (-35º to 65º C) |
| Storage Temperature | -67º to 185º F (-55º to 85º C) |
| Operating Humidity | 5% to 95% relative humidity non-condensing |
| Environmental Rating | Indoor/Outdoor IP55; IP65 if installed with optional gasket (IP65GSKT) |
| Transmit Frequency | 13.56 MHz & 125 kHz |
| 125 kHz Card Compatibility | HID Prox, AWID, Indala, EM4102 |
| Panel Connection | Pigtail or Terminal Strip |
| Cryto Processor Hardware Common Criteria Rating | EAL5+ |
| Patents | US7180403, US7439862, US7124943, US5952935, US6058481, US6337619 |
| Housing Material | UL94 Polycarbonate |
| Manufactured with % of recycled content (Pigtail) | 0.109 |
| Manufactured with % of recycled content (Terminal Strip) | 0.123 |
| UL Ref Numbe | RPK40E |
| UNSPSC Code | 43211700 |
| Manufacturer | HID Global Corporation |
