Brand: Hid - Usa | SKU: 10243295

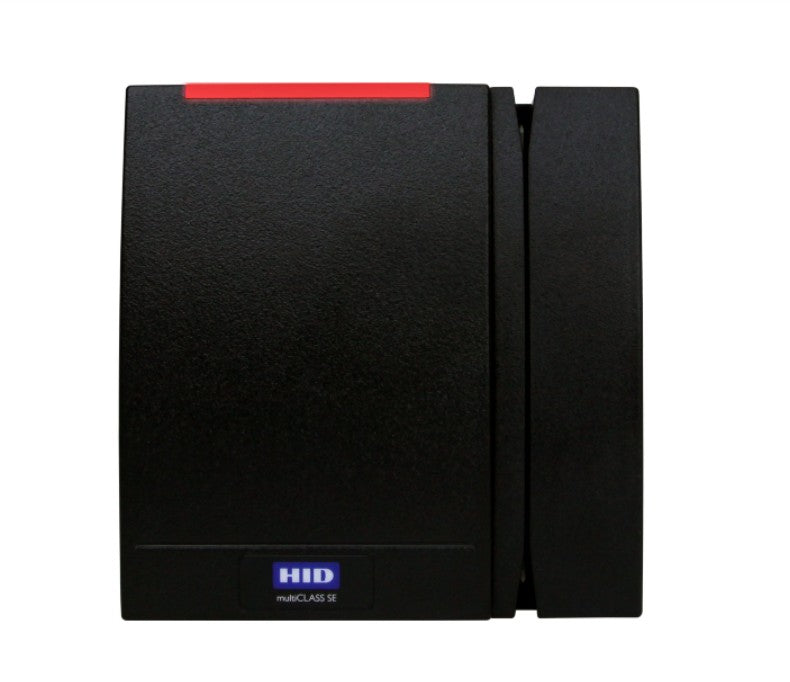

HID 922PTNNEK0018Q | multiCLASS SE RMP40 Smart Card Reader, Wall Switch with Magnetic Stripe

Regular price $418.10
  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

Description

HID Global Corp 922PTNNEK0018Q | Contactless Smart Card Reader, SE RMP40, multiCLASS

The multiCLASS SE RMP40 is part of HID Global's iCLASS SE platform for adaptable, interoperable access control. Designed for door applications requiring standard wall switch mounting with magnetic stripe read capability, multiCLASS SE RMP40 supports a broad array of 13.56 MHz high frequency and 125 kHz low frequency credential technologies and a variety of form factors, including cards and fobs.

HID Global - 922PTNNEK0018Q - Features

  • Adaptable – Interoperable with a growing range of technologies (iCLASS SEOS®, iCLASS SE™, iCLASS®, MIFARE® Classic, MIFARE DESFire®EV1) and form factors.
  • Powerfully Secure – The iCLASS SE platform’s Secure Identity Object® (SIO™) data model provides an extra layer of encryption for additional protection of identity data
  • Standardized Communications (OSDP) – Uses Open Supervised Device Protocol (OSDP) for secure communications between reader and controller.
  • Multi-Layered Security – Ensures data authenticity and privacy through the multi-layered security of HID Global's Secure Identity Object® (SIO®) technology
  • EAL5+ Certified Secure Element Hardware – Provides tamper-proof protection of keys/cryptographic operations.
  • Fully supports the industry's most secure contactless smartcard technologies including iCLASS Seos
  • Secured communications using OSDP with Secure Channel Protocol
  • Supports HID Mobile Access® powered by Seos
  • Field Programmable Readers – Provides secure upgrades for migration and extended lifecycle
  • Flexible to support future technologies.
  • Intelligent Power Management (IPM) – Reduces reader power
  • SIO Media Mapping – Simplifies deployment of third-party objects to multiple types of credentials
  • Custom programming support to read custom data models on MIFARE® Classic and MIFARE DESFire EV1® credentials.

Specifications

HID Global - 922PTNNEK0018Q - Specifications

ColorBlack
KeypadNo
Dimensions4.5" x 4.6" x 1.2" (11.4 cm x 11.8 cm x 3.0 cm)
Product Weight (Pigtail)12.3 oz (348 g)
Product Weight (Terminal Strip)12.1 oz (343 g)
Operating Voltage Range5.5-16 VDC 12VDC for RS-485 configurations
Normal Standby Current Draw130 Ma
Peak Current Draw220 mA
Power Consumption (W @ 16VDC)2.1 W
Operating Temperature-30? to 150? F (-35? to 65? C)
Storage Temperature-67? to 185? F (-55? to 85? C)
Operating Humidity5% to 95% relative humidity non-condensing
Environmental RatingUL 294 Outdoor Rated
Transmit Frequency13.56 MHz & 125 kHz
Panel ConnectionPigtail or Terminal Strip
UNSPSC Code43211700
ManufacturerHID Global Corporation
