Description
Description

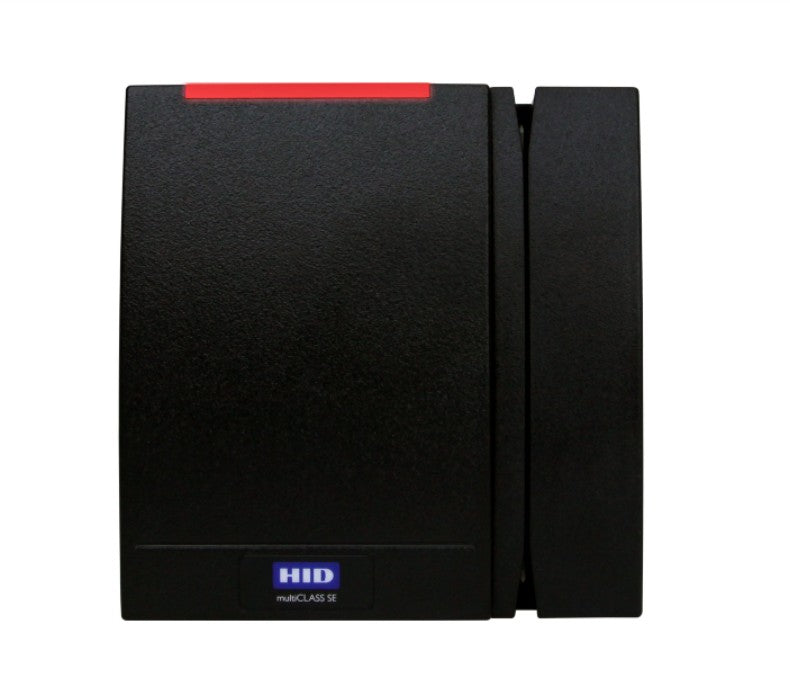

The multiCLASS SE RMP40 is part of HID Global's iCLASS SE platform for adaptable, interoperable access control. Designed for door applications requiring standard wall switch mounting with magnetic stripe read capability, multiCLASS SE RMP40 supports a broad array of 13.56 MHz high frequency and 125 kHz low frequency credential technologies and a variety of form factors, including cards and fobs.
HID Global - 922PTNTEK0001C-RMA - Features
- Adaptable – Interoperable with a growing range of technologies (iCLASS SEOS®, iCLASS SE™, iCLASS®, MIFARE® Classic, MIFARE DESFire®EV1) and form factors.
- Powerfully Secure – The iCLASS SE platform’s Secure Identity Object® (SIO™) data model provides an extra layer of encryption for additional protection of identity data
- Standardized Communications (OSDP) – Uses Open Supervised Device Protocol (OSDP) for secure communications between reader and controller.
- Multi-Layered Security – Ensures data authenticity and privacy through the multi-layered security of HID Global's Secure Identity Object® (SIO®) technology
- EAL5+ Certified Secure Element Hardware – Provides tamper-proof protection of keys/cryptographic operations.
- Fully supports the industry's most secure contactless smartcard technologies including iCLASS Seos
- Secured communications using OSDP with Secure Channel Protocol
- Supports HID Mobile Access® powered by Seos
- Field Programmable Readers – Provides secure upgrades for migration and extended lifecycle
- Flexible to support future technologies.
- Intelligent Power Management (IPM) – Reduces reader power
- SIO Media Mapping – Simplifies deployment of third-party objects to multiple types of credentials
- Custom programming support to read custom data models on MIFARE® Classic and MIFARE DESFire EV1® credentials.
Specifications
Specifications
HID Global - 922PTNTEK0001C-RMA - Specifications
| Color | Black |
|---|---|
| Keypad | No |
| Dimensions | 4.5" x 4.6" x 1.2" (11.4 cm x 11.8 cm x 3.0 cm) |
| Product Weight (Pigtail) | 12.3 oz (348 g) |
| Product Weight (Terminal Strip) | 12.1 oz (343 g) |
| Operating Voltage Range | 5.5-16 VDC 12VDC for RS-485 configurations |
| Normal Standby Current Draw | 130 Ma |
| Peak Current Draw | 220 mA |
| Power Consumption (W @ 16VDC) | 2.1 W |
| Operating Temperature | -30? to 150? F (-35? to 65? C) |
| Storage Temperature | -67? to 185? F (-55? to 85? C) |
| Operating Humidity | 5% to 95% relative humidity non-condensing |
| Environmental Rating | UL 294 Outdoor Rated |
| Transmit Frequency | 13.56 MHz & 125 kHz |
| Panel Connection | Pigtail or Terminal Strip |
| UNSPSC Code | 43211700 |
| Manufacturer | HID Global Corporation |
