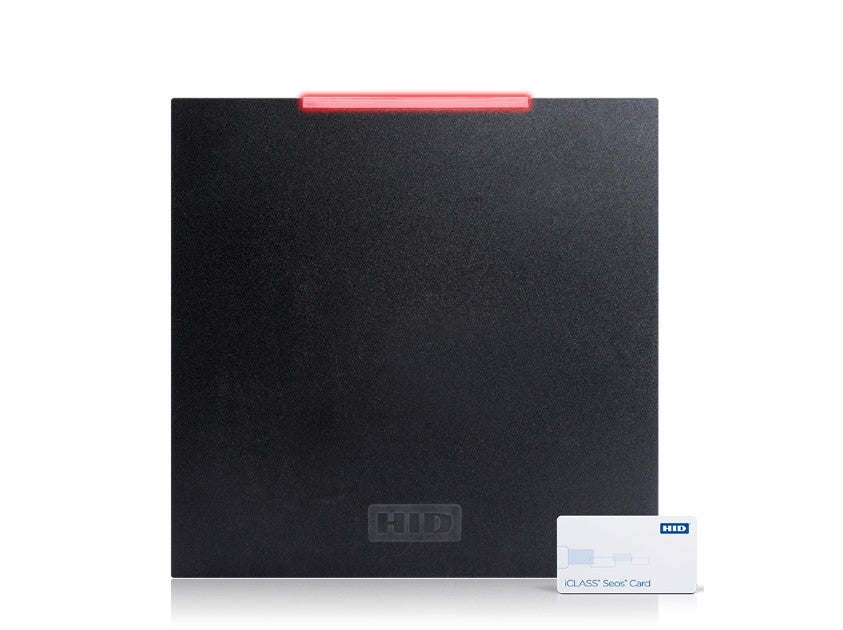

HID 940NTNTEKE0465 | iCLASS® SE R90 Contactless Smart Card Reader, ...
Description
Description
iCLASS SE R90 is part of HID Global's iCLASS SE platform for adaptable, interoperable access control. Designed for vehicle access applications requiring extended read range, iCLASS SE R90 supports a broad array of credential technologies and a variety of form factors, including cards and fobs. As part of HID’s iCLASS SE platform for enhanced security, the readers utilize advanced authentication through the platform’s Secure Identity Object (SIO) data model for trusted and secure communication between the card and reader to help prevent unauthorized access. The iCLASS SE reader line is built on the Security Industry Association (SIA) Open Supervised Device Protocol (OSDP) standard which supports secure transmission of data from the reader to the controller. Additionally, iCLASS SE readers support mobile devices utilizing Seos, enabling a new class of portable identity credentials that can be securely provisioned and safely embedded into both fixed and mobile devices.
HID Global - 940NTNTEKE0465 - Features
- Adaptable – Interoperable with a growing range of technologies (iCLASS Seos® , iCLASS SE, iCLASS®, MIFARE Classic, MIFARE DESFire EV1) and form factors.
- Powerfully Secure – The iCLASS SE platform’s Secure Identity Object® (SIO®) data model provides an extra layer of encryption for additional protection of identity data
- Standardized Communications (OSDP) – Uses Open Supervised Device Protocol (OSDP) for secure communications between reader and controller.
- Multi-Layered Security -Supports data authenticity and privacy through the mulitlayered security of HID's SIO
- EAL5+ certified Secure Element hardware provides protection of keys and cryptographic operations
- Secured communications using OSDP with Secure Channel Protocol
- Expanded iCLASS Elite™ Program – Extends private security by protecting uniquely keyed credentials, SIOs and programming keys
- Mobile device support using iCLASS Seos - enabling HID access control.
- Flexible to support future technologies.
- Field Programmable Readers – Provides secure upgrades for migration and extended lifecycle.
- Intelligent Power Management (IPM) – Reduces reader power consumption by as much as 75% compared to standard operating mode
- Recycled Content – Contributes toward building LEED credits
- Industry standard communications using OSDP
- Custom programming support to read models on MIFARE and MIFARE DESFire EV1 credentials
Specifications
Specifications
HID Global - 940NTNTEKE0465 - Specifications
| Color | Black |
|---|---|
| Keypad | No |
| Dimensions | 13.1" x 13.1" x 1.55" (33.3cm x 33.3cm x 3.9cm) |
| Product Weight (Terminal Strip) | 4lb 1oz (1844g) |
| Operating Voltage Range | 12 VDC or 24 VDC |
| Current Draw - Standard Power Mode2 (mA) | 110 @ 12V |
| Current Draw - Intelligent Power Management (IPM) Mode2 (mA) | 30 @ 12V |
| Operating Temperature | -31º to 150º F (-35º to 65º C) |
| Storage Temperature | -67º to 185º F (-55º to 85º C) |
| Operating Humidity | 5% to 95% relative humidity non-condensing |
| Environmental Rating | IP65 |
| Transmit Frequency | 13.56 MHz |
| Communications | Wiegand, Clock-and-Data, Open Supervised Device Protocol (OSPD) via RS485 |
| Panel Connection | Terminal Strip |
| Cryto Processor Hardware Common Criteria Rating | EAL5+ |
| UNSPSC Code | 43211700 |
| Manufacturer | HID Global Corporation |
Documents and Downloads
Documents and Downloads
