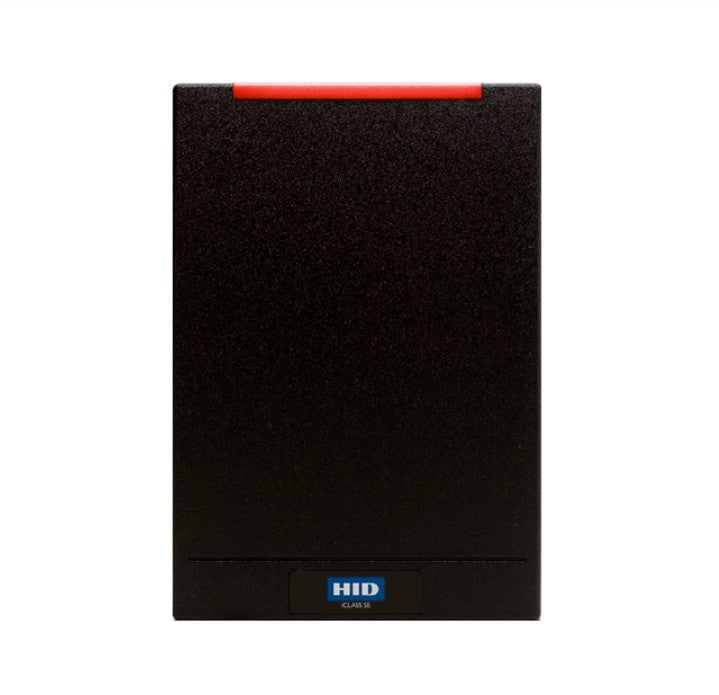

HID Global Corp 920PMPNEKEA135 | Reader RP40 multiCLASS Se
Description
Description
The multiCLASS SE RP40 is part of HID Global's iCLASS SE platform for adaptable, interoperable access control. Designed for multi-factor authentication door applications requiring standard wall switch mounting, multiCLASS SE RP40 supports a broad array of 13.56 MHz high frequency and 125 kHZ low frequency credential technologies and a variety of form factors, including cards, fobs and mobile devices. Configurable to support HID Mobile Access®. With a focus on sustainability, iCLASS SE platform readers include intelligent power management that reduces power consumption by as much as 59%.
HID Global - 920PMPNEKEA135 - Features
- Adaptable – Interoperable with a growing range of technologies (iCLASS Seos®, iCLASS SE®, iCLASS®, MIFARE® Classic, MIFARE DESFire®EV1) and form factors including mobile devices.
- Powerfully Secure – The iCLASS SE platform’s Secure Identity Object® (SIO®) data model provides an extra layer of encryption for additional protection of identity data
- Standardized Communications (OSDP) – Usess Open Supervised Device Protocol (OSDP) for secure communications between reader and controller.
- Multi-Layered Security – Ensures data authenticity and privacy through the multilayered security of HID’s SIO.
- EAL5+ Certified Secure Element Hardware – Provides tamper-proof protection of keys/cryptographic operations
- SIO Data Binding – Inhibits data cloning by binding an object to a specific credential
- Secured communications using OSDP with Secure Channel Protocol.
- Mobile device support using iCLASS Seos - Enables HID access control.
- SIO Portability – Provides technology independence and portability to other smart card technologies.
- Upgradeable Hardware Connection – Allows all Wiegand-based communication readers to expand communication capabilities to OSDP and other bidirectional protocols.
- Flexible to support future technologies
- Intelligent Power Management (IPM) – Reduces reader power consumption by as much as 75% compared to standard operating mode.
Specifications
Specifications
HID Global - 920PMPNEKEA135 - Specifications
| Color | Black |
|---|---|
| Keypad | No |
| Dimensions | 3.3" x 4.8" x 1.0" (8.4 cm x 12.2 cm x 2.4 cm) |
| Product Weight (Pigtail) | 7.8oz (222g) |
| Product Weight (Terminal Strip) | 7.6oz (216g) |
| Operating Voltage Range | 5-16 VDC, Linear supply recommended |
| Operating Temperature | -31º to 150º F (-35º to 65º C) |
| Storage Temperature | -67º to 185º F (-55º to 85º C) |
| Operating Humidity | 5% to 95% relative humidity non-condensing |
| Environmental Rating | Indoor/Outdoor IP55; IP65 if installed with optional gasket (IP65GSKT) |
| Transmit Frequency | 13.56 MHz & 125 kHz |
| Cryto Processor Hardware Common Criteria Rating | EAL5+ |
| UNSPSC Code | 46171500 |
| Manufacturer | HID Global Corporation |
