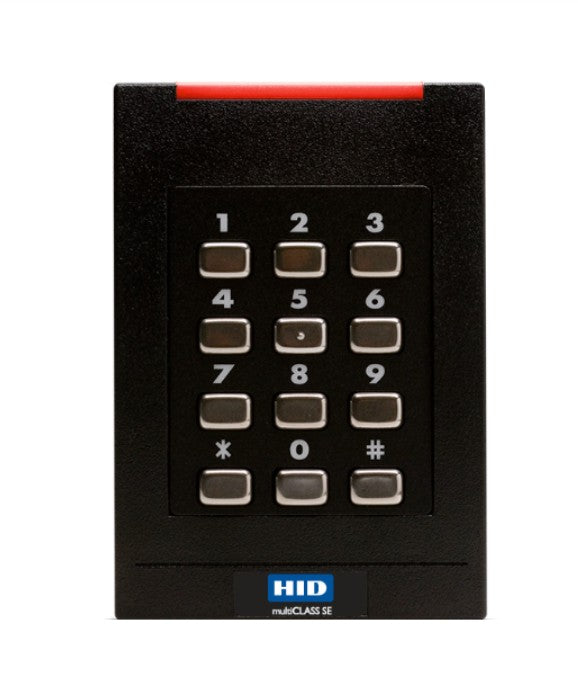

HID Global Corp 921PWPNEKE00VH | Contactless Smart Card Reader, SE Rpk40, iCLASS
The multiCLASS SE RPK40 is part of HID Global's iCLASS SE platform for adaptable, interoperable access control. Designed for multi-factor authentication door applications requiring standard wall switch mounting, multiCLASS SE RPK40 supports a broad array of 13.56 MHz high frequency and 125 kHz low frequency credential technologies and a variety of form factors, including cards, fobs and mobile devices. Configurable to support HID Mobile Access®.
HID Global - 921PWPNEKE00VH - Features
- Adaptable – Interoperable with a growing range of technologies (iCLASS Seos®, iCLASS SE®, iCLASS®, MIFARE® Classic, MIFARE DESFire® EV1) and form factors including mobile devices.
- Powerfully Secure – The iCLASS SE platform’s Secure Identity Object® (SIO®) data model provides an extra layer of encryption for additional protection of identity data
- Standardized Communications (OSDP) – Uses Open Supervised Device Protocol (OSDP) for secure communications between reader and controller.
- Multi-Layered Security – Ensures data authenticity and privacy through the multilayered security of HID’s SIO.
- EAL5+ Certified Secure Element Hardware – Provides tamper-proof protection of keys/cryptographic operations.
- Secured communications using OSDP with Secure Channel Protocol.
- Mobile device support using iCLASS Seos - Enables HID access control.
- Field Programmable Readers – Provides secure upgrades for migration and extended lifecycle.
- Flexible to support future technologies.
- Recycled Content – Contributes toward building LEED credits.
- SIO Media Mapping – Simplifies deployment of third-party objects to multiple types of credentials.
- Industry standard communications using OSDP.
Specifications
Specifications
HID Global - 921PWPNEKE00VH - Specifications
| Color | Black |
|---|---|
| Keypad | Yes (4x3) |
| Dimensions | 3.3" x 4.8" x 1.1"(8.5 cm x 12.2 cm x 2.8 cm) |
| Product Weight (Pigtail) | 9.1oz (258g) |
| Product Weight (Terminal Strip) | 8.0oz (228g) |
| Operating Voltage Range | 5-16 VDC |
| Operating Temperature | -31º to 150º F (-35º to 65º C) |
| Storage Temperature | -67º to 185º F (-55º to 85º C) |
| Operating Humidity | 5% to 95% relative humidity non-condensing |
| Environmental Rating | Indoor/Outdoor IP55; IP65 if installed with optional gasket (IP65GSKT) |
| Transmit Frequency | 13.56 MHz & 125 kHz |
| Cryto Processor Hardware Common Criteria Rating | EAL5+ |
| Housing Material | UL94 Polycarbonate |
| UNSPSC Code | 43211700 |
| Manufacturer | HID Global Corporation |
