Description
Description

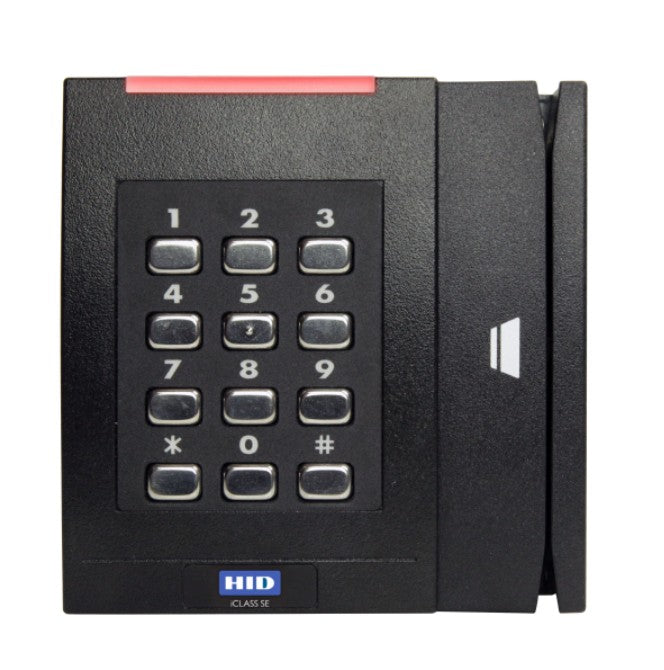

The iCLASS SE RMK40 is part of HID Global's iCLASS SE platform for adaptable, interoperable access control. Designed for mult-factor authentication door applications requiring standard wall switch mounting with magnetic stripe read capability, iCLASS SE RMK40 supports a broad array of credential technologies and a variety of form factors including; cards, and fobs.
HID Global - 925NTNNEK00169 - Features
- Adaptable – Interoperable with a growing range of technologies (iCLASS Seos® , iCLASS SE, iCLASS®, MIFARE® Classic, MIFARE DESFire®EV1) and form factors.
- Powerfully Secure – The iCLASS SE platform’s Secure Identity Object® (SIO®) data model provides an extra layer of encryption for additional protection of identity data
- Standardized Communications (OSDP) – Uses Open Supervised Device Protocol (OSDP) for secure communications between reader and controller.
- Dynamic – Supports future enhancements in access control, including HID Mobile Access powered by Seos® that enables the use of smartphones and other smart devices to open doors
- Multi-Layered Security – Ensures data authenticity and privacy through the multi-layered security of HID Global's Secure Identity Object® (SIO®) technology.
- EAL5+ Certified Secure Element Hardware – Provides tamper-proof protection of keys/cryptographic operations.
- Fully supports the industry's most secure contactless smartcard technologies including iCLASS Seos.
- Secured communications using OSDP with Secure Channel Protocol.
- Supports HID Mobile Access® powered by Seos®
- Field Programmable Readers – Provides secure upgrades for migration and extended lifecycle.
- Flexible to support future technologies
- Support for magnetic stripe and 125kHz HID Prox, AWID and EM4102
- Recycled Content – Contributes toward building LEED credits
Specifications
Specifications
HID Global - 925NTNNEK00169 - Specifications
| Keypad | Yes (4x3) |
|---|---|
| Dimensions | 4.5" x 4.6" x 1.2" (11.4 cm x 11.8 cm x 3.0 cm) |
| Product Weight (Pigtail) | 12.0 oz (341 g) |
| Product Weight (Terminal Strip) | 11.8 oz (336 g) |
| Operating Voltage Range | 5.5-16 VDC |
| Normal Standby Current Draw | 130 mA |
| Power Consumption | 220 mA |
| Operating Temperature | -30? to 150? F (-35? to 65? C) |
| Storage Temperature | -67? to 185? F (-55? to 85? C) |
| Operating Humidity | 5% to 95% relative humidity non-condensing |
| Environmental Rating | UL 294 Outdoor Rated |
| Transmit Frequency | 13.56 MHz & 125 kHz |
| Housing Material | UL94 Polycarbonate |
| UNSPSC Code | 43211700 |
| Manufacturer | HID Global Corporation |
