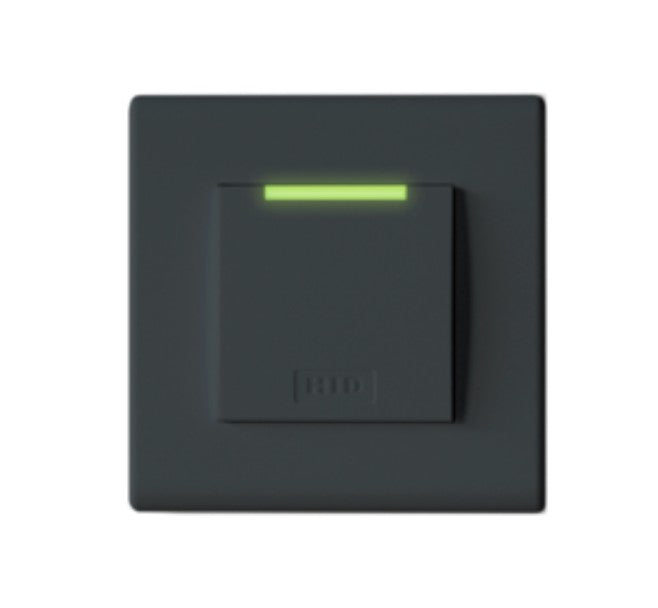

The iCLASS SE® Decor reader is a flush-mounted or inset reader designed to meet the security needs of an organization, while providing a sleek new design for various architectural and style requirements. Ideal for new and existing installations, the iCLASS SE Decor reader provides customers the assurance that their existing investments can be leveraged to enhance their system as business requirements change. The technology-independent reader supports HID Mobile Access®, Seos®, iCLASS SE, standard iCLASS®, MIFARE®, MIFARE DESFire® EV1/EV2 credentials and legacy HID Proximity and EM Proximity. Additionally, the Decor reader can be used with multiple form factors, including smartphones and other mobile devices utilizing Seos. This enables a new class of portable identity credentials that can be securely provisioned and safely embedded into both fixed and mobile devices. The reader is part of HID Global’s iCLASS SE® platform that is based on HID’s Secure Identity Object™ (SIO®) data model and Trusted Identity Platform® (TIP™). The standards-based and flexible platform goes beyond the traditional smart card model and is designed to offer highly adaptable, interoperable and secure access control solutions. The iCLASS SE Decor reader offers advanced features such as multi-layered security beyond the card media and protection of keys/ cryptographic operations using EAL5+ secure element hardware.
HID Global - 95BPMNTEGMA003 - Features
- Stylish form factor with flush mounting – designed to fit within a standard wiring boxusing a snap on front bezel and faceplate that is flush with the surface of the wall
- Adaptable – Interoperable with HID Mobile Access®, and a growing range of formfactors and technologies (Seos®, iCLASS SE®, standard iCLASS®, MIFARE®, MIFAREDESFire® EV1/EV2 with custom data models, HID Proximity and EM Proximity).
- Seamless upgrades – Readers are field programmable, providing secure upgrades formigration and extended lifecycle.
- Standardized communications – Includes Open Supervised Device Protocol (OSDP)for secure, bidirectional communication.
- Provides secure upgrades formigration and an extended life cycle
- Supports mobile access applications
- Features field programming capability with enhanced functionality for future applications
Specifications
Specifications
HID Global - 95BPMNTEGMA003 - Specifications
| Keypad | No |
|---|---|
| Operating Voltage Range | 5-16 VDC, Linear supply recommended |
| Current Draw | 75mA (R95B), 90mA (RP95B) |
| Operating Temperature | -15° to 150° F (-25° to 65° C) |
| Storage Temperature | -67° to 185° F (-55° to 85° C) |
| Operating Humidity | 5% to 95% relative humidity non-condensing |
| Transmit Frequency | 13.56MHz (R95B), 13.56 MHz, 125kHz (RP95B), 2.4 - 2.480 GHz (BLE) |
| Crypto Processor Hardware CommonCriteria Rating | EAL5+ |
| Housing Materia | UL94 Polycarbonate |
| UNSPSC Code | 43211700 |
| Manufacturer | HID Global Corporation |
