Hid - Usa 20KHTKS030005N1 | Signo 20K PIV Reader with keypad, Black...
Description
Description

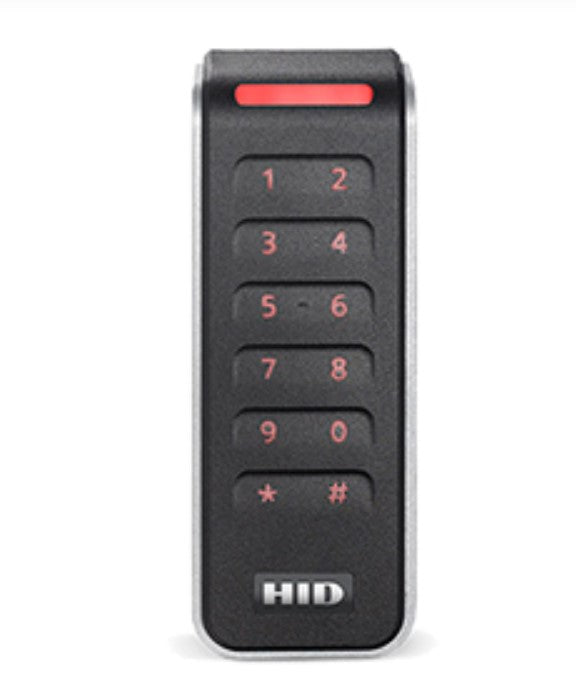

The HID Signo 20K PIV Reader offers an ideal form-factor for installations requiring a narrow profile multi-factor authentication reader with keypad. Based on the Signo platform, it reads any PIV-based card with a contactless interface that also contains a Card Authentication Key (CAK) certificate when used in combination with the HID Global pivCLASS Authentication Module (PAM) or pivCLASS Embedded Authentication.
HID Signo PIV readers extend the HID tradition of best-in-class performance and meet government specifications for high assurance. As part of an integrated solution from a single trusted provider, HID Signo PIV readers enable strong authentication, FIPS 201 compliance and are designed to be highly versatile, powerful, and connected for the future.
With HID Global’s pivCLASS solutions enabled readers, the U.S. federal government, government contractors and other facilities benefit from the broadest product line of trusted, fully-interoperable secure identity solutions in the market.
Hid - Usa - 20KHTKS030005N1 - Features
- Highly Versatile - Support for the widest range of PKI-Based FIPS-201 credentials including PIV, PIV-I, CIV, CAC, TWIC and FRAC.
- Unparalleled Performance - As a component of the HID pivCLASS® solution, Signo PIV readers meet the assurance level requirements defined in NIST Special Publication 800-116 and feature enhanced read-range and speed for faster card transactions.
- Connected to the Future - Signo PIV readers are compatible with legacy HID PIV Solutions offering investment protection while enabling a vast number of integrations with PACs head-end systems to provide flexibility and choice.
Specifications
Specifications
Hid - Usa - 20KHTKS030005N1 - Specifications
| Brand Name | Hid - Usa |
|---|---|
| Manufacturer Part Number | 20KHTKS030005N1 |
| Base Model | 20K |
| Form Factor | Wall Switch |
| 13.56 MHz Credential Compatibility | PKI-Based FIPS-201 Credentials including PIV, PIV-I, CIV, CAC, TWIC and FRAC, Secure Identity Object (SIO) on iCLASS Seos, iCLASS SE, MIFARE DESFire EV1 and MIFARE, Classic standard iCLASS Access Control Application ISO14443A (MIFARE) CSN |
| 125 kHz Credential Compatibility | HID Proximity, EM4102 Proximity, AWID |
| Mounting | Mullion, single or double-gang switch box |
| Connector Type | Pigtail Cable – 18 inch (0.5 m), Terminal Block – flush mount |
| Color | Black Bezel / Silver Trim (Black Trim available as an accessory} |
| Material Housing | Polycarbonate – UL94 V0 rated |
| Operating Voltage Range | 12 VDC |
| Current Draw (max) | 250 mA |
| Device Input & Output | Input: Tri-color LED, Buzzer, Hold, Output: Tamper Relay |
| Operating Temperature Range | -35° C to +66° C (-31° F to +150° F), 0% to 95% non-condensing |
| Storage Temperature Range | -40° C to +85° C (-40° F to +185° F) |
| Environmental Rating | UL294 Outdoor and Indoor rated |
| Ingress Protection | IP65 |
| Controller Communication | Full duplex supports HID pivCLASS protocol, Half duplex supports OSDP and HID pivCLASS protocol . Wiegand, Clock & Data integrated into base hardware. |
| Cable Distance | RS485 for communication (500 ft [152m], 22AWG), (300 ft [91m], 24AWG); two wires for power (500 ft [152m], 22AWG) |
| Device Management | HID Reader Manager, OSDP configuration |
| Intelligent Power Mode | Yes |
| Velocity Attack Detection | Yes |
| Metal Environment Optimization | Yes – surface detection feature automatically calibrates read range |
| FIPS-201 Outputs | Wiegand and OSDP: CHUID & UUID outputs per reader configuration. CAK, SM Auth, High Assurance Authentication and PKI supported when connected to a pivCLASS Authentication Module (PAM) or controller using HID pivCLASS Embedded Authentication. |
| Certifications | FIPS-201 & FICAM Certified 2 , UL294, FCC, CB, CE, - see www.hidglobal.com/certifications |
