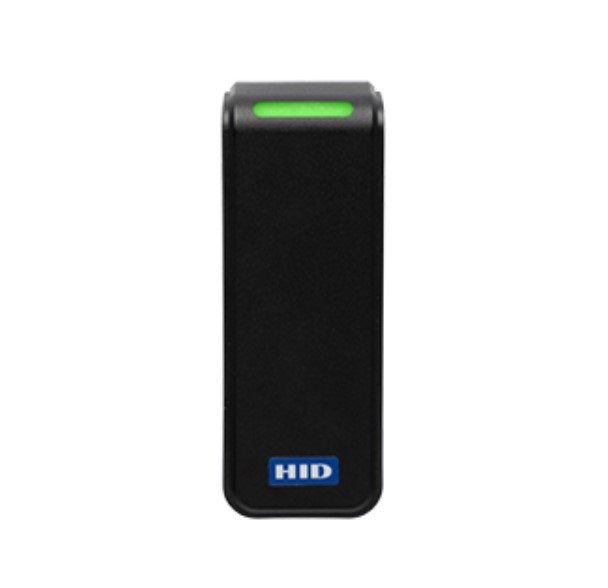

HID Signo Express Readers distill the essential capabilities from the signature Signo line to deliver a simplified and cost-effective solution for secure physical access control.
A perfect fit for door applications requiring a narrow card reader, HID Signo Express is designed to simplify the selection process and offers a cost-effective fixed configuration that combines HID Seos® physical card credential compatibility with Bluetooth® Low Energy and near-field communication (NFC) technologies to support HID Mobile Access®.
Hid - Usa - 20XTKKX0000000 - Features
- Flexible, cost-effective platform — refined pricing options for situations where only the essential capabilities for physical access are needed
- Up and running in minutes — available in a limited set of default configurations that are ready to go onto the wall, straight out of the box
- Remarkable Seos performance — optimized to deliver the best user experience on physical cards or mobile credentials
Specifications
Specifications
Hid - Usa - 20XTKKX0000000 - Specifications
| HID Signo Reader Model | 20 Express |
|---|---|
| 2.4 GHz (Bluetooth) Credential Compatibility | Mobile Credentials powered by Seos (HID Mobile Access) |
| 13.56 MHz (NFC) Credential Compatibility | Seos, MIFARE® Classic®, MIFARE DESFire® EV1/EV2/EV3 (CSN/UID read only) |
| Typical Read Range | Seos Single Technology Cards - 1.6 in (4 cm) |
| Mounting | Suited for mullion-mount door installations or any flat surface mounting |
| Color | Black bezel with black trim baseplate |
| Dimensions (width x length x depth) | 1.77 in x 4.78 in x 0.77 in (45 mm x 121.5 mm x 19.5 mm) |
| Product Weight | 3.35 oz (95 g) |
| Operating Voltage | 12V DC |
| Current Draw | NSC5: 60 mA, Peak: 250 mA, Max. Avg: 70 mA, IPM6: 45 mA |
| Device Input and Output | Input: Tricolor LED, Buzzer, Hold @ Active Low, Output: Tamper Relay 0-60V DC @ 100mA Max (Dry Contact) |
| Operating Temperature & Humidity | -31° F to +150° F (-35° C to +66° C), 0% to 95% non-condensing |
| Storage Temperature | -40° F to +185° F (-40° C to +85° C) |
| Environmental Rating | g UL294 Outdoor and Indoor rated, IP65 |
| Transmit Frequency | 13.56 MHz, and 2.4 GHz |
| Communications & Panel Connection | Wiegand, Terminal Connection |
| Device Management | HID Reader Manager |
| Security Ratings | EAL 5+ Certified Secure Element Hardware |
| Housing Materials | Polycarbonate – UL94 V0 |
| UL Reference Number | 20 |
| Warranty | Limited Lifetime |
